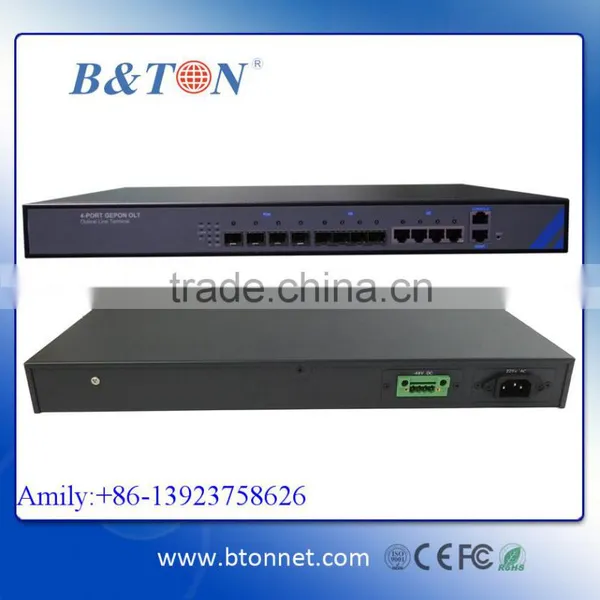

1U High 19inch Rack Mount 4PON Port EPON optical line terminal OLT Pizza Box
Pizza-Box OLT series products is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in an compact room environment
The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high cost performance products
4PON Ports 1U Pizza-Box OLT provides 4GE(copper) and 4SFP slots Combo interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio
Item | 4 PON Ports OLT | 8 PON Ports OLT | ||
Chassis | Rack | 1U 19 inch standard box | 1U 19 inch standard box | |
Slots | NA | NA | ||
Uplink Port | QTY | 8 | 16 | |
Copper | 10/100/1000M auto-negotiable,RJ45:8pcs | 10/100/1000M auto-negotiable,RJ45:8pcs | ||
SFP | 4 SFP slots(Combo) | 8 SFP slots(Combo) | ||
PON Port | QTY | 4 | 8 | |
Physical Interface | SFP Slots | SFP Slots | ||
Connector Type | 1000BASE-PX20 | 1000BASE-PX20 | ||
Max splitting ratio | 1:64 | 1:64 | ||
Management Ports | 1*100BASE-TX outband port 1 CONSOLE port | |||
PON Port Specification (Apply to C-Data Pon module) | Transmission Distance | 20KM | ||
PON port speed | Symmetrical 1.25Gbps | |||
Wavelength | 1490nm TX,1310nm RX | |||
Connector | SC/PC | |||
Fiber Type | 9/125μm SMF | |||
TX Power | +2~+7dBm | |||
Rx Sensitivity | -27dBm | |||
Saturtion Optical Powr | -6dBm | |||
Management Mode | SNMP, Telnet, and CLI management mode. | |||
Management Function | Fan Group Detecting Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management Alarm management | |||
Layer-two Switch | Support port VLan and protocol Vlan Support Vlan tag/Untag ,vlan transparent transmission; Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port ,VID,TOS and MAC address IGMP Snooping 802.x flow control Port stability statistic and mornitoring | |||
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
