Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > FTTH HGU 4*10/100Mbps/4GE+2POTS+WIFI Huawei FTTH GPON EPON ONU ONT Modem

FTTH HGU 4*10/100Mbps/4GE+2POTS+WIFI Huawei FTTH GPON EPON ONU ONT Modem

US$ 60 - 95 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

BT-Gpon-614-2

Contact Supplier Request Quote Chat Now

Shenzhen Bton Weiye Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name BT

Model Number BT-Gpon-614-2

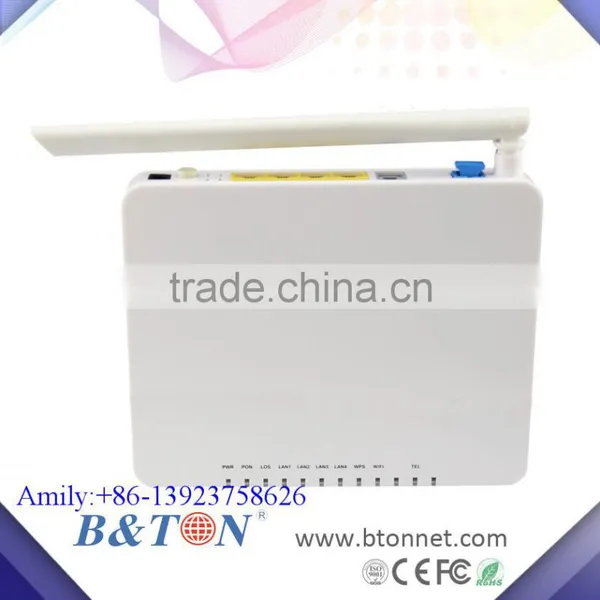

FTTH HGU 4*10/100Mbps/4GE+2POTS+WIFI Huawei FTTH GPON EPON ONU ONT Modem

614HW GPON HGU ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, voice andvideo service based on the GPON network

Product Description

614HW provide two POTS ports, four FE auto-adapting Ethernet ports and one 802.11 n/b/g WiFi port. The FD614HW features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the FD614HW provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.

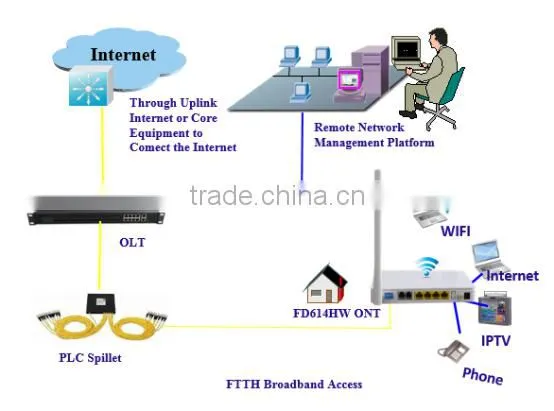

Application&solution

Typical Access Solution: FTTH, FTTB+LAN and FTTB+EOC
Typical Service: Broadband Access, IPTV, VOD and CCTV

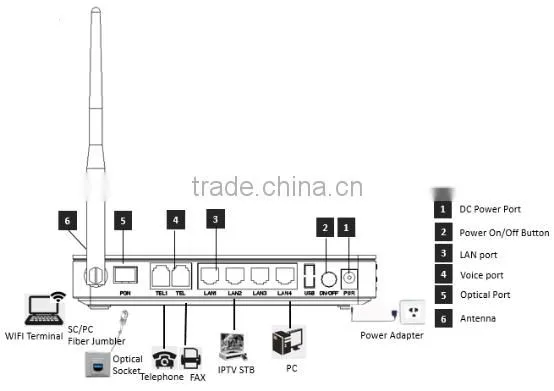

Indicator			Description
1	WIFI	WIFI	Blinking:Data is being transmitted On:Wi-Fi function Opens
2	LOS	GPON optical signals	On: Optical power lower than receiver sensitivity ; Off: Optical in normal
3	PON	ONT Register	On: Success to register to OLT; Blinking: In process of registering to OLT; Off: In process of registering to OLT;
4	TEL	Telephone port status	On:The connection between the TEL port and the voice server has been set up Blinking:The voice service of the TEL port is established; Off:The connection between the TEL port and the voice server is not set up.
5	LANn	LAN port status	On: Ethernet connection is normal; Blinking: Data is being transmitted through the Ethernet port; Off: Ethernet connection is not set up;
6	PWR	Power status	On: The ONT is power on; Off: The ONT is Power off;

Item	Parameters	Specification
Interface	PON Port	1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128
	Ethernet Port(LAN)	4*10/100M Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter
	POTS Port	2*RJ11 with 3REN Max 1km distance Balanced Ring, 55V RMS
	Power Supply Port	12V DC input
Management	NetworkManagement	Standard compliant OMCI interface as defined by ITU-T G.984.4 Support TR069 and WEB management
Management	Management Function	Status monitor, Configuration management, Alarm management, Log management
Environmental Specifications	Shell	Plastic casing
	Power	External 12V 1A AC/DC power supply adapter Power consumption: <7W
	Dimensions	170mm(L)130mm(W)30mm(H) 0.3kg
	Environment	Operating Temperature:0~45℃ StorageTemperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) StorageHumidity:10%~90%(Non-condensing)
