Place of Origin Guangdong, China
Brand Name Bton
Model Number BT-104B
Product Description

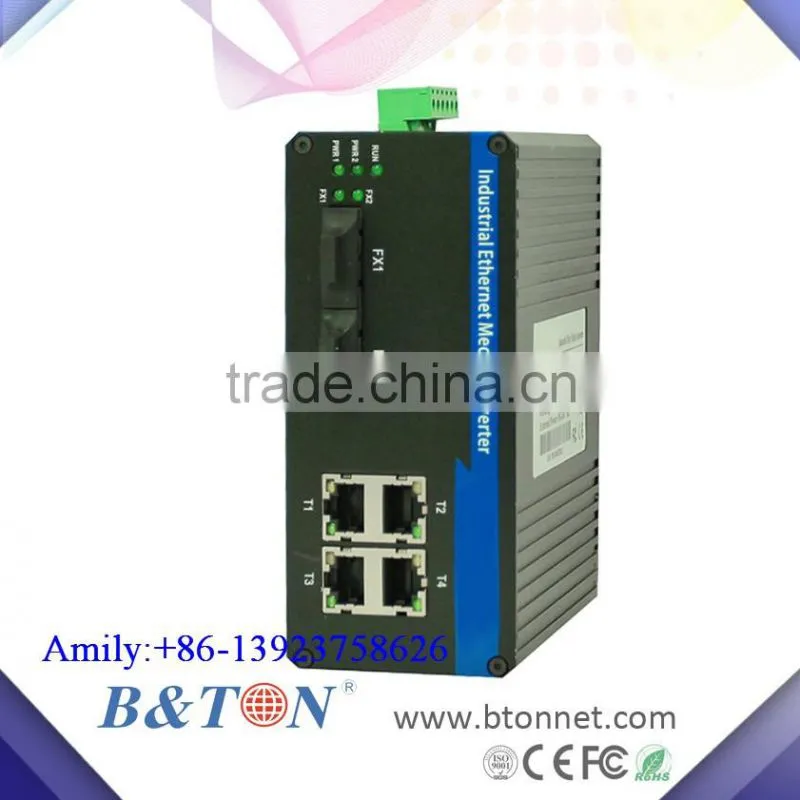

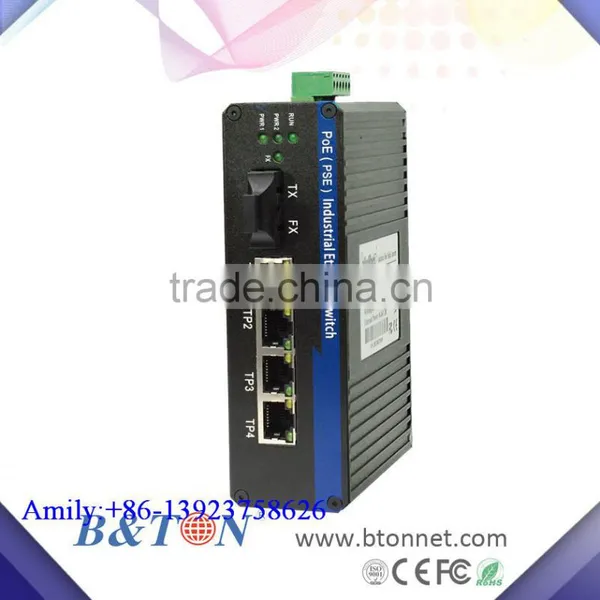

1Fiber to 4 RJ45 port 10/100M Unmanaged Industrial Optical Fiber PoE Switch

This unmanaged Ethernet PoE switch is specialized for harsh industrial environment. It is classified as power resource equipment, which can be used to power IEEE 802.3af/at compliant powered devices, eliminates the need of additional wiring.

With simple operation, excellent quality and competitive price, it provides an economical solution for your industrial Ethernet network, which is also specially designed for the needs of multiplex broadband access with limited optical fibers.


Features & Benefits
4 IEEE 802.3af/at PoE compliance 10/100Base-T(X) ports and 1 100Base-SX/LX/LH/ZX port
Up to 30W at 48V DC power output on each PoE port
Super lightening protection, IP40 protection
Excellent heat elimination without cooling fan
Redundant dual DC power inputs
-40℃-85℃ operating temperature range
Switch Properties
MAC Table Size: 2K
Packet Buffer Size: 6K*64 bit
Processing Type: Store and Forward
Exchange Properties: 148800pps (100M)
Physical Characteristics
Housing: Aluminum Alloy material with IP40 Protection
Dimension: 138mm(L) X 112mm(W) X 42mm(H)
Weight: 470g
Installation: Din-Rail mounting, Wall mounting
MAC Table Size: 8K
Packet Buffer Size: 1M bit
Interfaces
4 RJ45 Ports
Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at PoE,
10/100/1000Base-T(X) auto negotiation speed
Full/Half duplex mode
Auto MDI-MDI-X connection
Up to 100M Cat-5 transmission distance
1 Fiber Port
Comply with IEEE802.3u, 100Base-SX/LX/LH/ZX
Rate: 1000Mbps
Wavelength: 850nm/1310nm/1550nm
Up to 550M transmission distance with multi-mode
Up to 20Km,40Km,60Km,80Km transmission distance with single-mode
SC/LC interfaces optional
Power
Input Voltage: 24V DC(18-36VDC) Redundant dual inputs
Input Current: <0.5A @24VDC
Overload Current Protection: Present
Reverse Polarity Protection: Present
Redundant Protection: Present
Power
Input Voltage: 24V DC(18-36VDC) Redundant dual inputs
Input Current: <0.5A @24VDC
Overload Current Protection: Present
Reverse Polarity Protection: Present
Redundant Protection: Present
Connection: 1 removable 6-pin terminal blocks
Environmental Limits
Operating Temperature: -40℃-85℃
Storage Temperature: -40℃-85℃
Ambient Relative Humidity: 5%-95% (non-condensing)
Technology
Protocol: BT-Ring, IGMPv1/v2, GVRP, SNMPv1/ v2C/ v3, DHCP Client, TFTP, SMTP, RMON, HTTP,
HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Service/ Client, PVLAN
MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB
Group 1,2,3,9
Flow Control: IEEE 802.3x flow control, back pressure flow control
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
EMS:
EN61000-4-2 (ESD)，Level 3
EN61000-4-3 (RS)，Level 3
EN61000-4-4 (EFT)，Level 3
EN61000-4-5 (Surge)，Level 3
EN61000-4-6 (CS)，Level 3
EN61000-4-16(Common-mode Conduction)，Level 3
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A
Industry: IEC61000-6-2
Rail: EN50155, EN50121-4
Traffic: NEMA TS-2
Warranty
5 years
Models Available
Model No
Description
Dual Fiber
BT-GYFP104BM
multi-mode; 2Km; SC/LC interfaces optional
BT-GYFP104BS20
Single-mode; 20Km; SC/LC interfaces optional
BT-GYFP104BS40
Single-mode; 40Km; SC/LC interfaces optional
BT-GYFP104BS60
Single-mode; 60Km; SC/LC interfaces optional
BT-GYFP104BS80
Single-mode; 80Km; SC/LC interfaces optional
Single Fiber
BT-GYFP104BSF/20
Single-mode; 20Km; SC/LC interfaces optional
BT-GYFP104BSF/40
Single-mode; 40Km; SC/LC interfaces optional
BT-GYFP104BF/60
Single-mode; 60Km; SC/LC interfaces optional
BT-GYFP104BSF/80
Single-mode; 80Km; SC/LC interfaces optional
Detailed Images

Features

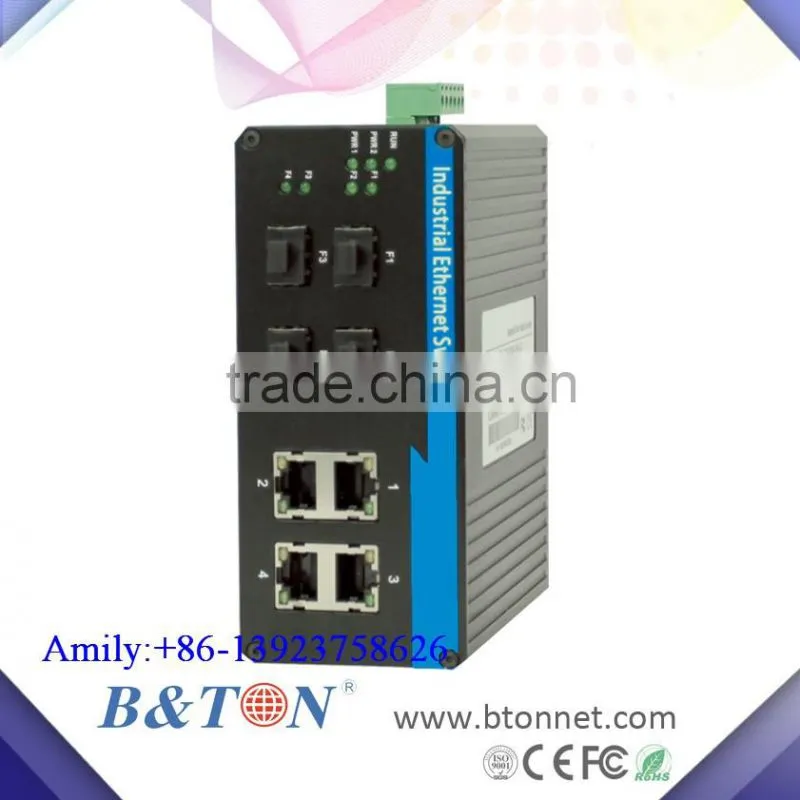

4 10/100Base-T(X) ports and 4 100Base-FX ports

5.Dimension

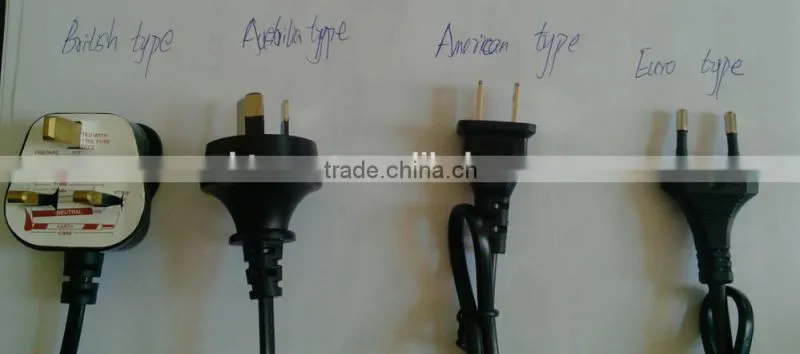

Power Charger type

British type,Amercian type,European type,Austrilia Type

Dimension
Related Products

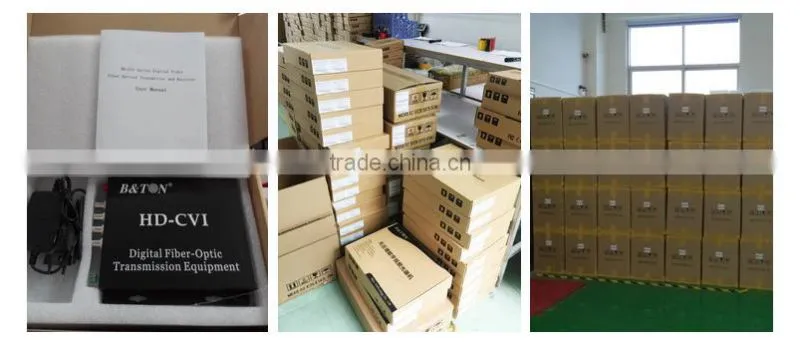

Packing & Delivery
Our Company

Shenzhen BTON Weiye Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules .All of these products are widely applied in many industries like telecom ,traffic, government organization, campus network ,oil industry, electric power system, and public security etc. B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China
