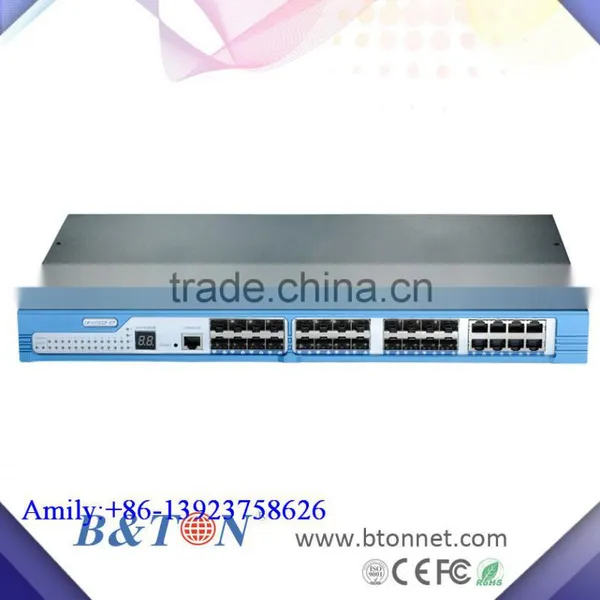

24x 10/100/1000M SFP PoE Ports+4x 10/100/1000M RJ45(25.5W)POE Industrial Ethernet Switch
BT-GY3332F is an enhanced IPv6 Ethernet switch, with advanced hardware processing power and the most abundant business features.The whole machine adopts modular design, support IPv4 / IPv6 hardware double stack and line speed forward, making the looming calmly to IPv6 era with high exchange capacity, the capacity of product adopts fanless design, conform to the industrial standard, satisfy the requirement of strong electromagnetic interference environment trouble-free, its rich business characteristics, simple and convenient WEB visual management, can be widely used in electric power automation, traffic control systems, industrial automation and other bad environment of the core layer and layer Poly layer.
Feature:
BT-GY3332F Provide 24*1000Mbps SFP Slot, to meet different networking requirements.
BT-GY3332F base on VCore-III MIPS-based CPU strong, stable handling capability;
BT-GY3332F provide up to 256Gbps switching capacity, all the port wire-speed filtering Forwarding 96Mpps;
Ensure the backbone network of large flow of data non-blocking forwarding.

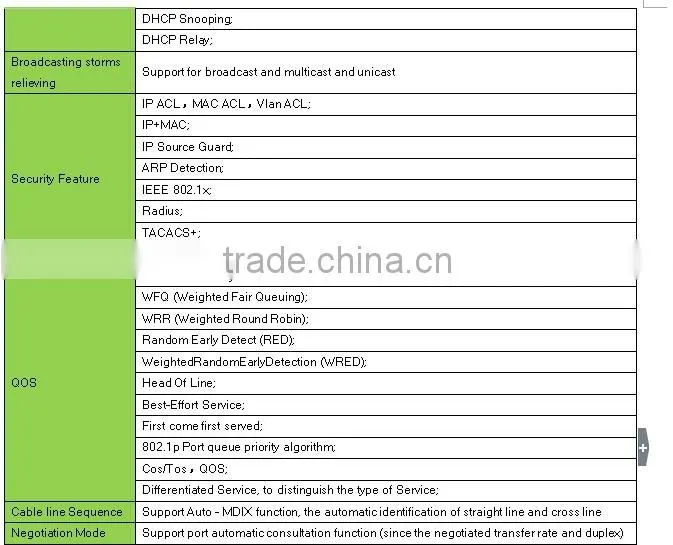

BT-GY3332F support for users of the port IP+MAC address verification、base on the port 802.1X authentication、remote Radius、TACACS+ authentication，support IP ACL、MAC ACL、Vlan ACL、support base on 3, 4 layers of ACL function，effective defense ARP attack and virus, support the perfect storm control function, to broadcast, multicast and unicast to inhibit storm. Support user classification management and password protection, access control, and a full range of security control strategy, ensure real-time and effective network security strategy.
BT-GY3332F by CPU protection strategy for the message sent to the CPU flow classification and flow speed, to avoid illegal attack message attack and resource consumption of CPU;

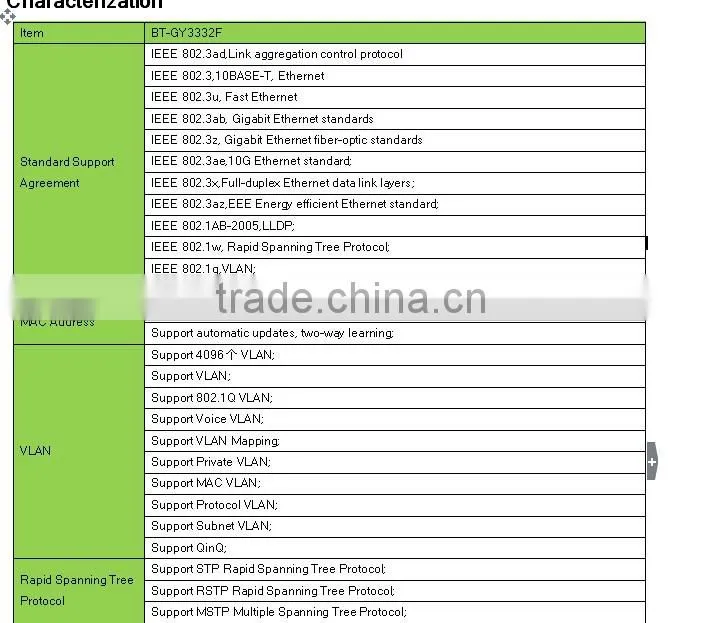

Support the STP, RSTP, MSTP multiple spanning tree protocol, such as fast convergence, improve the fault-tolerant ability, ensure the stable operation of the network and link load balancing, reasonable use the Internet channel, improve the redundancy link utilization;
Support industrial Ethernet ring network protocol ERPS, provide the rearrangement of the millisecond fast business performance, guarantee the continuity of the business. Simple, reliable and agreement, rearrangement of high performance, easy maintenance, flexible topology, can greatly facilitate users for network management and planning;
The industrial level switch power supply, with lightning protection design, prevent overvoltage, storm surge, can adapt to a wide range of 90 ~ 264 v voltage, guarantee in bad weather and unstable voltage nature environment under the normal operation of the network.

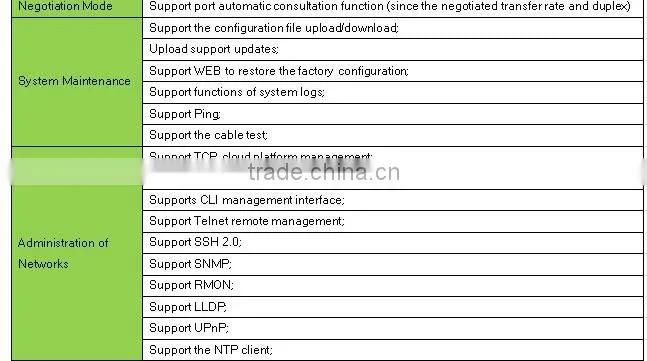

Administration and Maintenance
Through a simple visual WEB interface (support HTTP and HTTPS protocol), various functions of switches may be a simple and convenient operation;
Configuration of equipment support SNMP management, provide convenience for small and medium-sized enterprise customer focus equipment management;
Support the CLI command line and remote Telnet management, suitable for professional network management personnel;
Support SSH2.0 such as encryption, making management more secure;
Support the PDP, LLDP agreement, make the network management more simple
Support the clock protocol (NTP), can be automatically synchronized network time;
Support port to restore the factory Settings, making maintenance easier;
Support TGCP cloud platform, unified management, innovation of type 360 network diagnosis;
Follow the IEEE 802.3 az (Energy Efficient Ethernet Ethernet) of Energy efficiency, provide port low-power idle mode, according to cable length accordingly output power adjustment, and support the connection port free dormancy, significantly reducing power consumption.
Features
4 10/100Base-T(X) ports and 4 100Base-FX ports
Power Charger type
British type,Amercian type,European type,Austrilia Type
Shenzhen BTON Weiye Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules .All of these products are widely applied in many industries like telecom ,traffic, government organization, campus network ,oil industry, electric power system, and public security etc. B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China
