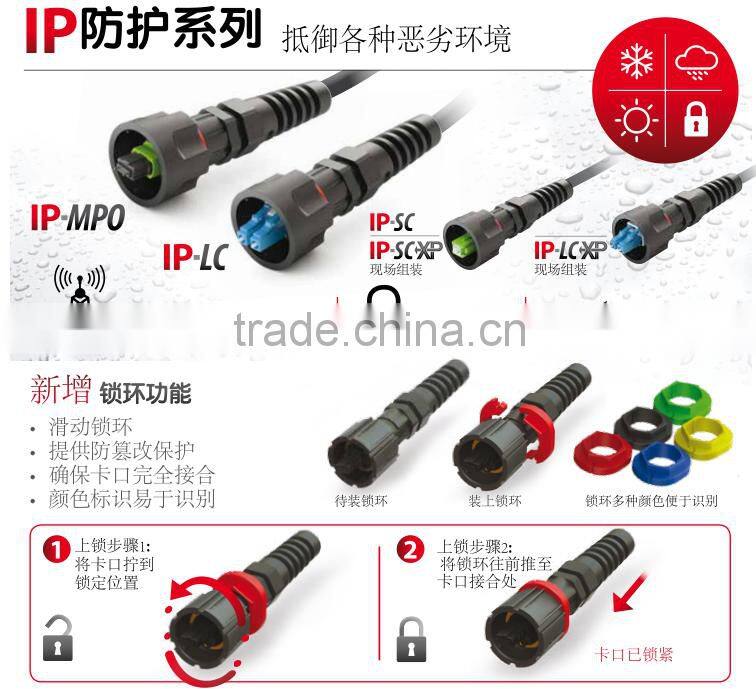

ODVA -LC Duplex IP67 Fiber Optic Cable Sealed Circular LC Duplex ODVA Patch Cord ,RRU(RRH) and Baseband Unit
US$ 2.9 - 4.2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bton
Model Number:
BT-ODVA-LC
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FULLAXS LC Duplex Armoured SM Waterproof Fiber Optical Patch CordUS$ 2.9 - 4.2MOQ: 100 Pieces -
Outdoor FTTA IP PDLC Harting Harsh PDLC/ODVA 7.0mm 2 Cores Fiber Optic Patch CordUS$ 2.9 - 4.2MOQ: 100 Pieces
-
ODC to LC Outdoor Cable Assembly FTTA ODC Waterproof Fiber Patch CordUS$ 2.9 - 4.2MOQ: 100 Pieces
-
IP67 Outdoor Waterproof ODC ODLC PDLC Fiber Optic Patch Cord For FTTAUS$ 2.9 - 4.2MOQ: 100 Pieces
-
FC/LC/SC/ST/E2000/DIN/SMA/MU Hybrid Fiber Optical Adaptor/AdapterUS$ 0.98 - 1.8MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
Bton
Model Number
BT-ODVA-LC
ODVA -LC Duplex IP67 Fiber Optic Cable Sealed Circular LC duplex ODVA patch cord ,RRU(RRH) and Baseband unit
ODVA harsh environment cable assemblies are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions
Product Description
The PDLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the Antenna applications. The product however, is not limited to the above applications. The PDLC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP67.
They are well suited for Industrial and Aerospace and Defense applications.
Features
Cable Type OFNR
Mode Singlemode
Connector Type (End A) LC
Connector Type (End B) LC
Connector Style (End A) Duplex
Connector Style (End B) Duplex
Fiber Channel No
Cable Assembly Type LC Duplex to LC Duplex, LC to LC
Product Type Cable Assembly
Number of Fibers 2
Cable Buffering Tight Buffer
Number of Connectors (End B) 2
Number of Connectors (End A) 2
Connector Color (End A) Beige
Connector Color (End B) Blue
Cable Color Black
Boot Type (Left) Standard
Boot Type (Right) Bend Limiting
Boot Color (Left) Black
Boot Color (Right) Blue
Ferrule Material Zirconia
Outside Cable Diameter 7.5mm[.295in]
Flammability Rating OFNR (Riser) Jacket
Cost effective solution for in house termination
IP67 Water immersion and Dust protection for hash environment
Wide range of operational temperature for outside plant -40oC/+70
Wide range of cables to be used, 5-8mm OD cable with two 2.0mm to 3.0mm jacketed subunits
Chemical Resistance
Intermatable to other Industrial LC adaptor per IEC 61076-3-106
Simple assembly requiring no special tools
Durable mechanical mating, minimum of 500 matings
Mode Singlemode
Connector Type (End A) LC
Connector Type (End B) LC
Connector Style (End A) Duplex
Connector Style (End B) Duplex
Fiber Channel No
Cable Assembly Type LC Duplex to LC Duplex, LC to LC
Product Type Cable Assembly
Number of Fibers 2
Cable Buffering Tight Buffer
Number of Connectors (End B) 2
Number of Connectors (End A) 2
Connector Color (End A) Beige
Connector Color (End B) Blue
Cable Color Black
Boot Type (Left) Standard
Boot Type (Right) Bend Limiting
Boot Color (Left) Black
Boot Color (Right) Blue
Ferrule Material Zirconia
Outside Cable Diameter 7.5mm[.295in]
Flammability Rating OFNR (Riser) Jacket
Cost effective solution for in house termination
IP67 Water immersion and Dust protection for hash environment
Wide range of operational temperature for outside plant -40oC/+70
Wide range of cables to be used, 5-8mm OD cable with two 2.0mm to 3.0mm jacketed subunits
Chemical Resistance
Intermatable to other Industrial LC adaptor per IEC 61076-3-106
Simple assembly requiring no special tools
Durable mechanical mating, minimum of 500 matings
Application&solution
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
