SM 12F 24F MTP Male-MTP Female 3M Fiber Optic Patch Cord is designed for high-density application which offers excellent benefits in terms on-site installation time and space saving. These plug and play solutions uses micro core cable to maximize bend radius and minimize cable weight and size. MPO/MTP Fiber Optic Patch Cord is factory pre-terminated, tested and packed along with the test reports. Available in 12-core configuration, these space saving assemblies comes with either MTP Male or MTP Female Connectors on both the other end. They are available in lengths of 5, 10, 20, 50, 100 meters, custom lengths are available on request. MPO-MPO Fiber Optic Patch Cords are available in Single mode, Multimode OM1, OM2, OM3 or OM4 with LSZH or PVC Jackets

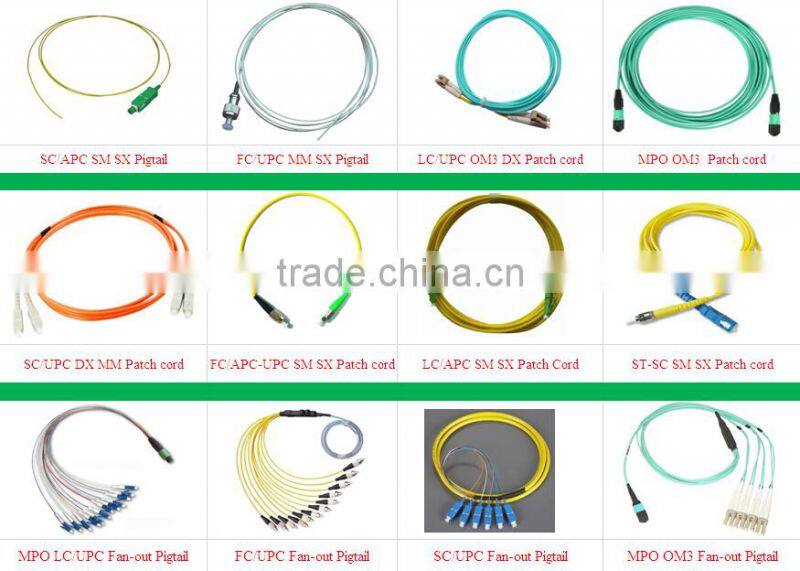

OS1 Yellow Fiber Optic simplex pigtails - single 9/125 patch cable

Fiber optic pigtails, SM, single and duplex cores, Φ0.9mm, Φ2.0mm or Φ3.0mm (PVC/LSZH), length is specified

Guaranteed performance specification

Low insertion loss and return loss

4,8,12,24 core MPO available, compact design

Easy connection between multi-fiber interface and single-mode interface

High precision guide pins for exact alignment

Various combinations of connector, cable types and length

Features

Compliant with IEC 61754-7

Compliant with Telcordia GR-1435-CORE

Usage

AWG, PCB optical transmission system

Interconnection for O/E modules

Optical Switch inter-frame connections

LAN, CATV system

Active Device / Transceiver Interface

Telecommunication Networks

Optical network equipment

  FTTH, LAN, Test equipment, Military industryCATVOutside plantPremise networksAerial distributionMeasuring equipmentsFiber optic communication systemOptical active component and equipment

1 Connector: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Polishing: PC, UPC, APC
3 Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

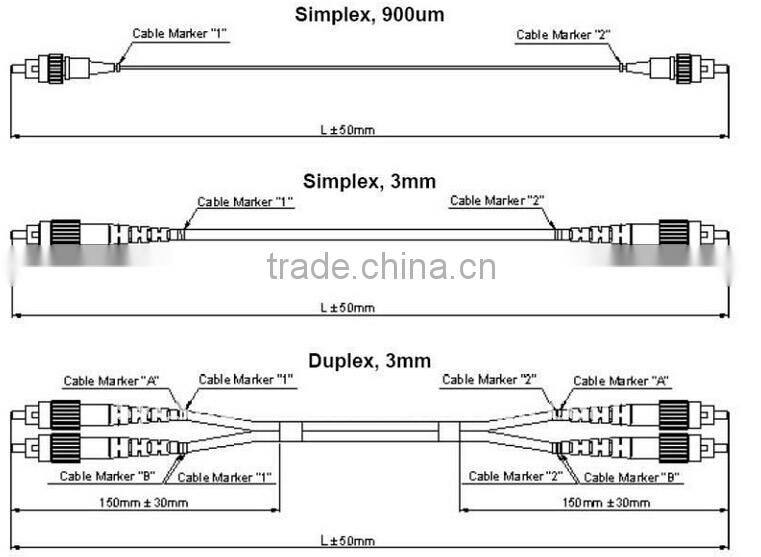

4 Cable Type: Simplex,Duplex

5 Cable Diameter: Φ3.0mm, Φ2.0mm, Φ0.9mm
6 Cable Length: 3 meter or customized
7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
