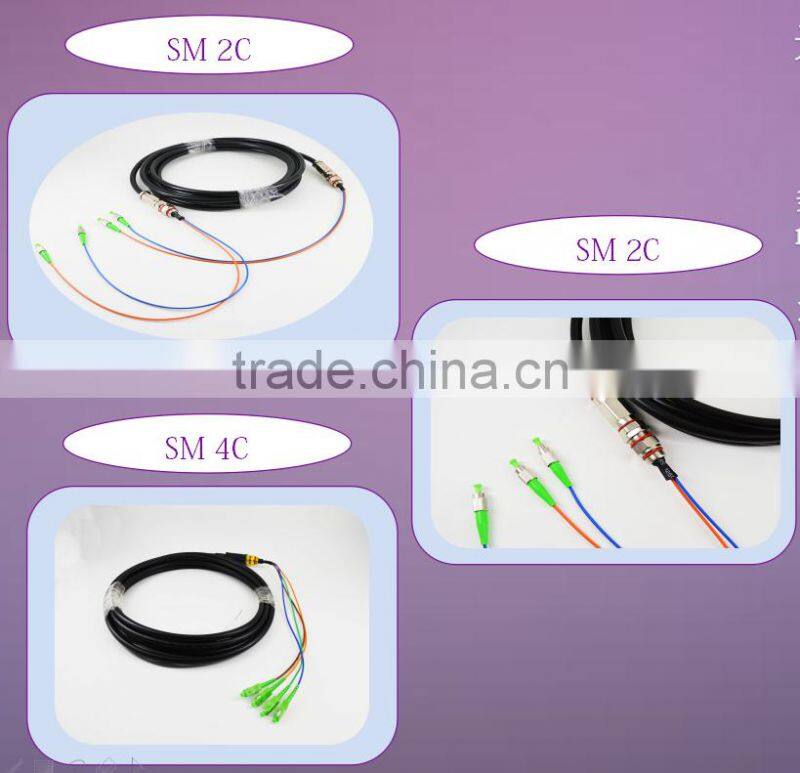

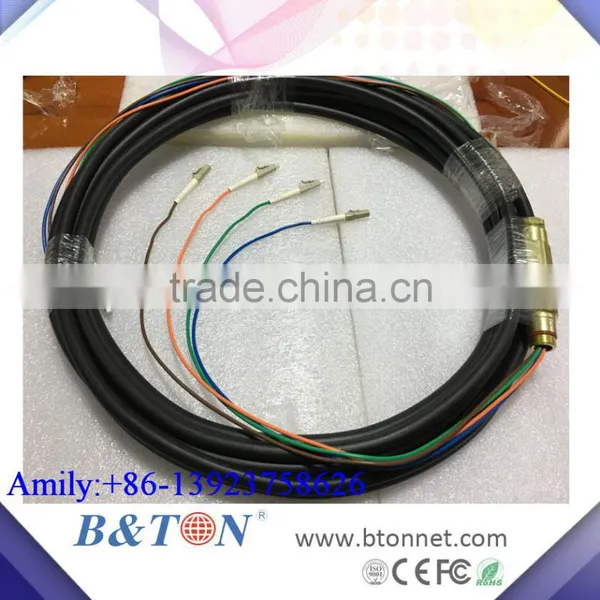

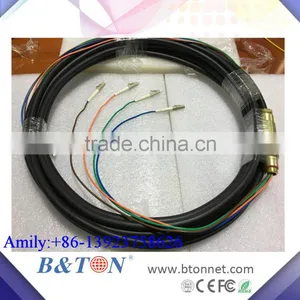

FTTH Outdoor LC 4Core Waterproof Quad Fiber Optic Patch Cord
Waterproof fiber pigtail/Patch cord
Waterproof fiber pigtail/Patch cord can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.
Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.
Fiber core: 2, 4, 6, 8,12 optional
Waterproof features & reliable performance
Pull & erosion resistance, good grounding
Low insertion loss, high return loss, excellent exchangeability, high stability
The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction
Parameter |
Unit |
multi-fiber connector |
||
SM | ||||
PC |
UPC |
APC |
||
Insertion loss (typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
Operating wavelength |
nm |
1310, 1510 |
||
Exchangeability |
dB |
≤0.2 |
||
Vibration |
dB |
≤0.2 |
||
Operating temperature |
°C |
-40~75 |
||
Storage temperature |
°C |
-45~85 |
||
Cord diameter |
mm |
φ3.0, φ2.0, φ0.9 |
||
Fiber count |
F |
4, 6, 8, 12, 24, … fibers |
||
Applicable connector |
FC, SC, ST, MU, LC |
|||
1.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
2.Item shipped by sea and air or UPS,FedEX,DHL and others, depending on size and weight of total order.
3.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
Shenzhen Bton Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules.
Order Information
Model: SM/UPC, SM/APC, MM50/125(OM2), OM3, MM62.5/125(OM1) OM4
Connector: LC, SC, ST, FC, E2000,MT-RJ
Cable Core: Simplexer, duplexer, 4 cores, 6 cores, 8 cores, 12 cores, 24 cores, 48 cores
Cable OD: Φ0.6, Φ0.9, Φ1.8, Φ2.0, Φ2.4, Φ3.0
Cable Material: PVC, LSZH, Hytrel
Cable Color: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple
