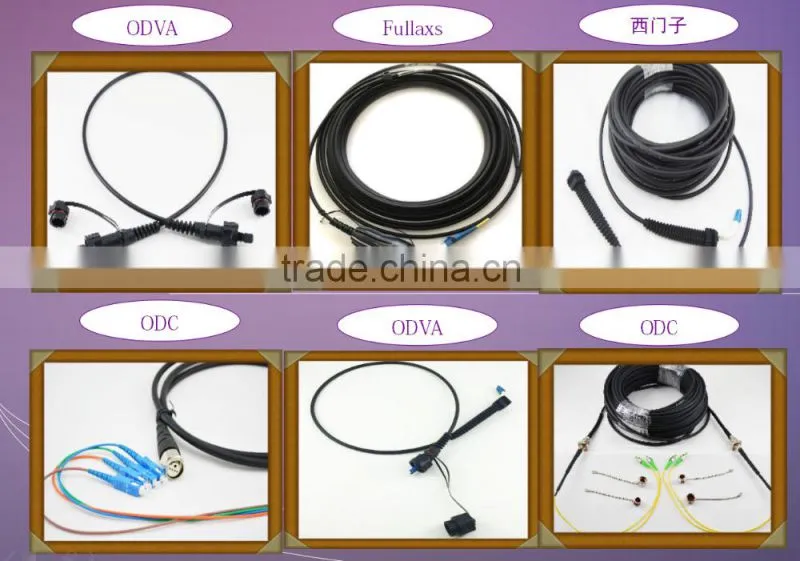

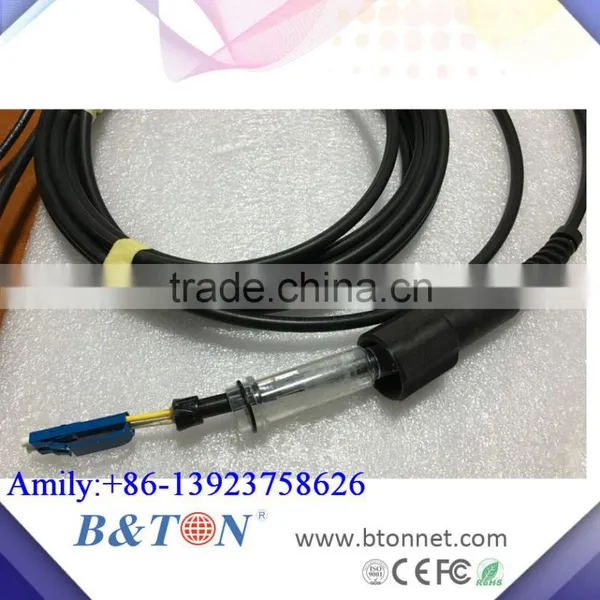

FULLAXS LC Duplex Armoured SM Outoodr Waterproof Patch Cord
ODC harsh environment cable assemblies are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions
With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner. Especially in the 3G, 4G, and WIMAX base stations and fiber-optic distributed zoom technology, FULLAXS fiber optic cable connector assemblies are rapidly becoming the standard connector interface
FULLAXS fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WIMAX/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions
.LC connector qualified to Telcordia GR-326 and TIA/EIA 568B.3
.Temperature range of -40°C to +85°C

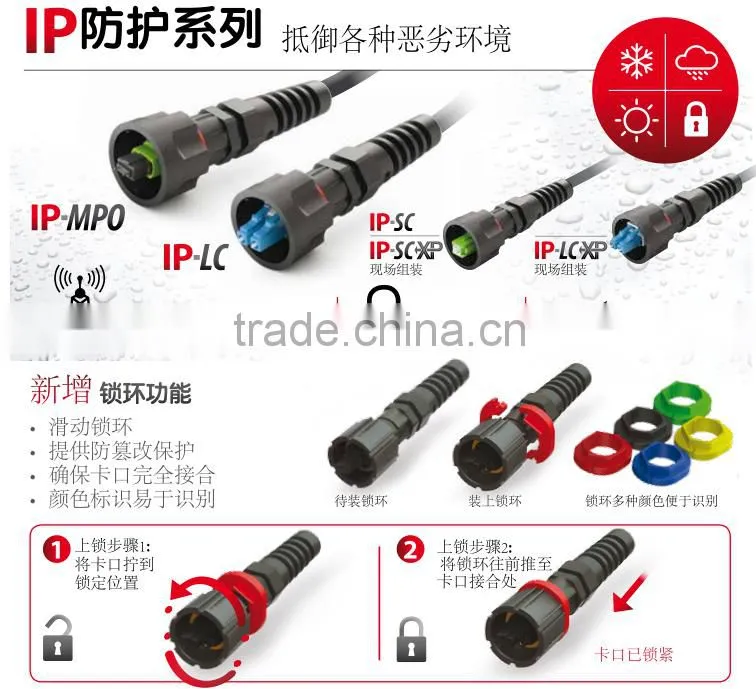

.Bayonet-style mechanical lock
.Flame retardant materials per UL 94 V-0
Specifications |
ODC Connector |
HARTING Connector |
|
Insertion loss (dB) IEC 61300-3-34 |
typ. ≤ 0.25 |
typ. ≤ 0.25 |
97% ≤ 0.35 |
97% ≤ 0.35 |
|
durability |
min. 1000 mating cycles |
min. 1000 mating cycles |
compliance |
IEC 61754-20, TIA 604-10-A |
IEC 61754-20, TIA 604-10-A |
Item |
Requirement |
Mode-field diameter |
9µm |
Cladding diameter |
125 ± 2.5 µm |
Coating diameter |
245 ±10 µm |
Mode fiber or Cladding concentricity error |
≤ 1.5 µm |
Core non-circularity |
≤ 6 % |
Cladding non-circularity |
≤ 1 % |
Coating non-circularity |
≤ 1 % |
Meet standard |
ITU G.651, IEC 60793-2-10 Type A1a, |
Cable Diameter |
5.5mm |
Harsh environments where chemicals, corrosive gases and liquids are
commonplace
.Inside and outside industrial plant and equipment that interface with industrial Ethernet networks
.Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
.Mobile routers and internet hardware
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
