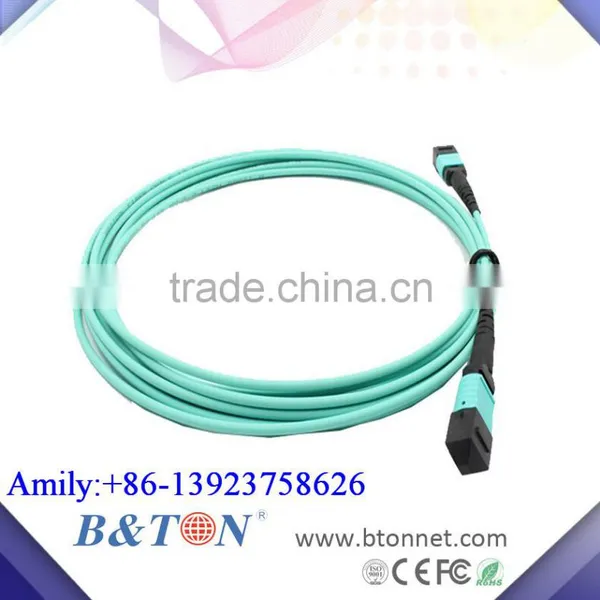

12 Cores OM3 MPO-MPO Fiber Optic Patch Cord
1.FC Simplex Optical Fiber Patch Cord/Pigtail
2.High return loss,Low insertion loss
3.Good exchangeability
4.OEM offer
SM 12F 24F MTP Male-MTP Female 3M Fiber Optic Patch Cord is designed for high-density application which offers excellent benefits in terms on-site installation time and space saving. These plug and play solutions uses micro core cable to maximize bend radius and minimize cable weight and size. MPO/MTP Fiber Optic Patch Cord is factory pre-terminated, tested and packed along with the test reports. Available in 12-core configuration, these space saving assemblies comes with either MTP Male or MTP Female Connectors on both the other end. They are available in lengths of 5, 10, 20, 50, 100 meters, custom lengths are available on request. MPO-MPO Fiber Optic Patch Cords are available in Single mode, Multimode OM1, OM2, OM3 or OM4 with LSZH or PVC Jackets

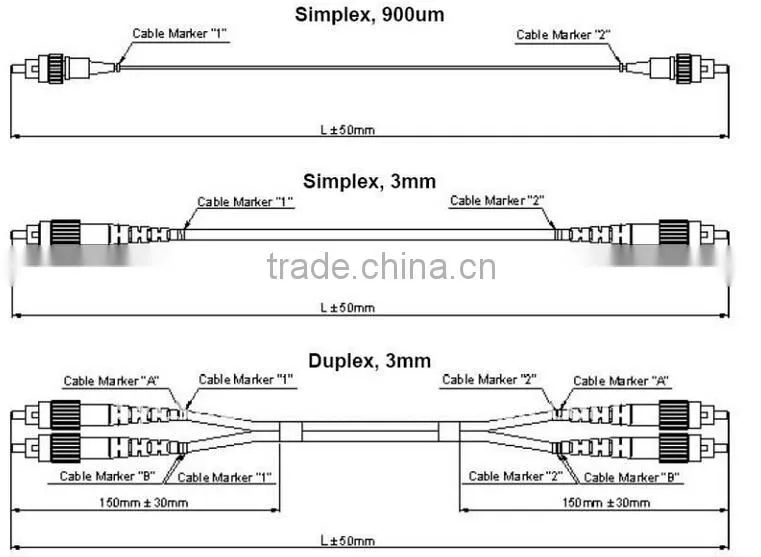

OS1 Yellow Fiber Optic simplex pigtails - single 9/125 patch cable
Fiber optic pigtails, SM, single and duplex cores, Φ0.9mm, Φ2.0mm or Φ3.0mm (PVC/LSZH), length is specified
|
Polishing Connector Insertion Loss (IL) |
MPO Female (SM) |
MPO Female (MM) |
< 0.50 dB |
< 0.50 dB |
|
Return Loss (RL) |
> 50dB |
> 35dB |
Mating Cycles Delta IL |
< 0.2 dB after 500 mating cycles |
|
Fiber Cable Type |
Single mode: G652D or G657A; Multimode: OM1, OM2, OM3 OM4; |
|
Cable Color |
Yellow for SM G652 and G657A fiber; Orange for MM OM1 and OM2 fiber; Aqua for MM OM3 fiber; |
|
Cable Jacket |
Ribbon / Fan-out (LSZH / PVC) |
|
Patch Cord Pull-out Force |
5N |
|
Operating Temperature |
-20°C~+70°C |
|
Storage Temperature |
-40°C~+80°C |
|
Guaranteed performance specification
Low insertion loss and return loss
4,8,12,24 core MPO available, compact design
Easy connection between multi-fiber interface and single-mode interface
High precision guide pins for exact alignment
Various combinations of connector, cable types and length
Features
Compliant with IEC 61754-7
Compliant with Telcordia GR-1435-CORE
Usage
AWG, PCB optical transmission system
Interconnection for O/E modules
Optical Switch inter-frame connections
LAN, CATV system
Active Device / Transceiver Interface
Telecommunication Networks
Optical network equipment
FTTH, LAN, Test equipment, Military industryCATVOutside plantPremise networksAerial distributionMeasuring equipmentsFiber optic communication systemOptical active component and equipment
1 Connector: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Polishing: PC, UPC, APC
3 Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4 Cable Type: Simplex,Duplex
5 Cable Diameter: Φ3.0mm, Φ2.0mm, Φ0.9mm
6 Cable Length: 3 meter or customized
7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
