Fiber Optic Transmission System hd Sdi Optical Converter

Fiber Optic Transmission System hd Sdi Optical Converter photo-1
US$ 1 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BTON
Model Number:
BT-HDS1V1D-T/RS-20-7
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name BTON
Model Number BT-HDS1V1D-T/RS-20-7

Specifications

1.Analog to SDI Converter
2.Fiber Optic Equipment
3.Fiber converter manufacturer
4.Warranty: 3-year
5.Quick delivery

SDI Fiber Optic Transmission System

HD-SDI Video converter is a high performance, multi-standard Analog to Serial Digital Converter, designed for professional and broadcast monitoring applications. The SDI uses 8-bit technology and handles 525 or 625 line signals and provides NTSC, PAL, PAL-N and PAL-M outputs. Selection of the output standard is via front panel dip switches. A Composite and an S-Video output is provided. The unit is housed in an ultra compact metal case. It uses an external 5VDC In-Plug type power adapter with locking DC connector.





SPECIFICATIONS

Analog Video Inputs
Composite 1x via BNC Connector
S-Video (Y/C) 1x via 4-PIN Mini-DIN
Television Standards NTSC, PAL, PAL-N, PAL-M
Impedance 75Ω
SDI Video Output
SMPTE 259M, 270Mbits/sec 1x via BNC Connector
Video Specifications
Frequency Response Flat to more than 6MHz
Chroma to Luma Delay <= 5nS
Differential Gain <=1%
Differential Phase <=1°
Luma Nonlinearity <=1%
Signal to Noise Ratio Better than 60db
Signal Processing 8-bit
Control Method
Front Panel Dip Switch Output Standard, CV or SV In, Comb or Low Pass Filter
Warranty
Limited Warranty 2 Years Parts and Labor
Mechanical
Size (H-W-D) 1.2"x5.25"x3" (30x133x76mm)
Weight (Net) 10 oz (285g)
Environmental
Operating Temperature +32° to +120° F (0° to +48° C)
Operating Humidity 10% to 85%, Non-condensing
Storage Temperature -40° to +150° F (-40° to +65° C)
Storage Humidity 10% to 85%, Non-condensing
Power Requirement
External Power Supply 5VDC @ 500mA - Locking DC
Regulatory Approvals
Converter Unit FCC, CE
Power Supply UL, CE, CSA
Accessories Included
1x C-Video Input Cable 6’ (2m) BNC to BNC
1x Power Adapter US, UK or Euro or Type
1x Operations Manual
Product Item Numbers
SDI Analog to SDI Converter

Key Features of the 1T-V-SDI


  • 8-bit Signal Processing
  • Composite and S-Video Inputs
  • Serial Digital Video Output at 270Mbits/sec
  • NTSC, PAL, PAL-N, PAL-M Operation
  • Ultra Compact Metal Case




Fiber Optic Transmission System hd sdi optical converter

 BTON Trade Terms & Delivery Conditions:
1.Favorable Payment: T/T, 30% deposit before production, 70% balance to be paid before delivery;
2.Leading Time:  1-2 days for sample,10-15 days for mass production;
3.Freight Charge: quoted acoording to you requirement;
4.Discount: offered when the orders grow bigger.



Fiber Optic Transmission System hd sdi optical converter

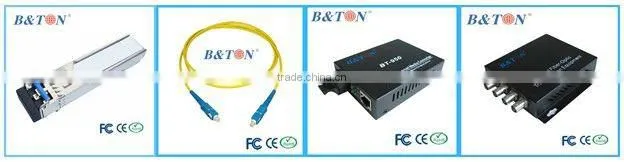

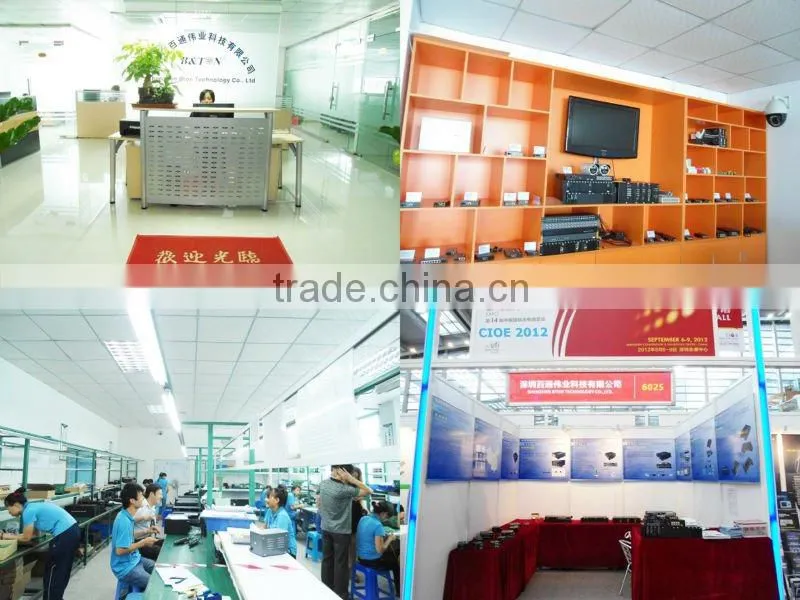

  Shenzhen BTON Technology Co.,Ltd is a hi-tech enterprise combining technical research,development,manufacturing and marketing. It specializes in fiber optic equipments, ranging from fiber media converter, digital video converter, hd-sdi / hdmi / dvi ransmitter and receiver, sfp transceiver , fiber optic patch cord,etc.

Fiber Optic Transmission System hd sdi optical converter



Fiber Optic Transmission System hd sdi optical converter

1. Best Solution with good main chipset( Altera ), video chip( TI for dual channels)

 2. Good material , best quality of the module( 1.25G and 2.5G )

;3. Good quality of power supply( working more than 3-4 years);

4. No data package loss;

5. With three levels of lightning;

6. With Filter Plate;

5. 3 years warranty;

6. Customization;



Fiber Optic Transmission System hd sdi optical converterFiber Optic Transmission System hd sdi optical converter
