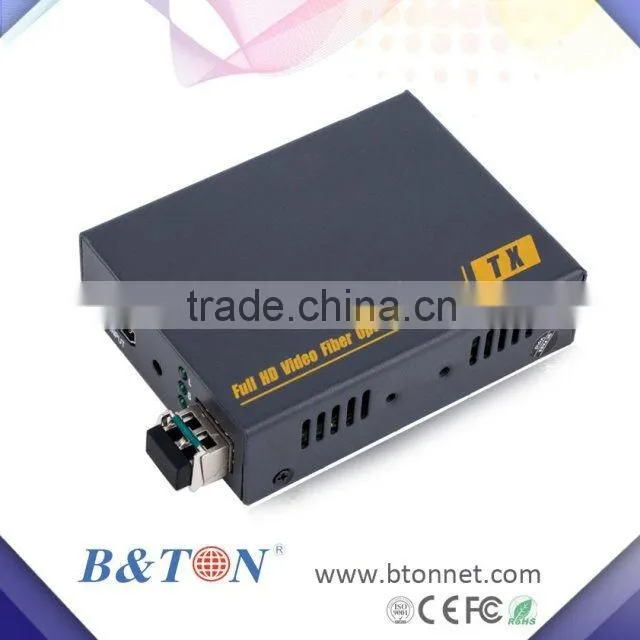

3D HDMI Long Distance Over One Fiber Optic Cable HDMI To Fiber Converter 2KM

Name: 3D HDMI Long Distance Over One Fiber Optic Cable HDMI To Fiber Converter 2KM
Brand: B&TON
SKU: 112990307
Availability: InStock

3D HDMI Long Distance Over One Fiber Optic Cable HDMI To Fiber Converter 2KM thumbnail-1

3D HDMI Long Distance Over One Fiber Optic Cable HDMI To Fiber Converter 2KM thumbnail-2

3D HDMI Long Distance Over One Fiber Optic Cable HDMI To Fiber Converter 2KM thumbnail-3

3D HDMI Long Distance Over One Fiber Optic Cable HDMI To Fiber Converter 2KM photo-1

3D HDMI Long Distance Over One Fiber Optic Cable HDMI To Fiber Converter 2KM photo-2

3D HDMI Long Distance Over One Fiber Optic Cable HDMI To Fiber Converter 2KM photo-3

US$ 1 - 190 MOQ: 1 Pair

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

B&TON

Model Number:

BT-106HDMI

Contact Supplier Request Quote Chat Now

Shenzhen Bton Weiye Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name B&TON

Model Number BT-106HDMI

HDMI to Fiber Video Optical Converter Uncompress 1080P

1.0 Introduction

HDMI Over Ethernet is based on TCP/IP standard. It transmit your HD display with the high resolutions up to 395 feet (120 meters) away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard,you can extend your HD video to multiple displays by using an Ethernet Switch.

Specifications

Ø Following TCP/IP standard.
Ø Support HDMI1.3 protocol.
Ø HDCP1.1 & 1.2 protocol compliant
Ø Support point-to-point mode, one point-to-many mode and cascade connection mode.

HDTV Resolutions	480p,576p,720p,1080p
Audio	Sample rate:32kHz, 44.1kHz and 48kHz
HDMI	HDMI 1.3
HDCP	HDMI 1.2
Power adapter	Input: 100V - 240V (50 - 60Hz) Output: 5V/1A
Power consumption	HDMI Sender: 3W HDMI Receiver: 3W
Size(L-W-H)	100×60×25mm
Weight	128g*2PCS
Operating Temperature/Humidity	0℃ - 70℃ / 10% - 80%RH(no condensation)
Storage Temperature/Humidity	-10℃ - 80℃/ 5% -90% RH(no condensation)

2.0 Panel Description

2.1 HDMI Sender

5V/1A	Supply power for the Sender
RESET	Hold down the key for 10 seconds, the model will Restore the default setting
HDMI - IN	Connect HDMI Source to this Port.
STATUS	When system start up, the Green LED will be on,When transmit video, the led will blink.
Power	Power on, The Red led is on

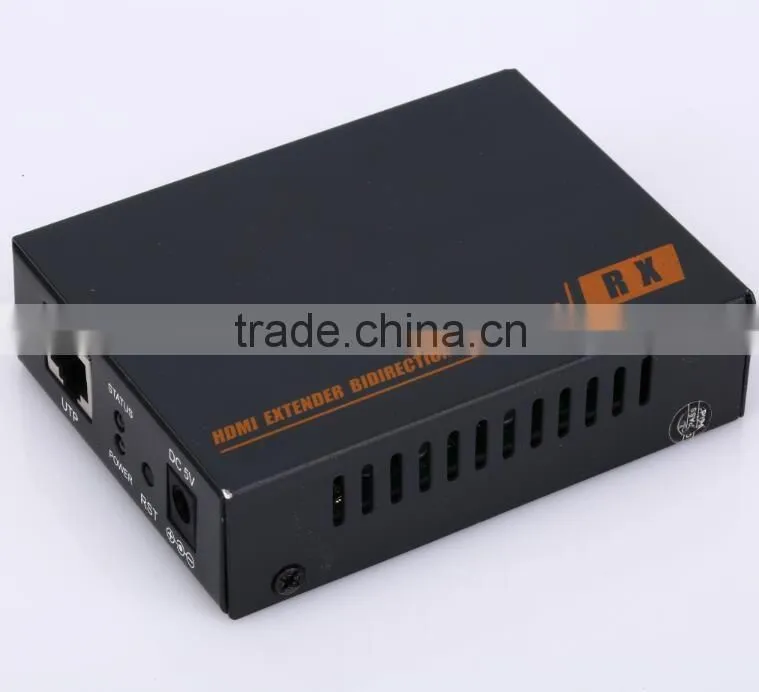

HDMI Receiver

5V/1A	Supply power for the Receiver
RESET	Hold down the key for 10 seconds, the model will Restore the default setting
HDMI - Out	Connect HDMI sink device to this Port.
STATUS	When system start up, the Green LED will be on,When transmit video, the led will blink.
Power	Power on, The Red led is on

5,Connection and operation

1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI IN of Sender.

2) Connect the HDMI out of Receiver to HDTV display.

3) Connect the IR receiver to the Receiver IR IN Port.

4) Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.

5) Plug two pieces of 5V power supply into the Sender and Receiver.

6) Power on the HDTV display and HDMI source.

6.Application diagram

Application 1 Application 2

HDMI over Fiber

BT-200 Compress HDMI:

BT-106 Uncompress HDMI 1080P

Uncompress HDMI +KVM

HDMI to UTP :40M,60M,100M,150M
