2ch HDSDI Video Converter

2ch HDSDI Video Converter

HD-SDI Unidirectional Fiber Optic Transmitter/Receiver

Description

The HDSDI could transmit HD/SD-SDI as per SMPTE 424M-2006, 292 and 259, with or without embedded audio and data, as well as DVB-ASI over one single mode or multimode fiber. Signals are equalized and re-clocked prior to fiber optic transmission. The transmitter features a re-clocked and equalized SDI looping out; the receiver features two re-clocked and equalized SDI outputs.

Feature
2-ch unidirectional HD-SDI video with 1-ch embedded audio over one fiber
Range from 19.4Mb/s to 1.485Gb/s
SMPTE 292M (1.485Gb/s) clock recovery
Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s)、M2S and DVB-ASI (270Mb/s) standard
Output wavelength 1310nm、1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
150m automatic cable equalization, all the 1.485 Gb/s rate below（Belden 1694A）
Optional network management system
LED status indicators monitor the critical parameters
Optional network system
Support hot swap
Support stand-alone, 1U rack mount and 4U rack mount

Application
Remote OB Van/Truck Video Feeds
Broadcast Studio Camera Feeds
Long-haul Signal Transport
TV station/video conference
Lecture Hall Projector Connectivity
Medical/Surgical Room Broadcast
Building to Building video conference calling
Small corporate campus video links

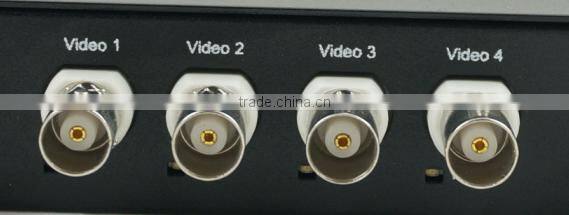

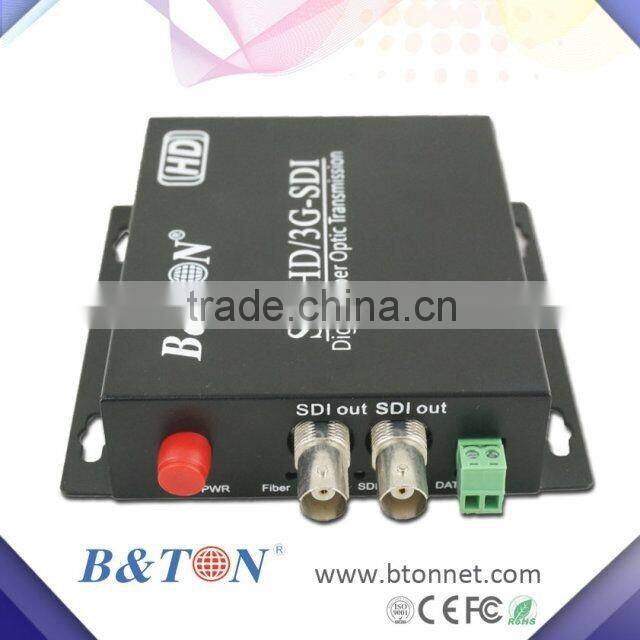

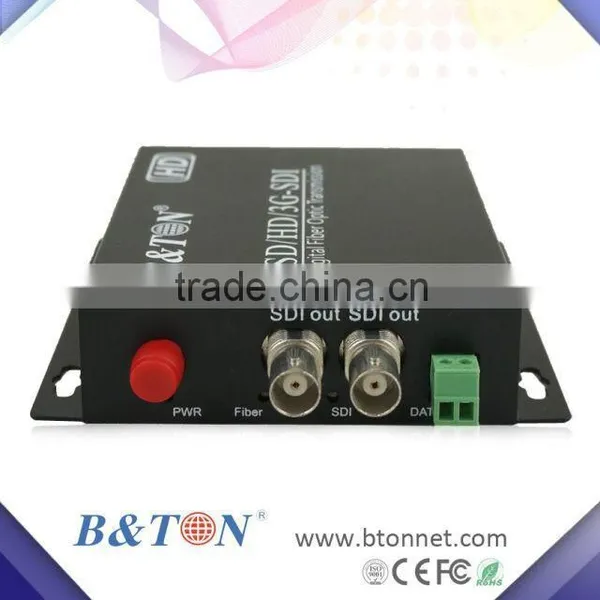

BNC Interface

Gold-plated ferrule interfaces

Connected with the BNC interface

it can enhance the signal reception rate

Ensuring the picture is more clear

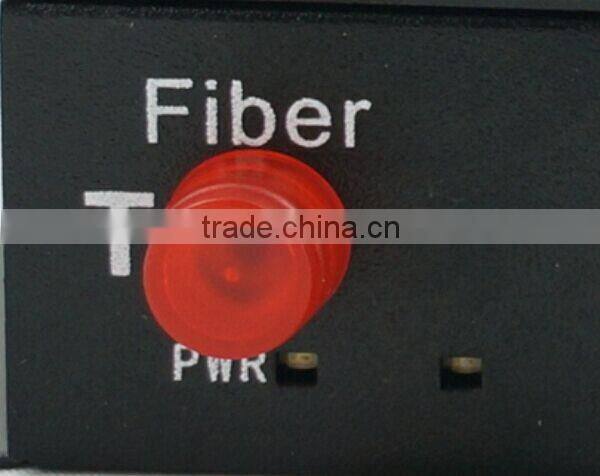

FC interface

FC Fiber optic interfaces
The analog signal convertered into an optical signal
by Optical Video Converter
Pass through this interface input Optical fiber

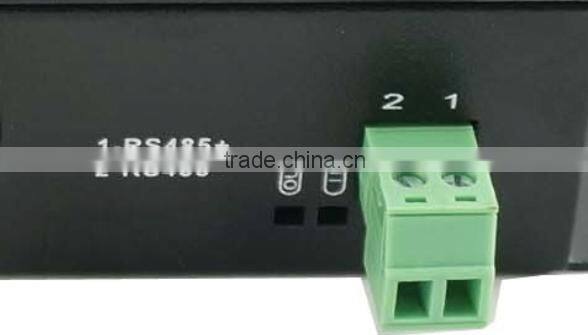

Data Terminal Blocks

Encoded type: RS485/RS232/RS232/Manchester
Data Rate: DC~300kbps
BER: ≤10-9

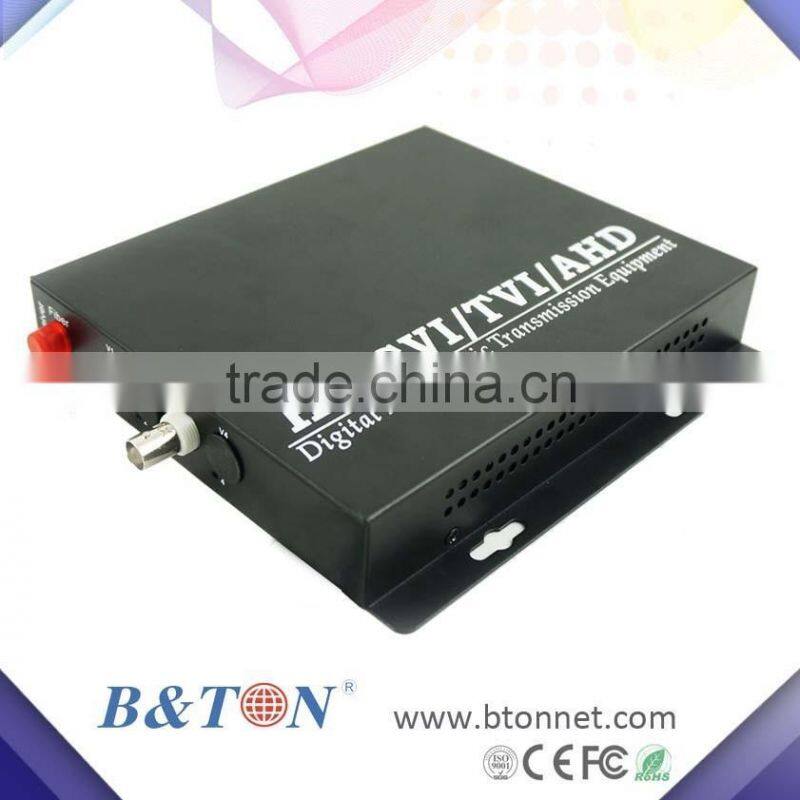

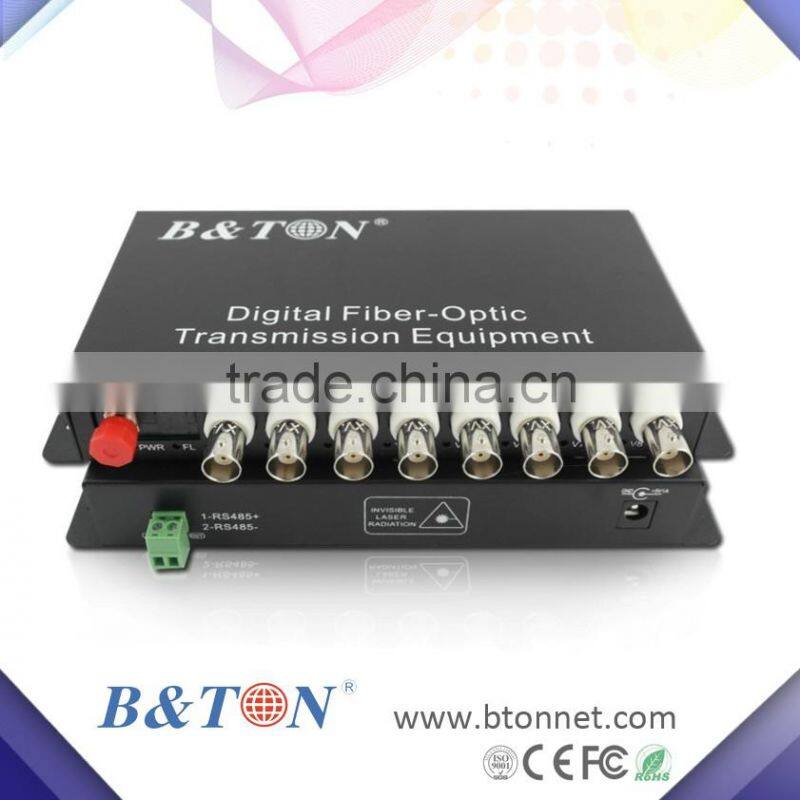

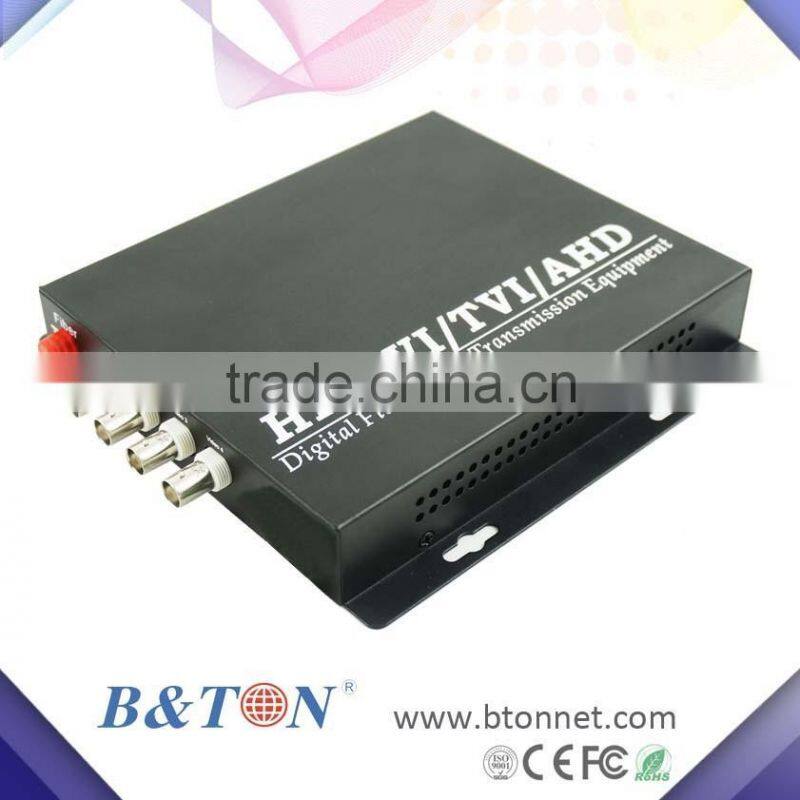

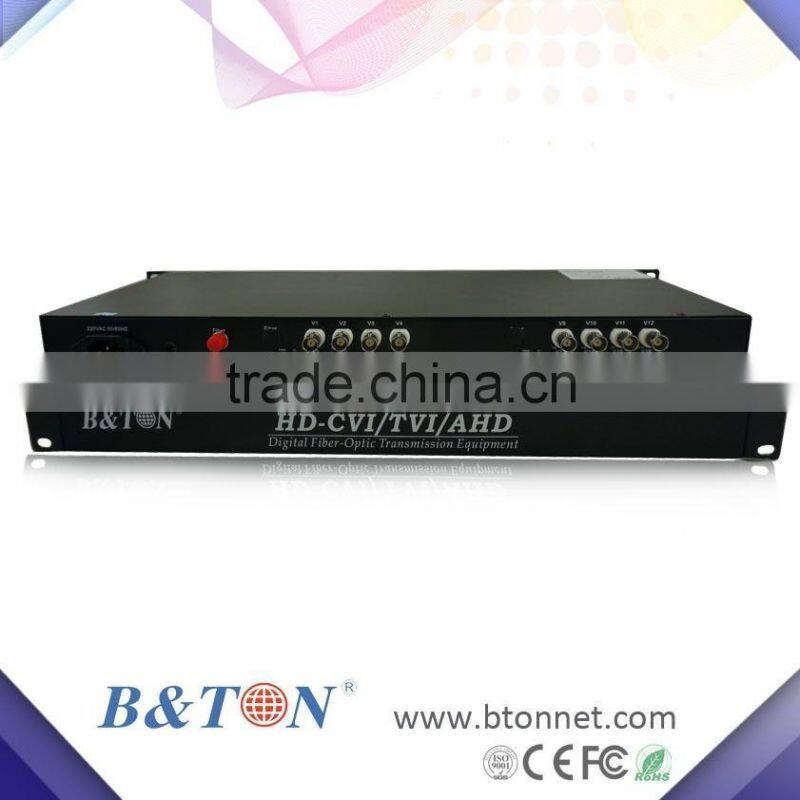

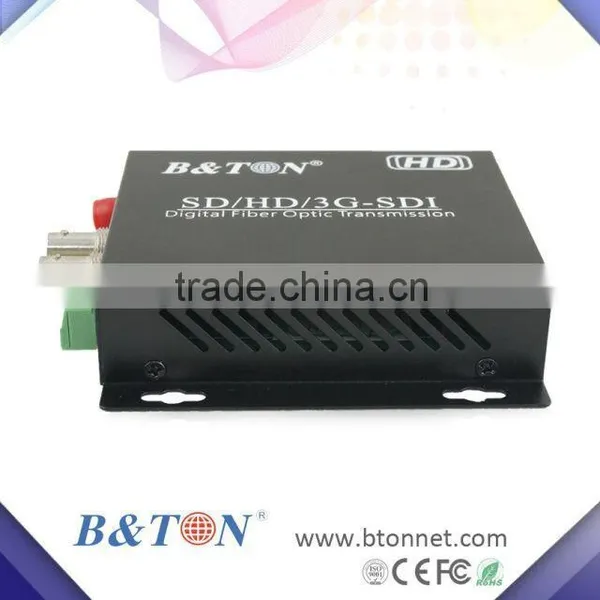

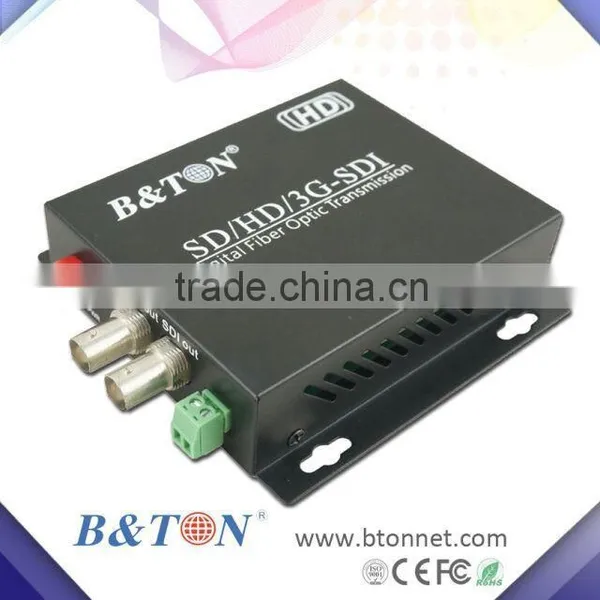

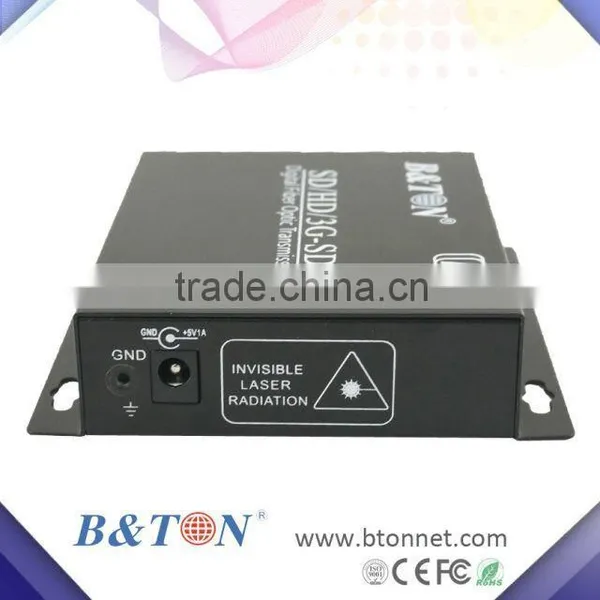

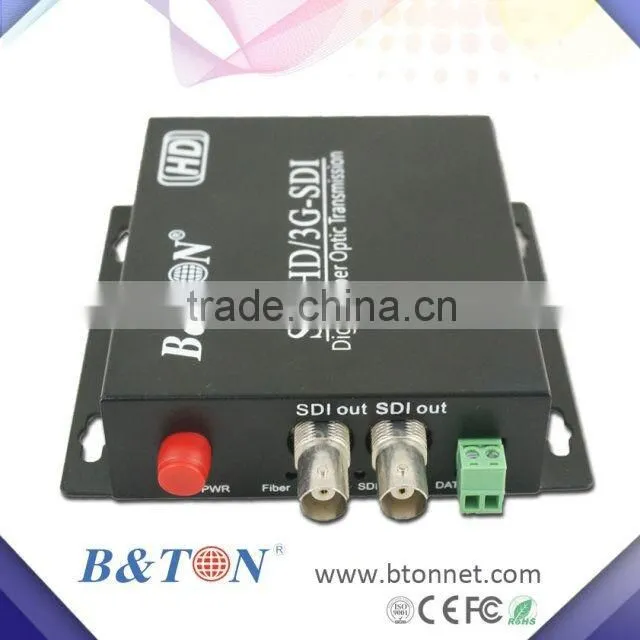

Product Picture

HDSDI Analog Video to Fiber Converter | 1V/2V/4V/8V/16V HD-SDI optic transceiver

Model No.: BT-SDI-1VF-T/R
Description: 1ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-SDI-1V1DF-T/R
Description: 1ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-SDI-2VF-T/R
Description: 2ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-SDI-2V1DF-T/R
Description: 2ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-SDI-4VF-T/R
Description: 4ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-SDI-4V1DF-T/R
Description: 4ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-SDI-8VF-T/R
Description: 8ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-SDI-8V1DF-T/R
Description: 8ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-SDI-16VF-T/R
Description: 16ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-SDI-16V1DF-T/R
Description: 16ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;
