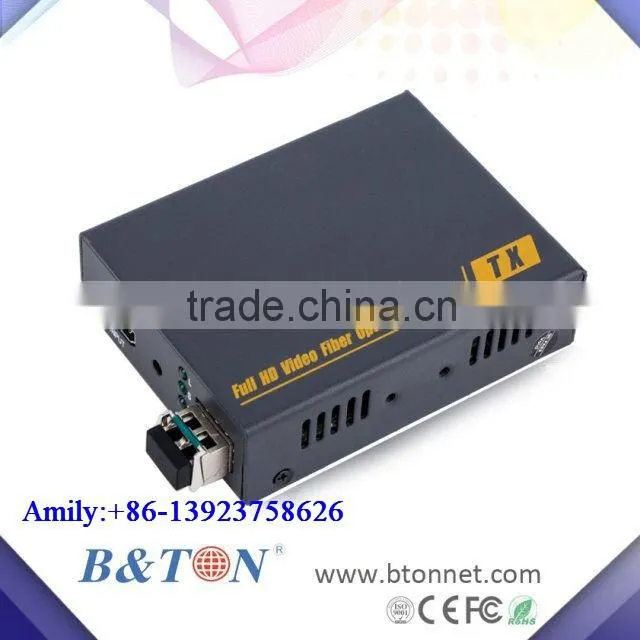

VGA TO Fiber Optic Independent Analog Audio with RS 232 local VGA Loop Extender Fiber Optic converter
The VGA Fiber optic extender provides extension of VGA signals long distances over one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Transmits VGA video signals up to 10km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support external stereo audio unidirectional transmission;
Support transmitter one channel signal output;
Support RS232 signal unidirectional transmission, baud rate self-adaptive;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

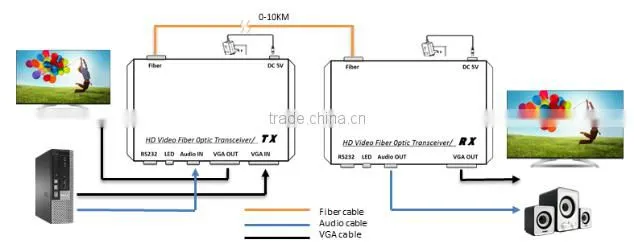

1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2.Connect an VGA cable between the VGA input port of transmitter and the VGA output port of the video source,
3.Connect the VGA output port of receiver to the display device with VGA cable,
4.Connect the transmitter optical port to the receiver optical port using one fiber optic cable.
Optical fiber
Interface SFP model – LC connector
Fiber type Multi-mode / single-mode (optional)
Wavelength Multi-mode 850nm /
Single-mode 1310nm(optional)
Interface bandwidth 10Gbps
Transmission distance OM3 multi-mode fiber: maximum 300m，
Single-mode fiber: standard 2km；maximum 10km

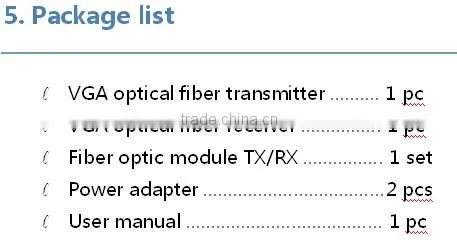

5.Package list
Power Charger type
British type,Amercian type,European type,Austrilia Type
Shenzhen BTON Weiye Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules .All of these products are widely applied in many industries like telecom ,traffic, government organization, campus network ,oil industry, electric power system, and public security etc. B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China
