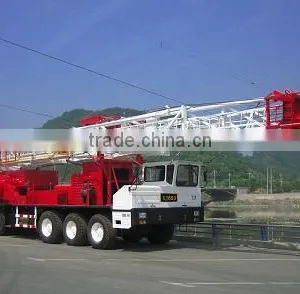

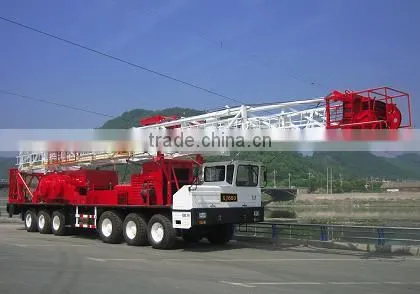

Help Center30t, 150HP, Workover Rig XJ150
Related Products
Specifications
1. Service depth: (2 7/8'' UE tubing) 2600m (8530 ft)2. Nominal hook load: KN (lb) 300kn (67400 lb)
3. Drawworks power: 150HP
TECHNICAL STANDARD AND REFERENCE:
SY/T5610-2004 Petroleum Workover Rig
API Spec 4F Specification for Drilling and Well Servicing Structures
API Spec Q1 Specification for Quality Programs
API Spec 8C Specification for Drilling and Production Hoisting Equipment
API Spec 7K Specification for Drilling Equipment
API Spec 9A Specification for Wire Rope
Quality system: ISO9001-2008 for Quality Assurance in Design, Development, Production, Installation and Servicing
OVERALL SPECIFICATIONS:
Model |
XJ150 |
Service depth (2-7/8" UE tubing) ft(m) |
8530(2600) |
Nominal hook load lb(kN) |
67440(300) |
Max Hook load lb(kN) |
131508(585) |
Wireline dia/effective line quantity in.(mm) |
φ0.87/6(φ22/6) |
Max lifting speed of hook ft/s(m/s) |
4.6(1.4) |
Overall dimensions in traveling condition ft(m) |
50.2×8.2×12.7(15.3×2.5×3.87) |
Weight lb(kg) |
48898(22180) |
