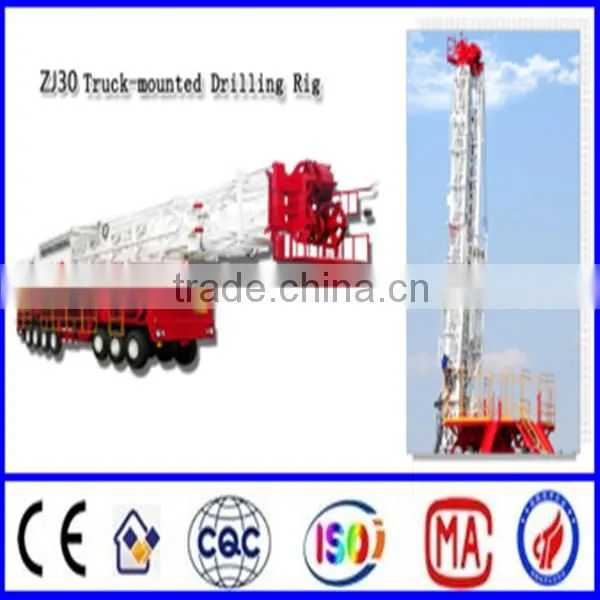

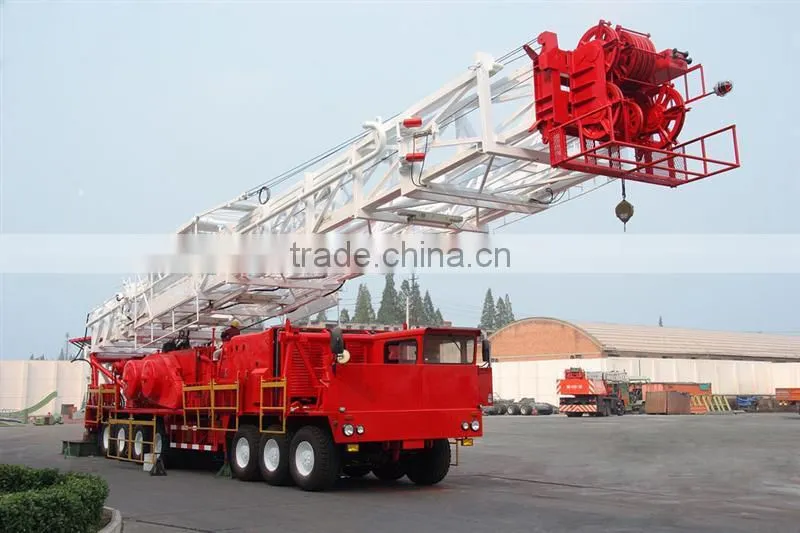

Help Center3000m, 750HP, Truck Mounted Drilling Rig ZJ30
Related Products
-
2000m, 650HP, Truck Mounted Drilling Rig ZJ20NegotiableMOQ: 1 Set -
Truck-mounted Drilling Rig Api Hot SalesUS$ 900,000 - 6,000,000MOQ: 1 Set
-
Zj20 Truck Mounted Drilling Rig for SaleUS$ 40,000,000 - 74,000,000MOQ: 1 Set
-
Drill Water Well on Truck Zj20US$ 40,000,000 - 74,000,000MOQ: 1 Set
-
Drill Water Well on Truck Zj30US$ 40,000,000 - 74,000,000MOQ: 1 Set
Specifications
1.Drilling depth: (4 1/2'' drilling pipe)3000m2.Max hook load: 1700(381260 pounds)
3.Drawworks input power: 750HP
Mature double engine compound box and drive system.
14×8 reinforced chassis with good cross-country capacity.
5.5/6m foldable substructure and dog house.
Top drive system is available.
Item |
Model |
ZJ30/1700CZ |
1 |
Drilling depth:m (ft) (4-1/2”DP) |
3000(9840) |
2 |
Well servicing depth:m(ft)(3-1/2”DP) |
6500(21325) |
3 |
Max.hook load:KN(lb) |
1700(381260) |
4 |
Rope line diameter:mm(in)/number |
29(1-1/8”)/8 |
5 |
Max.hook lifting speed:m/s(ft/s) |
1.36(4.46) |
6 |
Moving dimensions:m(ft) |
21.25×3.3×4.47(69.7×10.8×14.67) |
7 |
Weight:kg(lb) |
76000(167548) |
8 |
Power system |
CAT3406C/C15 |
9 |
Engine power:KW(hp)(2100r/min) |
343×2 (460×2)/402(540)×2 |
10 |
Model of hydraulic transmission |
ALLISON-S5600×2 |
11 |
Emergency power |
—— |
12 |
Chassis driven |
14×8 |
13 |
Min.turning radius:m(ft) |
42(137.8) |
14 |
Min.ground clenrance:mm/in |
340/13.39 |
15 |
Drowworks |
Double drum(single drum) |
16 |
Drowworks power:hp |
750 |
17 |
Diameter of main drum: mm(in) |
480×914.5(18.9×36) |
18 |
Mian brake |
Belt type(disc type can be chosen) |
19 |
Auxilary brake |
WCB324 disc brake |
20 |
Drawworks lifting shifts |
5 forward 1 reverse |
21 |
Derrick model(double sections extension mast) |
JJ180/36-W /JJ180/38-W |
22 |
Derrick height: m(ft) |
36(118.11)/38(124.6) |
23 |
Racking platfrom height: m(ft) |
20.4(66.9) |
24 |
Wind speed:km/h(kn) |
110(60) |
25 |
control/lighting/electric circuit |
24V/220V/380V(china) |
26 |
Rated pressure of hydraulic/air:MPa(psi) |
14/0.833-0.93(2002/119.12-133) |
27 |
Rig floor |
DZ180/6-Z foldable substructure |
28 |
Rotary table |
ZP205 |
29 |
Treveling block/hook |
YG170 |
30 |
Swivel |
SL225 |
