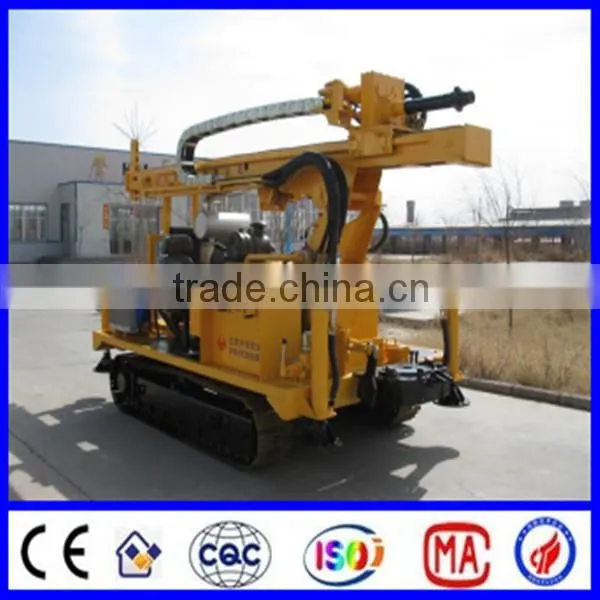

Truck Mounted Water Well Drilling Rig for Sale

Name: Truck Mounted Water Well Drilling Rig for Sale
Brand: Hongsheng
SKU: 112985379

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Lijin Hongsheng Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Main Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin China

Brand Name Hongsheng

Certification API

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.strong delivery torque
2.easy to operation
3.strong transmission torque
4.multi-function and auto

The main technical parameters:

Drilling depth	m			100		250		300	600
Drilling DI	mm			300		200		150	75
Open hole DI	mm			300
End hole DI	mm			75
Drilling rod	mm			Φ60
Drilling angle				90°-65°
Rotary Spindle
Spindle forward speed					r/min			30-1050
Spindle reverse speed					r/min			29-137
Spindle stroke					mm			560
Spindle inner diameter					mm			96
Spindle lifting capacity					KN			60
Main Winch ( drive hydraulic system)
Single line lifting speed							m/min	0-45
Hug floodgate belt width							mm	90
Tightrope diameter							mm	14
Hoist single line lifting capacity							KN	40
Roller diameter							mm	200
Roller cubic measure							m	30
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement			L/min					250
Work pressure			Mpa					7
Water inlet caliber			mm					75
Water to exit caliber			mm					50
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure								63mL/r 20Mpa
Behind displacement,pressure								25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp						4100# 50HP
Electric motor		KW						Y180L-4 22KW
