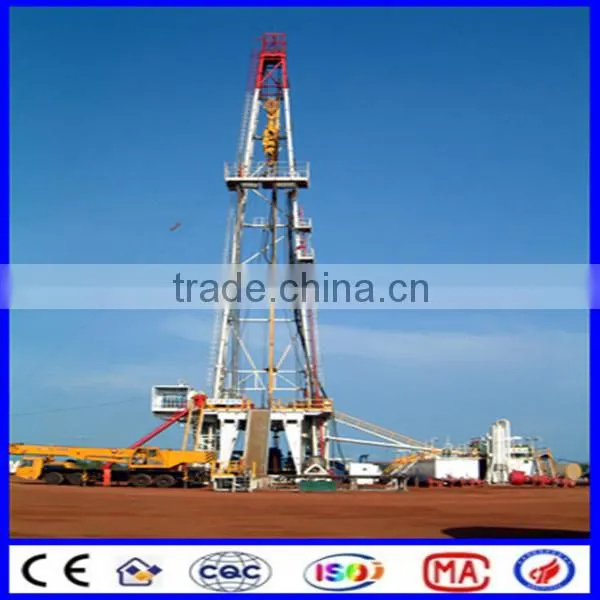

ZJ70 Skid-mounted Oil Drilling Rigs for Sale
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Variable Frequency Electric Drive Drilling RigNegotiableMOQ: 1 Set -
Electromechanical Combination Drive RigsNegotiableMOQ: 1 Set
-
Compound Drive Drilling RigNegotiableMOQ: 1 Set
-
Drilling Rigs ZJ50US$ 1,200,000 - 5,000,000MOQ: 1 Set
-
Eletronic Drilling Rigs Hot Sales With Api and Low PriceUS$ 1,500,000 - 5,000,000MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Electric
Place of Origin
China
Brand Name
hsoil
Model Number
ZJ70
Certification
API
Specifications
1.achieve intelligent control over the rigs2. An AC variable-frequency drilling rig provides dynamic braking.
| Model:U.S Met | ZJ70/4500L | ZJ70/4500LD | ZJ70/4500DZ | ZJ70/4500DB | ZJ70/4500DBF |
| Nominal drilling depth: | 14800~23000 4500~7000 | ||||
| 4-1/2″Drill ft m | 13100~19700 4000~6000 | ||||
| 5″Drill ft m | |||||
| Maximum static hook load: KIPS KN | 992 4500 | ||||
| Maximum drill negative: KIPS KN | 485 2200 | 507 2300 | |||
| Maximum input power winch: hp Kw | 2000 1470 | 4020 3000 | |||
| DW gear | 4 n +2 down | 4 | 4/Stepless | Stepless | |
| Main brake type | Disc brake / with brake | ||||
| Auxiliary brake type | Eddy current brake / E.T. N brakes | Dynamic braking / eddy current brake / E.T. N brakes | |||
| Rope diameter: in mm | 1-1/2 38 | ||||
| Enhance the system's largest tethered | 6×7 | ||||
| Wearing rope ways to improve the system | Shun wear / wore flowers | ||||
| Swimming pulley diameter: in mm | 60 1524 | ||||
| Opening diameter turntable: in mm | 37-1/2 952.5 | ||||
| Opening diameter turntable | Composite drive | Independent drive | Composite drive&Independent driver / composite driver / independent drive | ||
| Mast type | “∏” | ||||
| Derrick effective height: ft m | 152 46.5 | ||||
| Base height: ft m | 20.5,29.5,34.5 7.5,9,10.5 | ||||
| Headroom base: ft m | 20,25,30 6.12,7.62,9.12 | 20,25,30,35 6.12,7.62,9.12,10.62 | |||
| Mud single power: hp KW | 1600 1180 | ||||
| Mud pump sets | 2 | 3 | |||
| Transmission | Whole chain box | AC-SCR-DC | AC-DC-AC(VFD) | AC-DC-AC(VFD) | |
| /Pump group | |||||
| Main engine power: hp KW | 1500 1100 | 1630 1200 | |||
| Main engine number of units | 3 | 4 | |||
| Mud tanks with a total capacity: BBL m3 | 2500 380 | ||||
