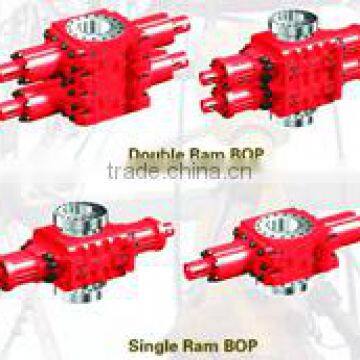

U-Shaped Ram BOP api 16A

Specifications

U-Shaped Ram BOP is designed and manufactured according to API Spec 16A standard

Product Features
Single, double plate type and ring type BOP is widely used in onshore and offshore platforms. They are characterized by: a compact, easy to operate and reliable sealing performance.
Single gate double plate with hydraulic control method, which allows rapid and effective seal drill can effectively maintain its sealing effect, and there is a very good hydraulic pressure control. Open or close the gate whirl board in exchange for protection and are hydraulically controlled. Ram and seals can be replaced in the field part, save a lot of time to repair.

Main criteria

SY / T 5053.1 -2000 BOP and control device BOP SY / T 5053.2-2007 drilling wellhead control equipment and the shunt device control system specification SY / T 6160-2008 BOP inspection and maintenance

Three four-way fluid transfer valve 12 / Box 720mm x 720mm x 260mm 157KG

Crankshaft piston pump / box of 3 boxes 860mm x 510mm x 470mm 185KG

Gate BOP35/35 1 / box 2 boxes 2550mm x 1050mm x1160mm 3080KG

Ring-shaped BOP35/35 1 units / box 2 boxes 1430mm x 1430mm x1680mm 6550KG

Accumulator 10 / box of 6 boxes 1760mm x 1020mm x780mm 440KG
