16ch HD-TVI Video convertidor

16ch HD-TVI Video convertidor

HD Analog Video Optical Transmitter and Receiver

For CCTV Security Surveillance

The converter can simultaneously transmit 1-16 channels HD-CVI/TVI/AHD over one multimode or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It is without loss and non-compression real time transmission.

Feature
> Non-compression coding technology.
> Automatically identify formats of input videos.
> Support 1~16ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable.
> DC 5V power supply.
> Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc.
> Through LED indicators to inform its functional mode.
> Industrial wide range of operational temperature.
> Plug and play, simple installation.

Application
> City traffic monitoring system
> Public security, safe city monitoring system
> Highway security protection, charging system
> Building, campus monitoring net
> Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
> Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
> electric power, oilfield, television program transmission system
> Gymnasium (live video, audio transmission)

BNC Interface

Gold-plated ferrule interfaces

Connected with the BNC interface

it can enhance the signal reception rate

Ensuring the picture is more clear

FC interface

FC Fiber optic interfaces
The analog signal convertered into an optical signal
by Optical Video Converter
Pass through this interface input Optical fiber

Data Terminal Blocks

Encoded type: RS485/RS232/RS232/Manchester
Data Rate: DC~300kbps
BER: ≤10-9

Product Picture

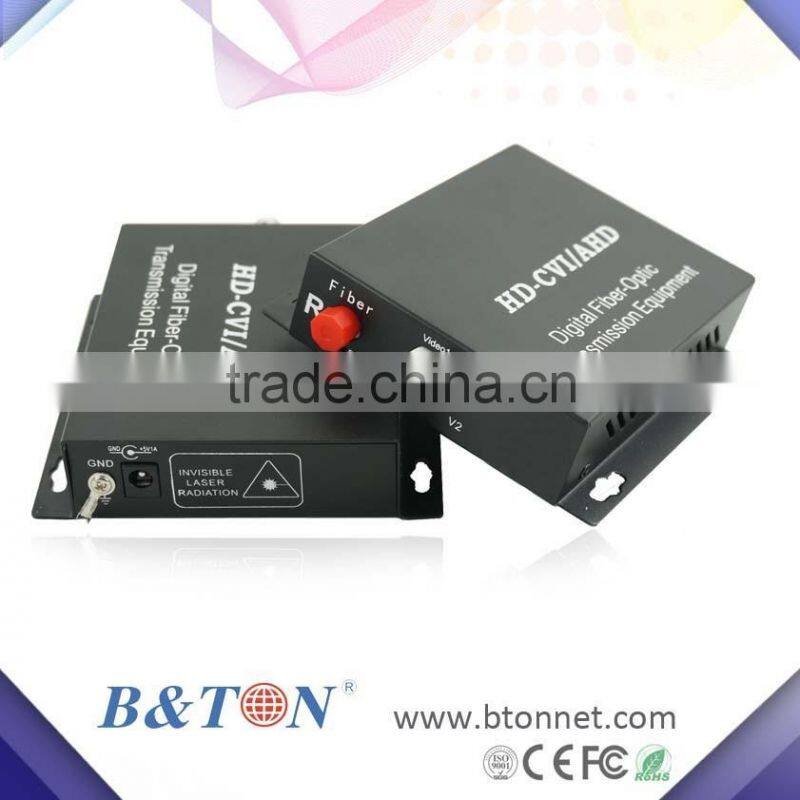

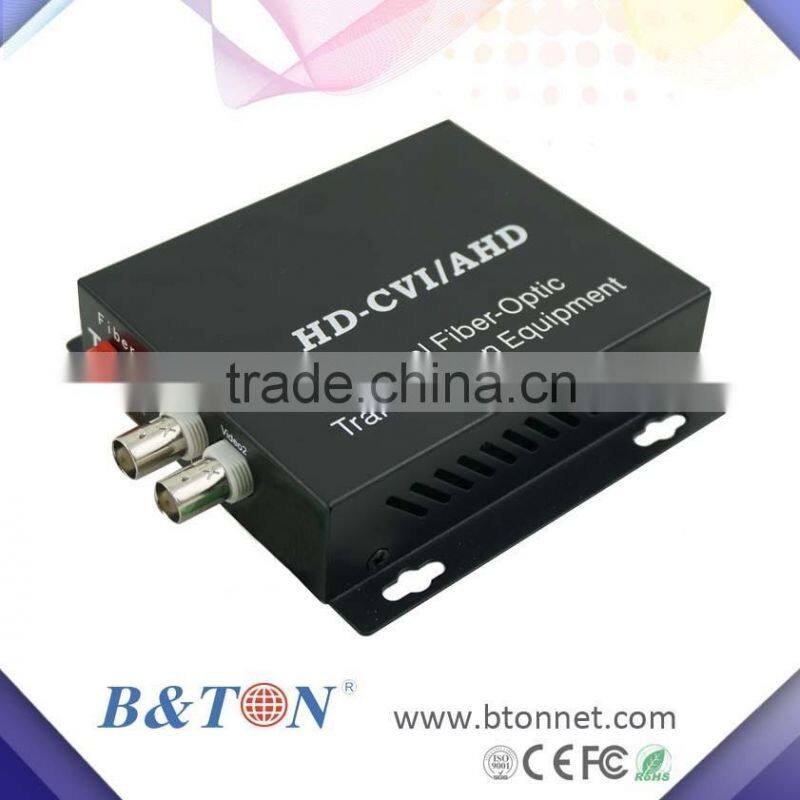

HD Analog Video to Fiber Converter | 1V/2V/4V/8V/16V HD-CVI optic transceiver

Model No.: BT-H-1VF-T/R
Description: 1ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-H-1V1DF-T/R
Description: 1ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-H-2VF-T/R
Description: 2ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-H-2V1DF-T/R
Description: 2ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;

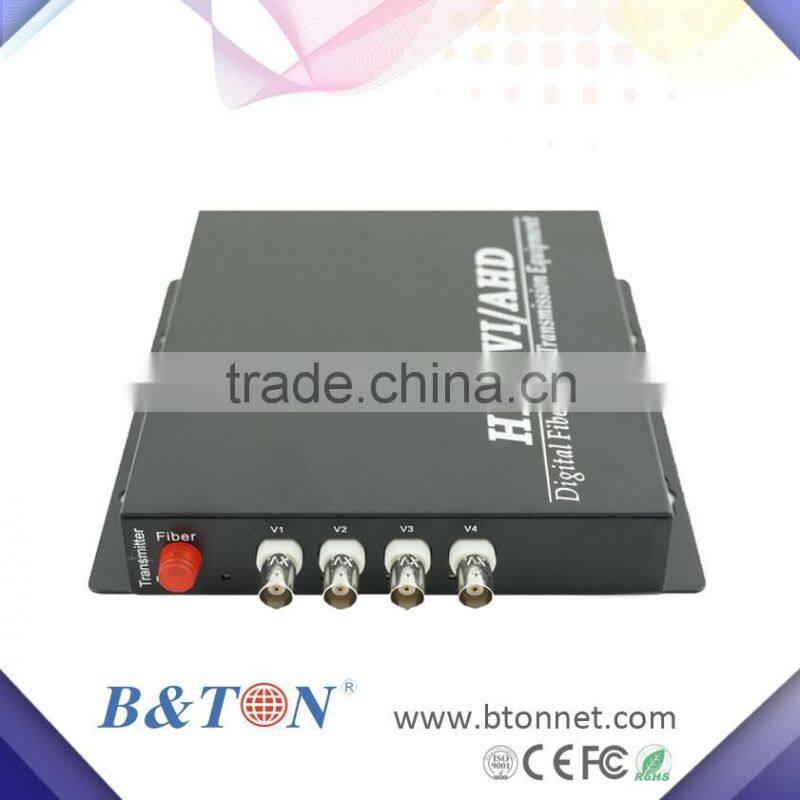

Model No.: BT-H-4VF-T/R
Description: 4ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-H-4V1DF-T/R
Description: 4ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;

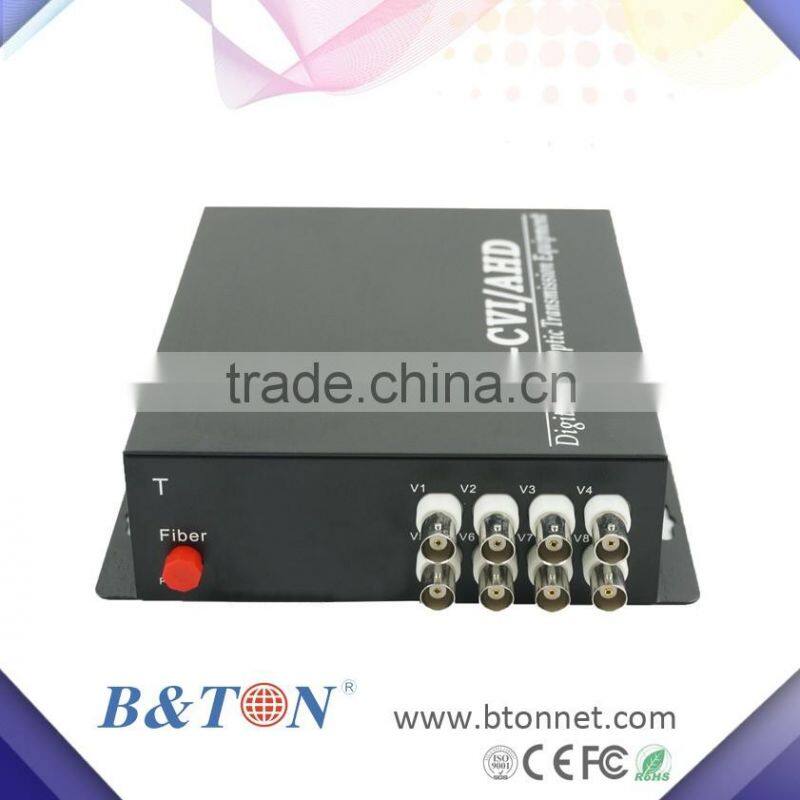

Model No.: BT-H-8VF-T/R
Description: 8ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-H-8V1DF-T/R
Description: 8ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;

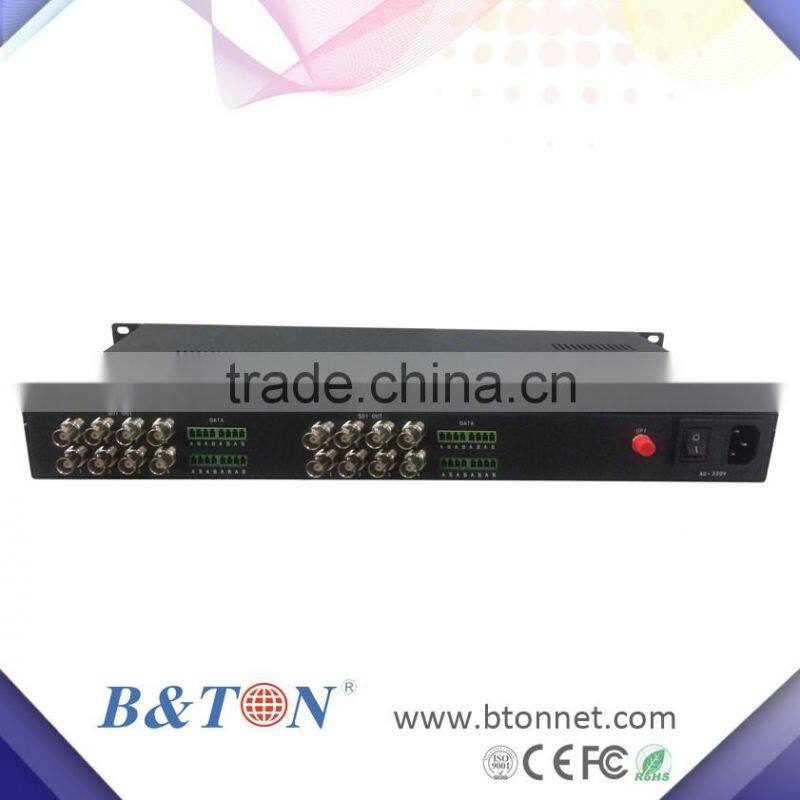

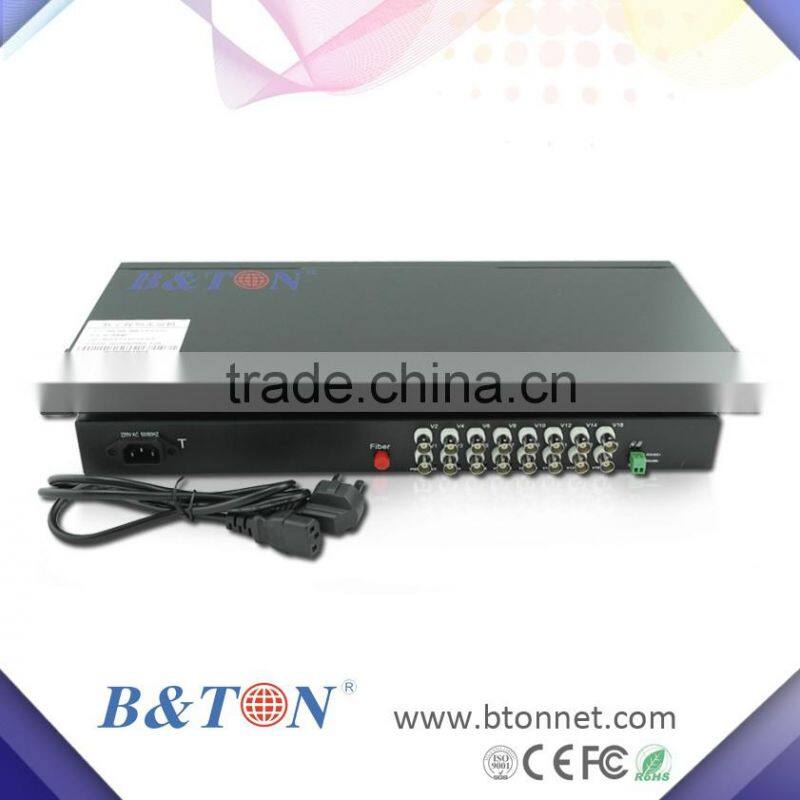

Model No.: BT-HD-16VF-T/R
Description: 16ch video only, Single fiber, single mode, FC, 20km transmitter and receiver;

Model No.: BT-H-16V1DF-T/R
Description: 16ch video,1ch reverse RS485 data, Single fiber, single mode, FC, 20km transmitter and receiver;

Video Transmitter and Receiver

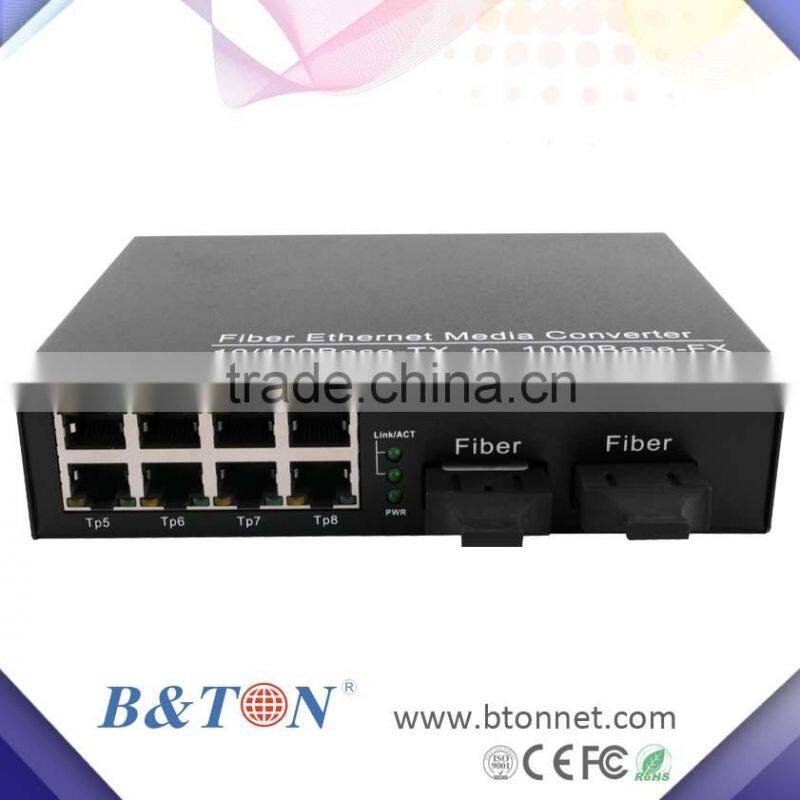

Fiber Media Converter

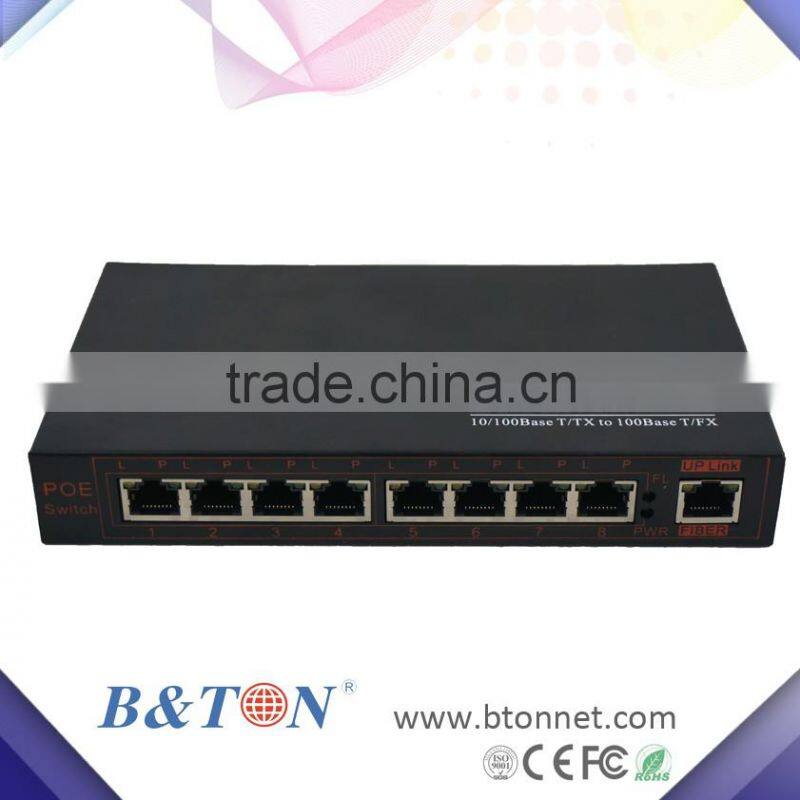

10/100Mbps, 10/100/1000Mbps, Unmanaged Fiber Switch, SFP/LC Fiber Switch, POE Switch, Industrial fiber Switch

Introduction:

Shenzhen BTON Weiye Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules .All of these products are widely applied in many industries like telecom ,traffic, government organization, campus network ,oil industry, electric power system, and public security etc. B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China.

Exhibition

Delivery

1. Method of shippment

The goods will be sent by International express, such as DHL/Fedex/UPS/TNT. It takes 3~7 days!

2. Delivery time

Sample: 2 days
Order: Normal 3~7 days
Mass production: It depends on the quantity and the season when you order. Please contact Jessica to ask the lead time.
