Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Support RS232 Bidirectional IR 4k Hdmi Hdbt Utp Extender 100m by Cat6 With Factory Price

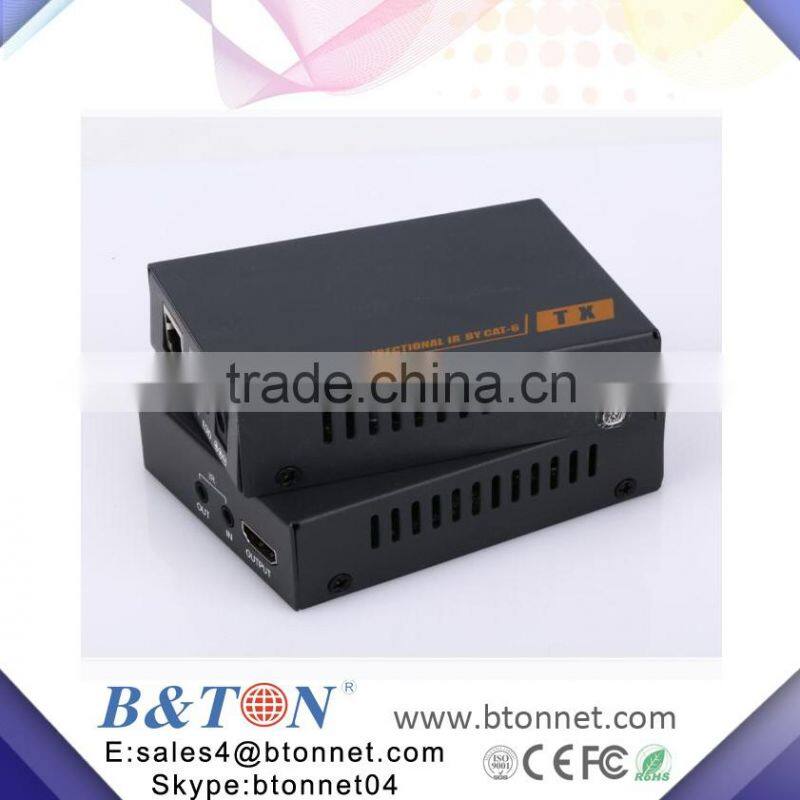

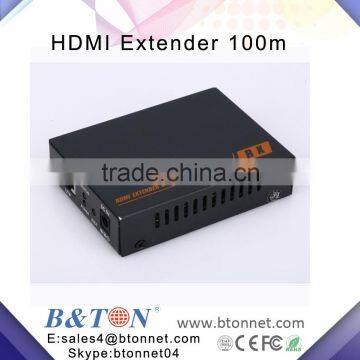

Support RS232 Bidirectional IR 4k Hdmi Hdbt Utp Extender 100m by Cat6 With Factory Price

Name: Support RS232 Bidirectional IR 4k Hdmi Hdbt Utp Extender 100m by Cat6 With Factory Price
Brand: B&TON
SKU: 112983199
Availability: InStock

Shenzhen Bton Weiye Technology Co., Ltd.

Support RS232 Bidirectional IR 4k Hdmi Hdbt Utp Extender 100m by Cat6 With Factory Price thumbnail-1

Support RS232 Bidirectional IR 4k Hdmi Hdbt Utp Extender 100m by Cat6 With Factory Price thumbnail-2

Support RS232 Bidirectional IR 4k Hdmi Hdbt Utp Extender 100m by Cat6 With Factory Price thumbnail-3

Support RS232 Bidirectional IR 4k Hdmi Hdbt Utp Extender 100m by Cat6 With Factory Price photo-1

Support RS232 Bidirectional IR 4k Hdmi Hdbt Utp Extender 100m by Cat6 With Factory Price photo-2

Support RS232 Bidirectional IR 4k Hdmi Hdbt Utp Extender 100m by Cat6 With Factory Price photo-3

US$ 1 - 80 MOQ: 1 Pair

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

B&TON

Model Number:

BT-150m

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name B&TON

Model Number BT-150m

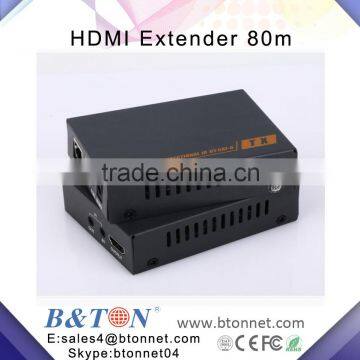

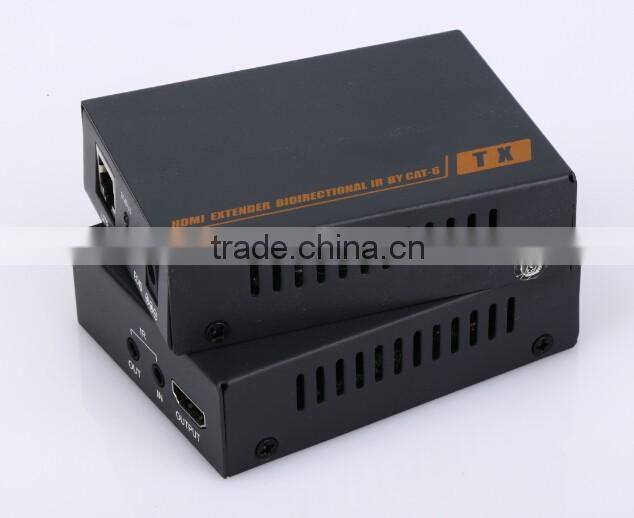

HDMI Extender to UTP 150m by cat5/6

1.0 Introduction

HDMI Over Ethernet is based on TCP/IP standard. It transmit your HD display with the high resolutions up to 395 feet (120 meters) away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard,you can extend your HD video to multiple displays by using an Ethernet Switch.

Specifications

Ø Following TCP/IP standard.
Ø Support HDMI1.3 protocol.
Ø HDCP1.1 & 1.2 protocol compliant
Ø Support point-to-point mode, one point-to-many mode and cascade connection mode.

HDTV Resolutions	480p,576p,720p,1080p
Audio	Sample rate:32kHz, 44.1kHz and 48kHz
HDMI	HDMI 1.3
HDCP	HDMI 1.2
Power adapter	Input: 100V - 240V (50 - 60Hz) Output: 5V/1A
Power consumption	HDMI Sender: 3W HDMI Receiver: 3W
Size(L-W-H)	100×60×25mm
Weight	128g*2PCS
Operating Temperature/Humidity	0℃ - 70℃ / 10% - 80%RH(no condensation)
Storage Temperature/Humidity	-10℃ - 80℃/ 5% -90% RH(no condensation)

2.0 Panel Description

2.1 HDMI Sender

5V/1A	Supply power for the Sender
RESET	Hold down the key for 10 seconds, the model will Restore the default setting
HDMI - IN	Connect HDMI Source to this Port.
STATUS	When system start up, the Green LED will be on,When transmit video, the led will blink.
Power	Power on, The Red led is on

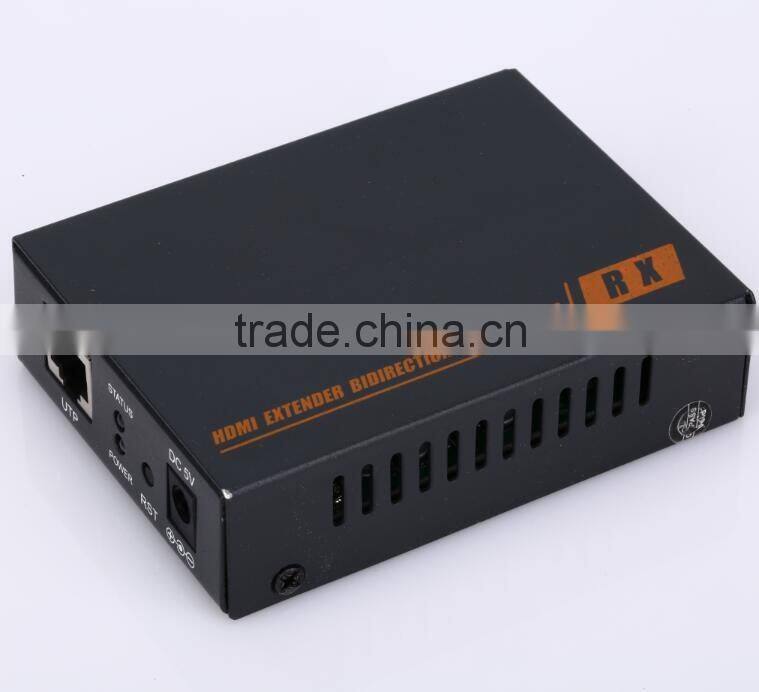

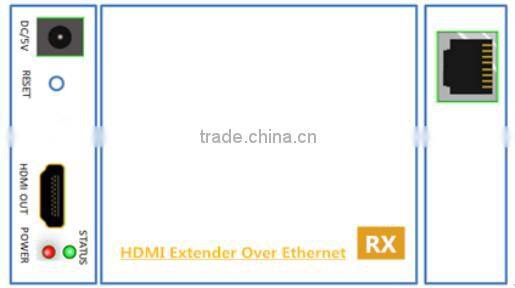

HDMI Receiver

5V/1A	Supply power for the Receiver
RESET	Hold down the key for 10 seconds, the model will Restore the default setting
HDMI - Out	Connect HDMI sink device to this Port.
STATUS	When system start up, the Green LED will be on,When transmit video, the led will blink.
Power	Power on, The Red led is on

5,Connection and operation

1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI IN of Sender.

2) Connect the HDMI out of Receiver to HDTV display.

3) Connect the IR receiver to the Receiver IR IN Port.

4) Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.

5) Plug two pieces of 5V power supply into the Sender and Receiver.

6) Power on the HDTV display and HDMI source.

6.Application diagram

Application 1 Application 2

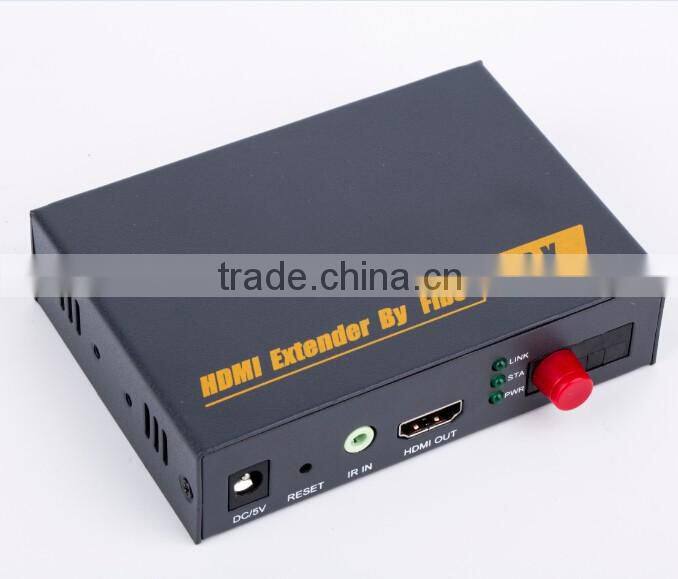

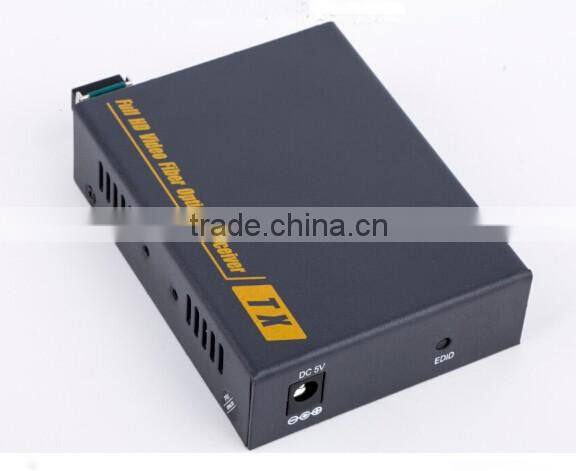

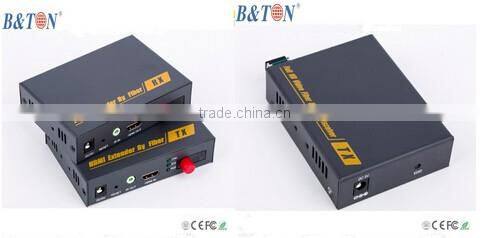

HDMI over Fiber

BT-200 Compress HDMI:

BT-106 Uncompress HDMI 1080P

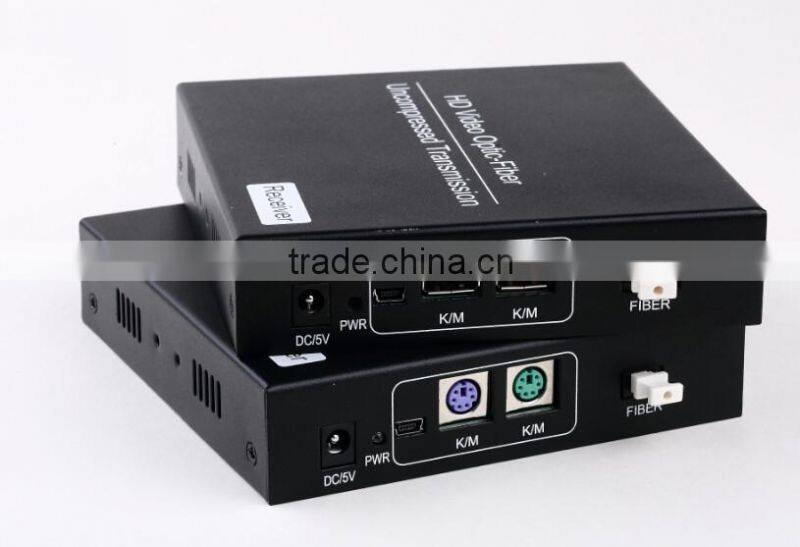

Uncompress HDMI +KVM

HDMI to UTP :40M,60M,100M,150M

Comapany information

Established in 2009, Shenzhen BTON Technology Co., Ltd. is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Optical transeiver, Media converter, Video converter, to Industrial switch . Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

Our Service:

B&TON support OEM and ODM for you,logo printing and packing box can customized as you need.

CE/FCC/RoHS Certificates

Our Factory:

Contact:

Sherry

Email: sales4(at)

skype:btonnet04

Tel/Wechat/Whats app:+86 13590418442

QQ:814708958

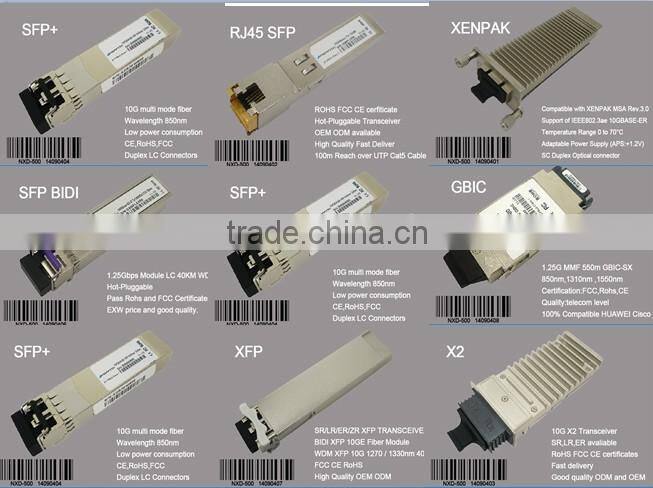

Other Fiber Optical Products Linking:

SFP Tramsceiver: 155M,1.25G,10GSFP+,XFP,XENPAK,CWDM,DWDM,Copper SFP,GBIC,40G QSFP+...
