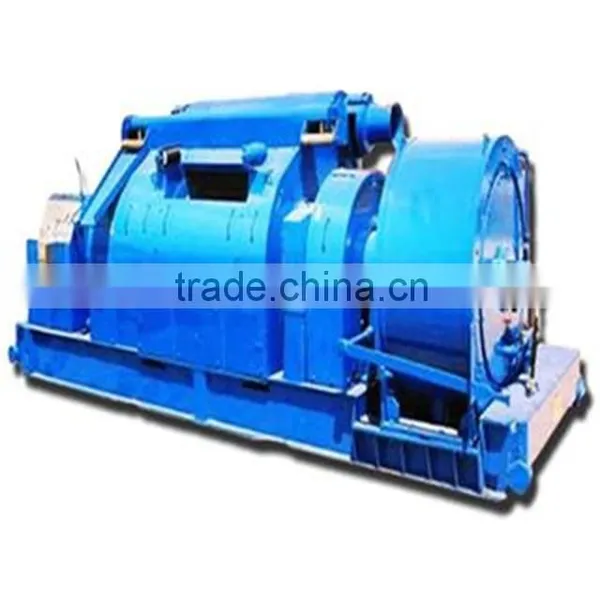

Help CenterJC40 API 7K Standrad Drawworks JC40 for Oil Well Drilling Usage
Related Products
-
JC40D API 7K Standrad Drawworks JC40D for Oil Well Drilling UsageUS$ 650,000 - 800,000MOQ: 1 Set -
JC50 API 7K Standrad Drawworks JC50 for Oil Well Drilling UsageUS$ 650,000 - 800,000MOQ: 1 Set
-
JC50D API 7K Standrad Drawworks JC50D for Oil Well Drilling UsageUS$ 650,000 - 800,000MOQ: 1 Set
-
JC70 API 7K Standrad Drawworks JC70 for Oil Well Drilling UsageUS$ 650,000 - 800,000MOQ: 1 Set
-
JC70D API 7K Standrad Drawworks JC70D for Oil Well Drilling UsageUS$ 650,000 - 800,000MOQ: 1 Set
Specifications
One feature of Uniaxial winch: high gear transmission efficiency, low vibration, low noise , long service life.
Product Features
Uniaxial winch features:
1 . Uniaxial winch the main components AC inverter motor , gear reducer, hydraulic disc brakes, rack winch drum shaft assembly, automatic drilling equipment and winch control system components.
2 high gear transmission efficiency, low vibration, low noise , long service life.
3 winch CVT done by CNC AC variable speed control system.
4 grooved drum winch uniaxial structure , slotted to API specification.
5 . Winch main brake is hydraulic disc brakes , brake assist Eaton as dynamic braking or braking .
6 winches with separate CNC AC variable frequency drives and computer control systems , enabling automatic drilling ;
Triaxial four -speed chain drive winch features:
1. shaft supports are made of roller bearings, shaft material are alloy steel .
2. drive chain were forced lubrication .
3. drum grooving. Drum high and low end with a ventilating air tube clutch . Cyclic rim with brake
Water cooled , disc brake rotors using forced circulation water cooling or air cooling , on the rim and brake disc friction
Surface by surface hardening , wear resistance and long service life.
4. sprocket tooth profile surface by IF quenching .
5. main brake band brake or hydraulic disc brakes. Auxiliary brake is dynamic braking , eddy current brake
Or Eaton brakes.
Main Parameter of Drawworks
Model |
JC40 |
JC40D |
JC50 |
JC50D |
JC70 |
JC70D |
Nominal drilling depth(km) |
2.5-4.0 |
2.5-4.0 |
3.5-5.0 |
3.5-5.0 |
4.5-7.0 |
4.5-7.0 |
Rated Power(KW) |
735 |
735 |
1100 |
1100 |
1470 |
1470 |
Max fast line pull (kN) |
275 |
275 |
340 |
340 |
485 |
485 |
Rope diameter(in) |
2001/1/4 |
2001/1/4 |
2001/3/8 |
2001/3/8 |
2001/1/2 |
2001/1/2 |
Drum (Dia.×L) (mm) |
640×1235 |
640×1235 |
685×1245 |
685×1245 |
770×1436 |
770×1436 |
Weight(kg) |
28240 |
37500 |
45210 |
48000 |
43000 |
61000 |
