2Ch HD CVI/TVI/AHD Video to Fiber Converter 720P 1080P
HD-CVI/TVI/AHD to Fiber Converter
The converter can simultaneously transmit 1-16 channels HD-CVI/TVI/AHD over one multitude or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.Compatible with AHD-H, AHD-M, AHD-L. It is without loss and non-compression real time transmission.
Feature
1. Non-compression coding technology.
2. Automatically identify formats of input videos.
3. Support 1~16ch AHD signal and controlling data simultaneously through coaxial cable.
4.DC 5V power supply.
5. Support 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30 video etc.
6.Through LED indicators to inform its functional mode.
7.Industrial wide range of operational temperature.
8. Plug and play, simple installation.
Application
1. City traffic monitoring system
2. Public security, safe city monitoring system
3. Highway security protection, charging system
4.Building, campus monitoring net
5. Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
6. Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
7. electric power, oilfield, television program transmission system
8. Gymnasium (live video, audio transmission)

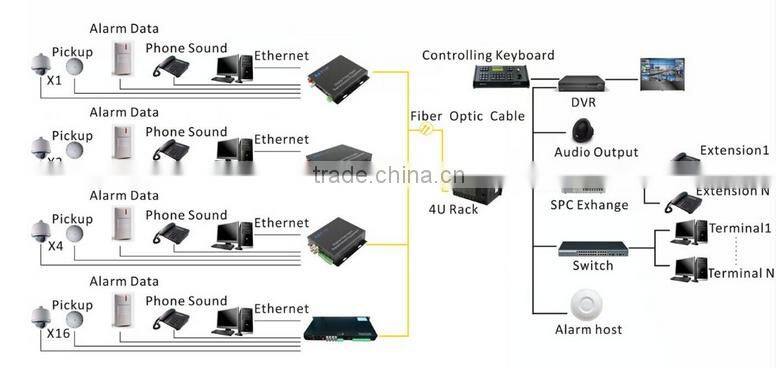

System Connection Diagram
Ordering Information
(Single Fiber, Single mode, FC, 20km Transmitter and Receiver)
Features
Number of Channels 1,2,4,16
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°

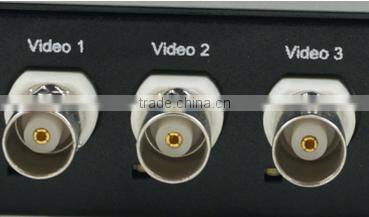

Connector BNC

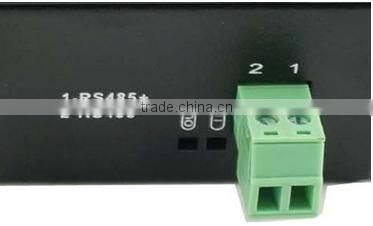

Data
Transmission Media Coaxial cable
Baud Rate 1200～9600bit/s
Bit Error Rate ≦10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures (MTBF) ＞100 000 hours

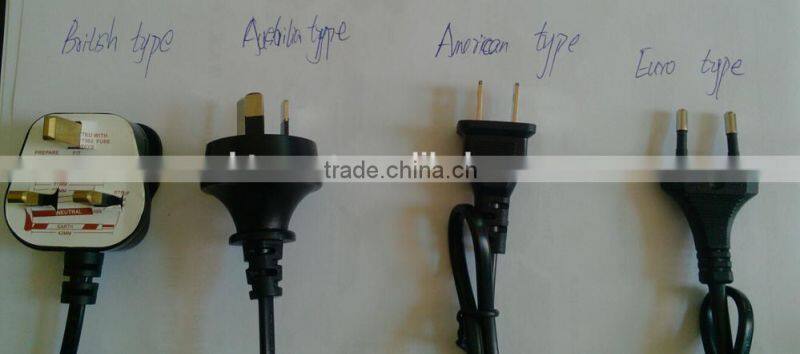

Power Charger type
British type,Amercian type,European type,Austrilia Type
1.City traffic monitoring system
2. Public security, safe city monitoring system
3. Highway security protection, charging system
4.Building, campus monitoring net
5.Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
6.Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
7. electric power, oilfield, television program transmission system
8. Gymnasium (live video, audio transmission)
Shenzhen BTON Weiye Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules .All of these products are widely applied in many industries like telecom ,traffic, government organization, campus network ,oil industry, electric power system, and public security etc. B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China
