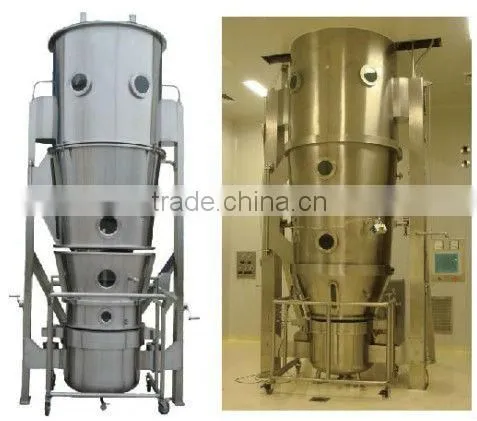

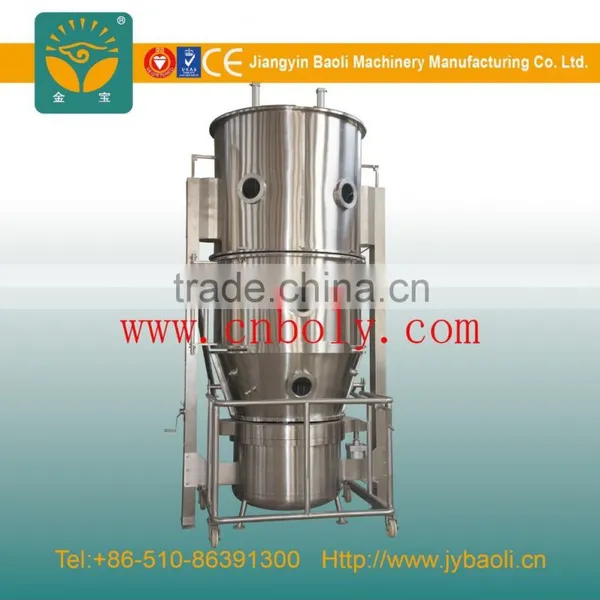

Help CenterChemical Product Fluid Bed Granulator Machine
Related Products
-
Rotating Granulator Machine for Chick Monosodium Glutamate FactoryUS$ 4,300 - 6,300MOQ: 1 Set -
Plastic Product Swing Granules-Maker With Smooth RunningUS$ 2,000 - 5,000MOQ: 1 Set
-
Ceramics Swing Granules-Maker With Stainless Steel MaterialUS$ 1,600 - 6,800MOQ: 1 Set
-
Malt Sugar Swing Granules-Maker With GMP StandardUS$ 1,600 - 6,800MOQ: 1 Set
-
China Hot Sale Swing Granules-Maker With Easy OperationUS$ 2,000 - 5,000MOQ: 1 Set
Specifications
The mechanism for screw extrusion granules, rock granules, wet high-speed mixing granulation.
Principle
The powder granule the container (fluidization bed) appears the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Applications
Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on.
Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
Pharmaceutical industry: tablet
Features
Because of powder Granulating, the flow property is improved and the dust is reduced;
Because of powder Granulating, its solving property is improved;
The mixing, Granulating and drying can be completed in one step inside the machine;
The operation of equipment is safe because the anti static filtering cloth is adopted;
The operation personnel can not be damaged if explosion take place because there is releasing hole;
The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP
Technical Parameter
| item | unit | type | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capacity | min | kg | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | kg | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
| fan | air volume | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | mmH2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
| weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1300 | 1500 | 1800 | 2000 | |
| steam pressure | Mpa | 0.3-0.6 | |||||||||
| temperature | C | adjustable at the range of room temperature to 120°C | |||||||||
| working time | min | 45-90 (decided in accordance with the properties of raw materials) | |||||||||
| collect rate | % | ≥99 | |||||||||
| noise | dB(A) | ≤75dB(A) (When installation, main machine is separated from fan.) | |||||||||
| overall dimensions | m | 1.0 *0.6 *2.1 |
1.2 *0.7 *2.1 |
1.25 *0.9 *2.5 |
1.6* 1.1* 2.5 |
1.85* 1.4 *3 |
2.2 *1.65 *3.3 |
2.34 *1.7 *3.8 |
2.8 *2.0 *40 |
3 *2.25 *4.4 |
|
If you want to send inquriy to me, could you please tell me?
1 What material you want to convey?
2 What capacity you expect ? (kg/h)
3 What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
Then our communication will be more efficient.
