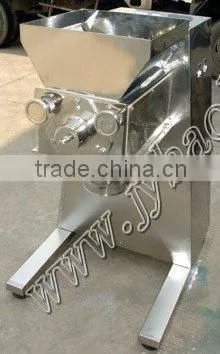

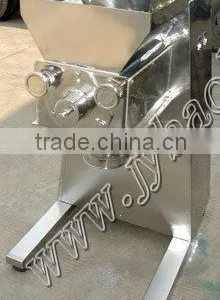

Help CenterCeramics Swing Granules-Maker With Stainless Steel Material
Related Products
-
Malt Sugar Swing Granules-Maker With GMP StandardUS$ 1,600 - 6,800MOQ: 1 Set -
China Hot Sale Swing Granules-Maker With Easy OperationUS$ 2,000 - 5,000MOQ: 1 Set
-
Pharmaceutical Product Swing Granules-Maker for Dry Lumpish MaterialUS$ 1,600 - 6,800MOQ: 1 Set
-
Fluid-Bed Granulator With One Process GranulatingUS$ 8,000 - 20,000MOQ: 1 Set
-
Chemical Super Mixer/Granulator Machine With High SpeedUS$ 16,000 - 85,000MOQ: 1 Set
Main Usage
This machine can make granules from wet powder materials or break down the dry lumpish materials, which is widely used by the industries of pharmacy , chemical ,and foodstuff etc .
Working Method
By driving of mechanism , the cylinder is swing to-and fro to force the target materials squeezed from sieve to make out granules or to smash it as granules.
Technical Data
Model | JB-100 | JB-160 |
Capacity kg/h | 30-200 | 100-300 |
Power (kw) | 1.1 | 2.2 |
Speed of cylinder rpm | 55 | 55 |
Swing angle 0 | 360 | 360 |
Diameter of cylinder mm | 120 | 160 |
Overall size | 700×400×1050 | 1000×800×1300 |
Weight (kg) | 280 | 380 |
Model | JB-250 | JB-300 |
Capacity kg/h | 150-400 | 200-600 |
Power (kw) | 4.0 | 5.5 |
Speed of cylinder rpm | 55 | 55 |
Swing angle 0 | 360 | 360 |
Diameter of cylinder mm | 250 | 300 |
Overall size | 1200×950×1400 | 1300×1050×1500 |
Weight (kg) | 540 | 890 |
Packing
If you want to send inquriy to me about our machine, could you please tell me?
1) What material you want to mix?
2) What capacity you expect ? (kg/batch or litre/batch )
3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V... (We only provide 3P, because our machines are all for industrial use,not for family.)
4) What material of the equipment you want? usually we adopt all stainless steel 304.
Then our communication will be more efficient.
