Wet Granulation Machine
Main Usage
Applied in trades such as pharmaceutical trade, chemical trade as well as food trade etc, more exactly shown as follow: Mixing of powder and powder, Granulation of powder and bond.
Products Characteristics
1.With consistent programmed technology ( man-machine interface if option selected ) , the machine can get assured of stability in quality, as well as easy manual operation for convenience of technological parameter and flow progress.
2.Adopt frequency speed adjustment to control the stirring blade and cutter, easy to control the size of particle.
3.With the rotating shaft hermetically filled with air, it can prevent all dust from compact.
4.With a structure of conical hopper tank, all material can be in uniform rotation.The tank is laid with an interlayer on the bottom, in which water cooling circulation system featuring higher thermostatic performance than air cooling system is furnished, which leads to improve the quality of particles.
5.With automatic lifting of the pan cover, the tank outlet matching with drying device, self-equipped arm-ladder, it is easy to operate.
6.Mouth of material outlet has changed Into arc-shaped, avoiding up dead spaces.
Working Principle
1.The process consists of two programs including mixing and granulating.
2.Powder metrical can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hopper is closed. In the meanwhile, all materials grow up the shape of liquid bridge under continuous effects of conical tank wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen. At last , while opening the hoper outlet, waterish particles are pushed off under the centrifugal effects of blade.
3.These soft particles are formed not dependent on forced extrusion effects, more exactly; mainly these small and uniform particles are formed after continuous cutting under the simile-liquid state. in all, this machine can realize the mutual transformation between different materials.
Technical Data

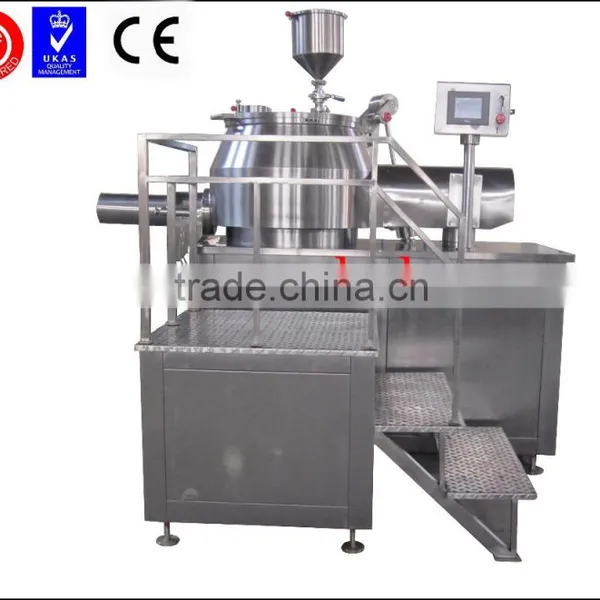

Detail Pictures of HLSG Series Wet Granulation Machine

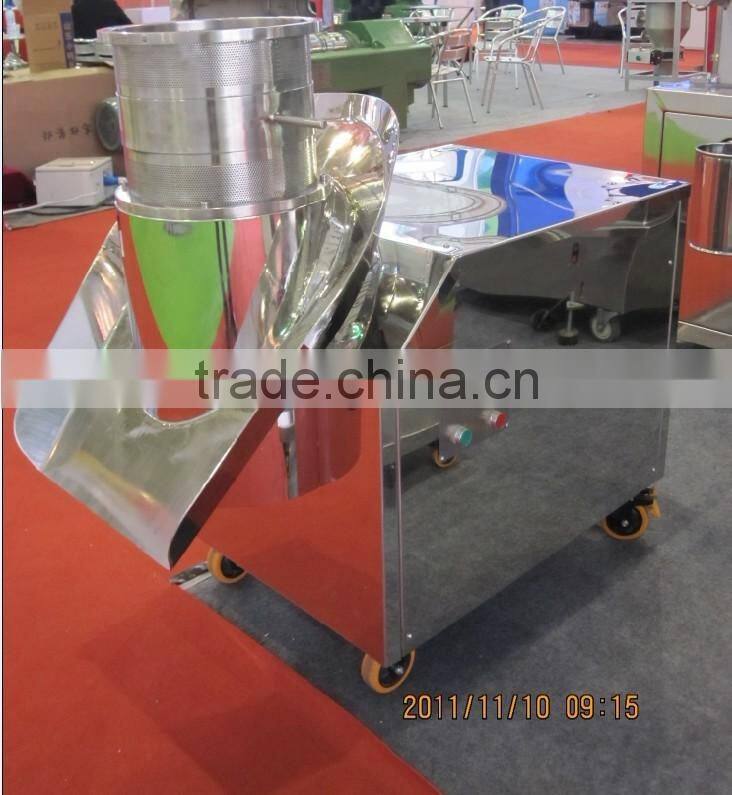

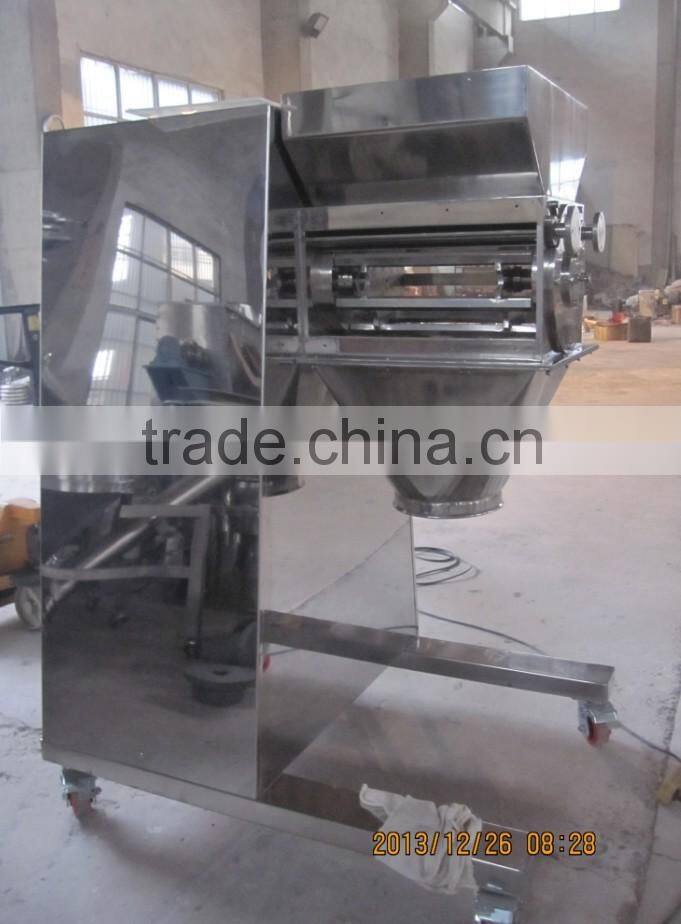

Other Recommended
If you want other machines, please contact me !
If you want to send inquriy to me about our product, could you please tell me?
1) What material you want to grind, is it dry, what is the size of feed material ?
2) What capacity you expect ? (kg/h)
3) What mesh or mm or micron(size) of the powder you want?
4) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
