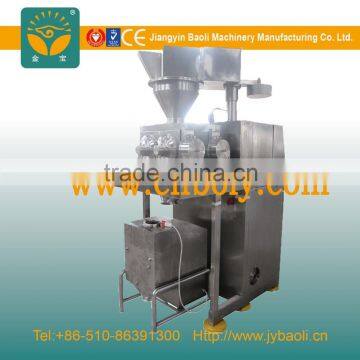

Full Automate Dry Granulator With CE

Full Automate Dry granulator with CE

Working Principle

     It is based on the principle of mechanical squeezing and granulation. Raw materials, which are usually crystal mixtures or powder mixtures with some crystal water, are squeezed into flake-shape before they go through the granulation system. The sieve unit is then used to obtain certain sized final products.

     Raw materials are put into the hopper by hand or vacuum conveyer. The horizontal screws then deliver the raw materials into the squeezing unit, which includes vertical compression rollers, to squeeze raw materials into flake-shape. How long the raw materials stay in the squeezing unit depends on the speed of the compression rollers.

     There is a hydraulic device transferring pressure linearly to the compression rollers and this device can maintain a certain level of pressure itself. The vertical arrangement of the compression rollers can keep the consistency of the product’s density.
     Screens in the screening unit can be changed based on different requirements of the mesh size of the final product.

Merits of JB Series Dry Granulator

     Powder raw materials are made into granular product directly based on users’ requirements, without any intermedium or additive. The final product is even granular with good quality of density. During the smooth process, the material dust is well controlled to reduce the waste. Further, the design of the equipment makes the storage and carriage more convenient. All the solubility, porosity and specific surface area are controllable.

     It is specialized in the area where traditional wet granulators are not suitable in, and the materials are unstable under sticky circumstances.

     JB Series Dry Granulator is energy economic and environmental friendly latest-type equipment. It is much better machine than traditional wet granulators in many aspects, such as saving labors and material resources, and also saving money.

Application of JB Series Dry Granulator

     Pharmaceutical Industry---- granule in both western and Chinese medicines, granule in antibiotic capsules and antibiotic injection, granule in medicines for animals, granule in preparation used in power for dialysis.

     Food Industry----granule in flavoring and seasoning, granule used in refreshment, granule in healthy food.

     Chemical Industry and Others----cosmetic, farm chemical, industrial chemicals, animal’s food, detergent.

Main technical data

Note: Please tell us which model you want. Three models are available: A Conventional model; B explosion proof type ; C HMI model (Human Machine Interface)

The dimensions and configures may vary depending on the type you want. The data above is about the conventional model.

Packing

If you want to send inquriy to me about our  machine, could you please tell me?

1)  What material you want to mix?

2)  What capacity you expect ? (kg/batch or litre/batch )

3)  What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...      (We only provide 3P, because our machines are all for industrial use,not for family.)

4)  What material of the equipment you want? usually we adopt all stainless steel 304.

Then our communication will be more efficient.
