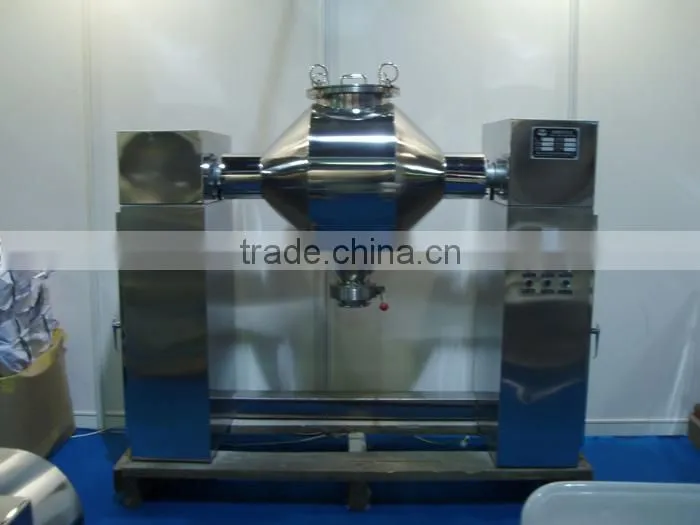

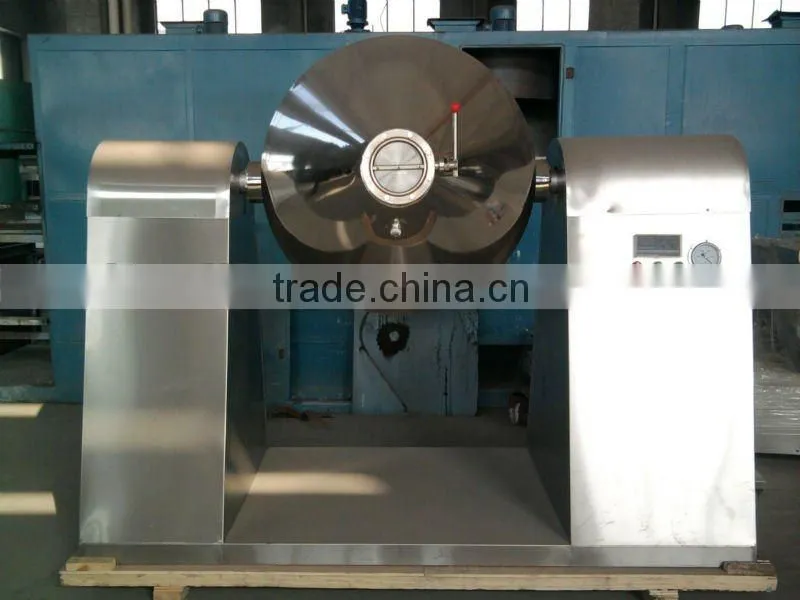

Help CenterJB Series Double Cone Rotary Vacuum Drier
Related Products
-
Chinese Traditional Medicine Square Vacuum DryerUS$ 3,000 - 20,000MOQ: 1 Set -
JB Cylinder/square DryerNegotiableMOQ: 1 Set
-
Tray DryerUS$ 1 - 50,000MOQ: 1 Set
-
Vacuum Tray DryerUS$ 5,800 - 22,000MOQ: 1 Set
-
Traditional Chinese Medicine Sliced Medicinal Herbs Oven Dryer TrayerUS$ 3,000 - 16,000MOQ: 1 Set
Main Usage:
This dryer is suitable to the vucuum drying for power or granule materials of the lines of medicine, foodstuff, and chemical, etc, specially for the drying of following materials including thermal sensitive, easy oxidation, and the one that its crystal cannot be destructed, as well as the one which the solvent inside should be recollected or any stimulated or noxious materials.
Specity:
When the dryer vessel rotated, the heat-receiving surface of target materials are to be replaced every moment to quick the drying speed so that the products inside are ded evenly. Mean while, it is heated indirectly to avoid it being contaminated. Others include no dead angle inside, easy operating and cleansing, the optimized sealing design with, better seal effect, as well as very convenient maintenance etc.
Technical Data:
Model |
JB-50 |
JB-100 |
JB-350 |
JB-500 |
JB-1000 |
JB-1500 |
JB-2000 |
|
Volume(L) |
50 |
100 |
350 |
500 |
1000 |
1500 |
2000 |
|
Speed(rmp) |
10 |
6.5 |
6.5 |
6.5 |
6.5 |
6 |
5 |
|
Power(kw) |
0.8 |
1.1 |
1.5 |
1.5 |
3 |
3 |
4 |
|
Loading coefficient |
≤50% |
|||||||
Heating Medium |
Steam, hot water
-0.08- -0.1
0.25-0.3
≤80
≤140 |
|||||||
Working pressure(Mpa) |
Inner drum |
|||||||
Jacket | ||||||||
Working temperature( °C) |
inner drum |
|||||||
Jacket | ||||||||
Overall size(mm) |
1862*700 *1560
|
1962*700 *1650 |
2210*750 *1980 |
2362*800 *2140 |
2762*1000 *2470 |
2962*1000 *2590 |
3500*1500 *2665 |
|
Weight(kg) |
500 |
600 |
800 |
1000 |
2000 |
2500 |
3000 |
|
Packing
