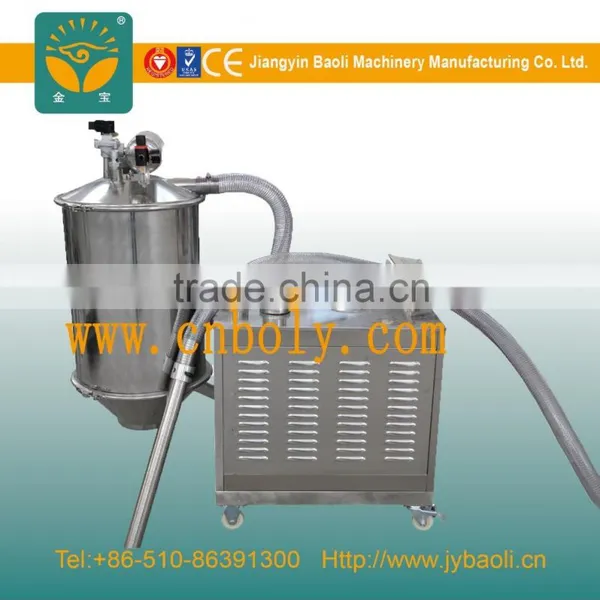

2015 popular food Vacuum Charging Machine for food factory
Main Usage:
This equipment is widely applied in packer, mixer, tablet press machine, vibrating screening machine,capsule filling machine and wetmethod pelletizer etc. Vacuum feeder is easy to operate. Feeding pipe begins to suck materials when press on the feeding switch, when the process of suction finished, vibration device vibrates or back flushing device blowbacks to prevent from occluding the filter. The two process are set and controlled by temporal sequence so that it can circulate for feeding vibration and back flushing.
Work Method:
Vacuum charing machine is a new product, which was developed by our company on the basis of widely absorbing domestic and foreign similar products. Currently, it is the most advanced ,ideal and perfect vacuum conveying equipment of powder material, granular material, powder mixture. Vacuum charing machine can automatically transport a variety of materials to the hoppers of packaging machines, injection molding machine, grinder etc, also, it can convey mixed material directly to the mixer (such as V-type mixer, two-dimensional mixer, three-dimensional mixer etc.), thereby reducing the labor intensity of workers and solving the feeding problem when the powder spills etc.It is preferred equipment of the promotion of clean and civilized production which was chosen by the pharmaceutical factory, food factory through the "GMP" authentication.
Vacuum charing machine consists of vacuum pump(no oil, no water), stainless steel suction Tsui, transmission hose, PE filter (or 316L stainless steel filter), compressed air cleaning devices, pneumatic discharge door devices, vacuum hopper and feed automatic control devices etc.The entire system is designed reasonably and produces beautifully.
Vacuum charing machine is divided into discharging space and consecutive discharging Discharging space is conducive to lower investment cost of the equipment,and convenient to control the level , Consecutive discharging generally used in long-distance, large production of materials at the time of vacuum conveying. In most cases, we recommend the discharging space to users.
Technical Data:
Model |
ZKS-1 |
ZKS-2 |
ZKS-3 |
ZKS-4 |
ZKS-5 |
ZKS-6 |
ZKS-7 |
Motor Power(kw) |
1.5 |
2.2 |
3.0 |
4 |
5.5 |
5.5 |
5.5 |
Conveying capacity(kg/h) |
400 |
600 |
1200 |
2000 |
3000 |
4000 |
6000 |
Woking pictures
If you want to send inquriy to me about our machine, could you please tell me?
1) What material you want to mix?
2) What capacity you expect ? (kg/batch or litre/batch )
3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V... (We only provide 3P, because our machines are all for industrial use,not for family.)
4) What material of the equipment you want? usually we adopt all stainless steel 304.
Then our communication will be more efficient.
