Specifications
1,Hight current Slide Switch &115-230V slide switch2,Certificate UL cUL VDE ENEC CQC ROHS
3,The best service.

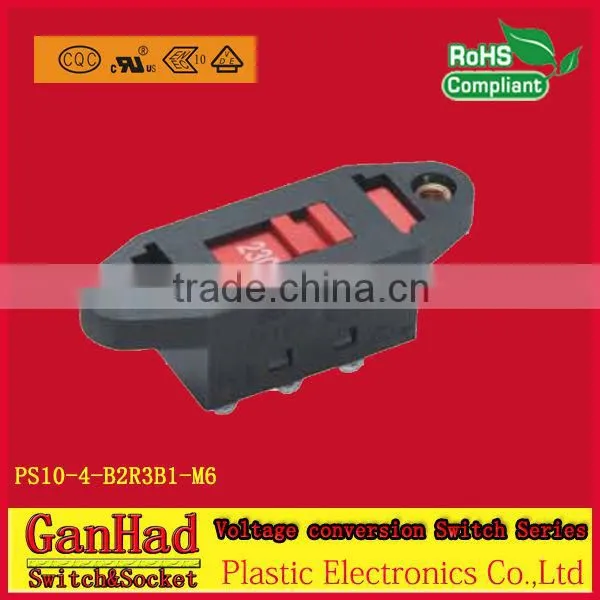

Hight current Slide Switch &115-230V slide switch
Specifications:
Rated Load: 10A 250V AC
12A 250V AC
12A 125V AC
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 6000 cycles
Switch for the environmental protection:
Terminals type: quick contact and soldering
Working temperature: ≤85°C
Working force: 550±250gf
Main material: Body and actuator: PA66 OR PBT
Terminals and movable contact :Brass
Shenzhen Ganhad Plastic Electronics Co.,Ltd: Established in 2001, our factory has been
focusing on switch over a decade, our products are mainly to America, Europe, Asia and Middle East.
Application: Our switches are widely used in the fields of small household products, communication
equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc
Engineering: We serve product design, mould development, plastic part injection, hardware part pressing and product automatic assembly
Quality: We will inspect supplied material, production process and final product, we completely make
quality control for every pass with inspections including withstand voltage, insulating resistance, conductor,
dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm,
environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.
Brand: We strive to maintain PRO-SW as our brand and to make professional switch.
The factory detail:
...
