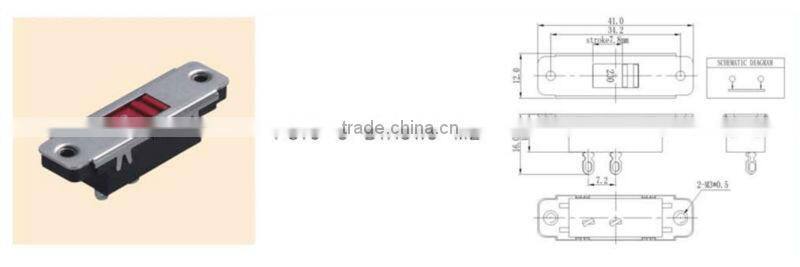

Help CenterHight Current Slide Switch &115-230 Voltage Selector Slide Switch
Related Products
-
Mini Waterproof Slide SwitchUS$ 0.15 - 0.25MOQ: 2000 Pieces -
Superior Quality Defond Slide SwitchUS$ 0.15 - 0.25MOQ: 2000 Pieces
-
Mini Slide Switch /SMD Installation Slide SwitchNegotiableMOQ: 2000 Pieces
-
Superior Quality DC Slide Door SwitchesUS$ 0.15 - 0.25MOQ: 2000 Pieces
-
2P3T Miniature Slide SwitchUS$ 0.15 - 0.25MOQ: 2000 Pieces
Specifications
Certificate UL cUL VDE ENEC CQC ROHSSpecifications:
Rated Load: 10A 250V AC
12A 250V AC
12A 125V AC
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 6000 cycles
Switch for the environmental protection:
Terminals type: quick contact and soldering
Working temperature: ≤85°C
Working force: 550±250gf
Main material: Body and actuator: PBT
Terminals and movable contact :Brass
...
