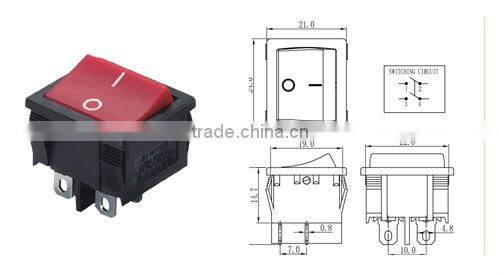

4 Pin Double Pole Rocker Switch
- ShenZhen OR Hongkong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |

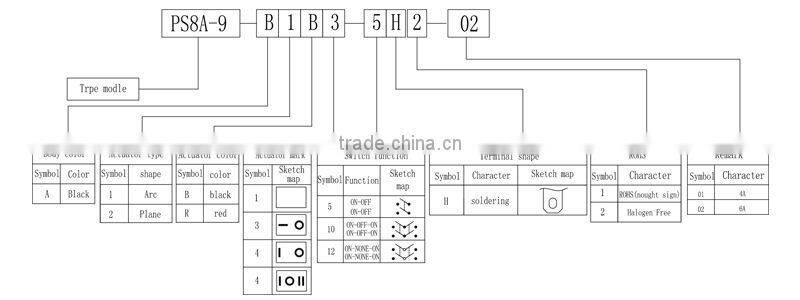

| Model Number | PS8A-9-B1R3-5H-01 | Max. Current | 10A 125V | |
| Max. Voltage | 8A 250V | Mechanical Life | 100000 |
Product Description
Specifications
1)Samples are available within 10pcs2)Certificate UL cUL VDE ENEC CQC
Specifications:
Rated Load: 8A 250V AC 10A 125V AC 1/2HP 250V AC
1/4 125V AC 1/4HP 250V AC
6A/12A 250V AC
6(4)A250V AC
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 100000 cycles
Electrical life 10000 cycles
Switch for the environmental protection:
Terminals type: quick contact and soldering
Working temperature: ≤105°C
Working force: 550±250gf
Main material: Body and actuator PA66
Terminals and movable contact :Brass
