1.Product attributes
Descriptions:
This momentary joystick switch is widely used for industrial control AC 50Hz and DC circuits.It can control magnetic starter, contactor, relay and other electrical circuits.
Specifications:
Rated voltage: 220V / 380V
Rated current: 5A / 10A
Assembly aperture: Dia. 22 mm
Electrical life: >500,000 times
Mechanical life: > 500,000 times
Standard operating environment:
Ambient temperature: -25 ~ +55 degrees Celsius (no ice)
Operating humidity: 45 ~ 85%RH (no condensation)
Contact resistance: ≤50mΩ
Insulation resistance: ≥100Ω
Maximum withstand voltage: 3000V, AC 50Hz
Vibration: 50 Hz, amplitude: Approx. 1mm
Impact resistance: > 10m/s2(about 10G)
Protection grade: IP55
Overall size: 12.3 x 4cm / 4.84 x 1.57inch
Weight: 124g
Package Includes:
1 x Joystick Switch

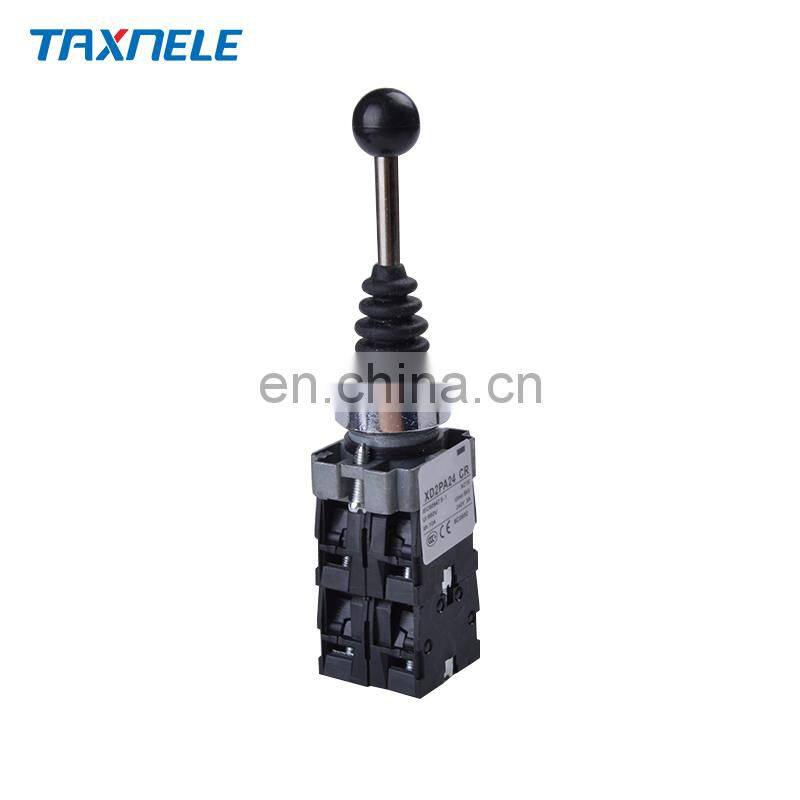

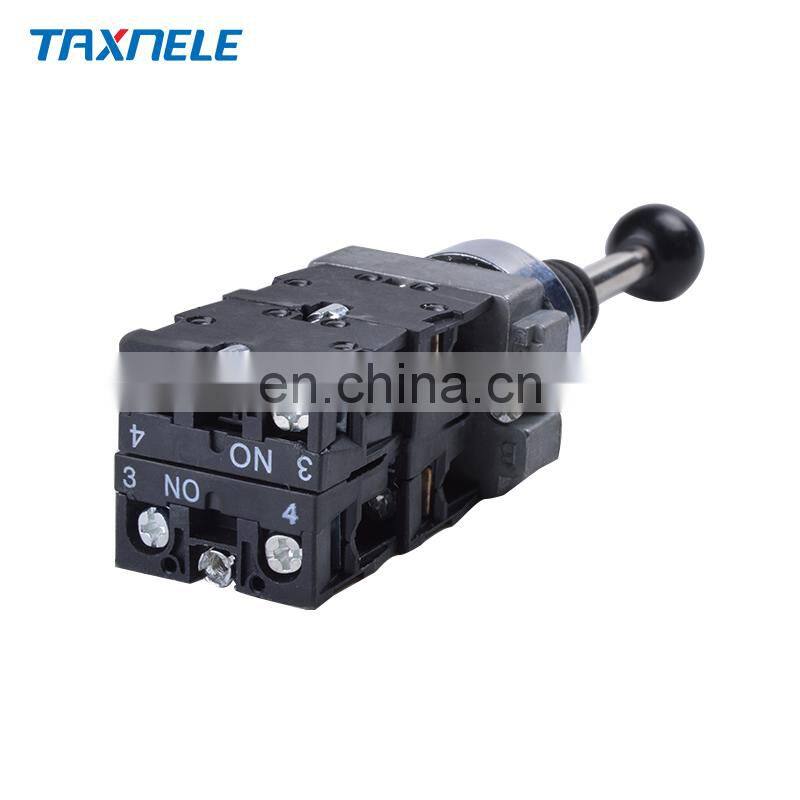

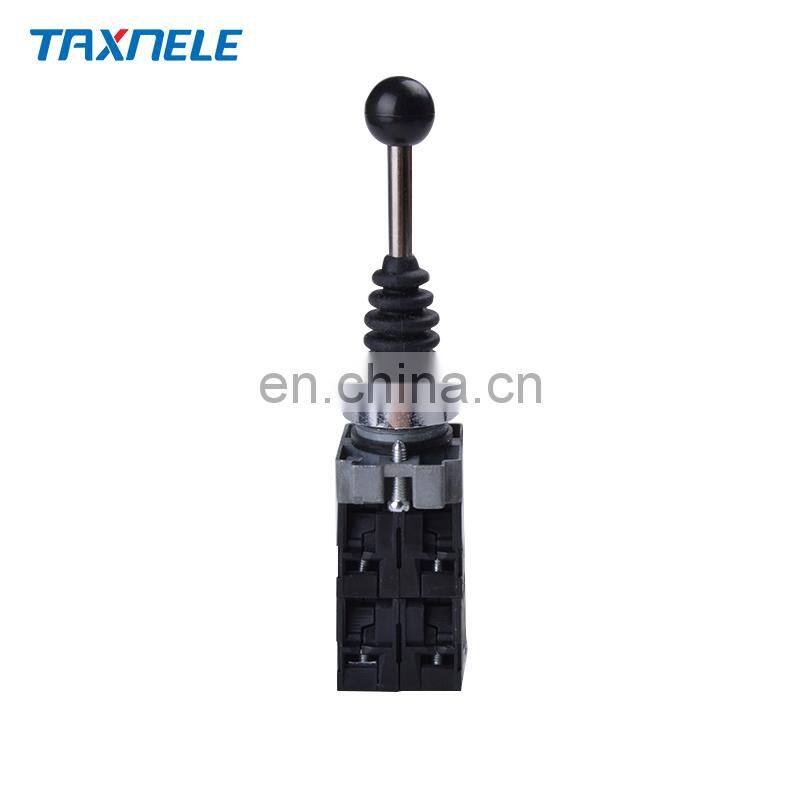

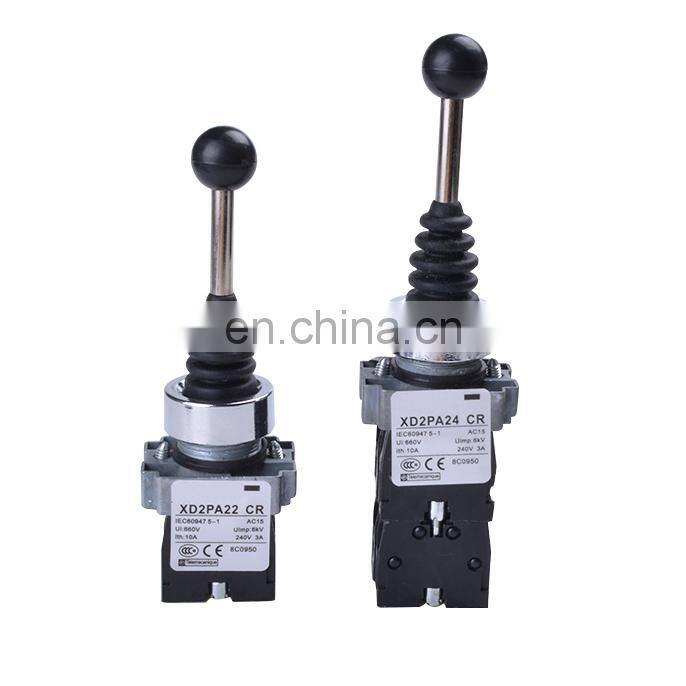

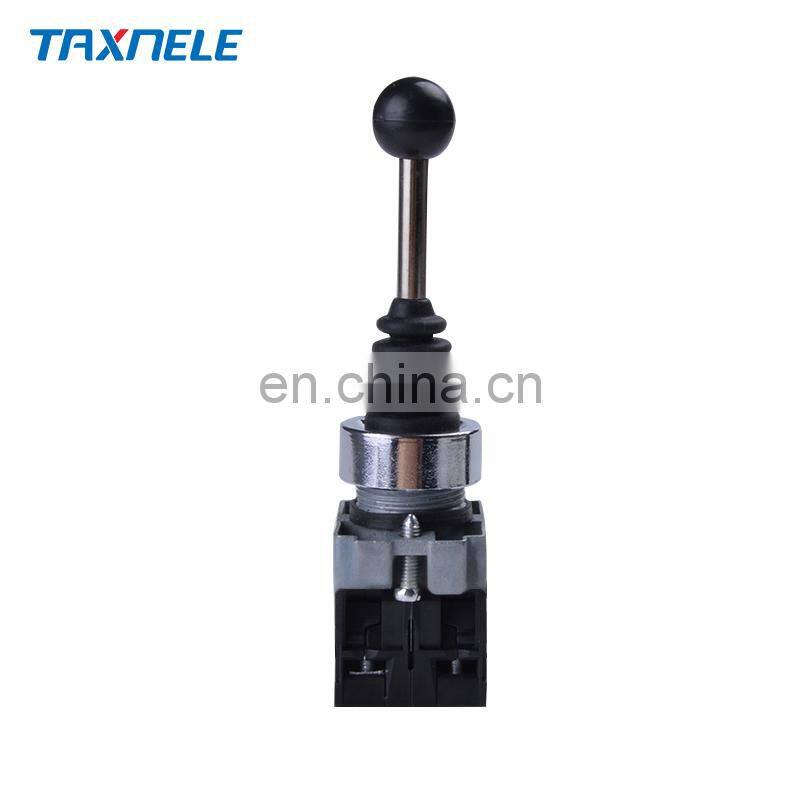

2.Product display
