Home > Products > Rocker Switch series > Single Pole Rocker Switches

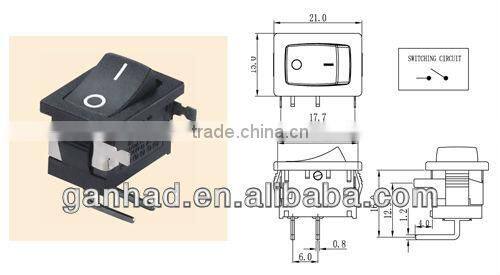

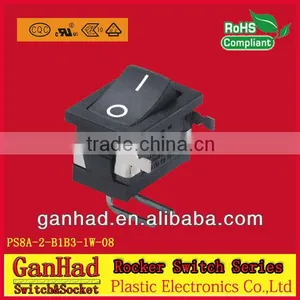

Single Pole Rocker Switches
- ShenZhen OR Hongkong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | PS8A-1-B1B3-1H-10 | Max. Current | 10A 125V | |
| Max. Voltage | 8A 250V | Mechanical Life | 100000 |
Product Description
Specifications
1.Single Pole taiheng rocker switches2.UL .cUL.VDE.CQC;
3.Comply with ROHS/HF;
4.Design as
SPECIFICATION:
Rating | 8A 250VAC 10A 125VAC |
Initial Contact Resistance | 50mΩ max. |
Insulation resistance | 100MΩ |
Withstand voltage | 1500VAC for terminal to terminal 1 minute 3000VAC for terminal to body 1 minute |
Mechanical life | 100000 cycles |
Electrical life | 10000 cycles |
Working temperature | ≤105°C |
Working force | 550±250gf |
Main material | Body : PA66 |
Actuator : PA66 | |
Terminals and movable contact : Brass |
Our advantage :
1. 4 pin double pole taiheng rocker switches
2.UL .cUL.VDE.CQC;
3.Comply with ROHS/HF;
4.Design as requirement.
Packaging standards:
About the sample:
All samples requested by customers are delivered within 3days after confirming, and Samples are available within 10-15pcs. Offering anytime without delay by email,fax or air post.price is based on the demand quality per lot,newest products brochure is offered to clients per year.
Our Factory picture :
...
