Home > Products > Rocker Switch series > Single Pole Rocket Swtich&6A250V 8A 250V Rocker Switch

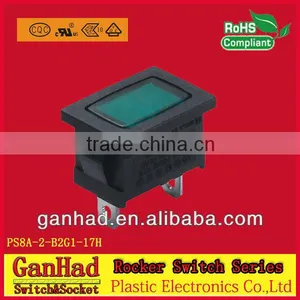

Single Pole Rocket Swtich&6A250V 8A 250V Rocker Switch
Negotiable
/ Piece
1000 Pieces(Min. Order)
- ShenZhen OR Hongkong
- T/T
You May Like
-
Single Pole Rocket Swtich&6A250V 8A 250V Rocker Switch
-
Round Appliance Rocder Switch ON OFF
-
Round Appliance Rocker Switch ON OFF&8A 250V UL ENEC Rocker Swtich
-
4P Double Rocker Switch&ON OFF DPST Lighted Rocker Swtich
-
Double Rocker Switch&lighted 120v 16A/250Vrocker Switch
-
Superior Quality Rocker Switch &lighted 120v 16A/250Vrocker Switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | PS8A-2-B2G1-17H | Max. Current | 10A 125V | |
| Max. Voltage | 8A 250V | Mechanical Life | 100000 |
Product Description
Specifications
1)Samples are available within 10pcs2)Certificate UL cUL VDE ENEC CQC
SPECIFICATION:
Rating | 8A 250VAC 10A 125VAC |
Initial Contact Resistance | 50mΩ max. |
Insulation resistance | 100MΩ |
Withstand voltage | 1500VAC for terminal to terminal 1 minute 3000VAC for terminal to body 1 minute |
Mechanical life | 100000 cycles |
Electrical life | 10000 cycles |
Working temperature | ≤105°C |
Working force | 550±250gf |
Main material | Body : PA66 |
Actuator : PA66 | |
Terminals and movable contact : Brass |
