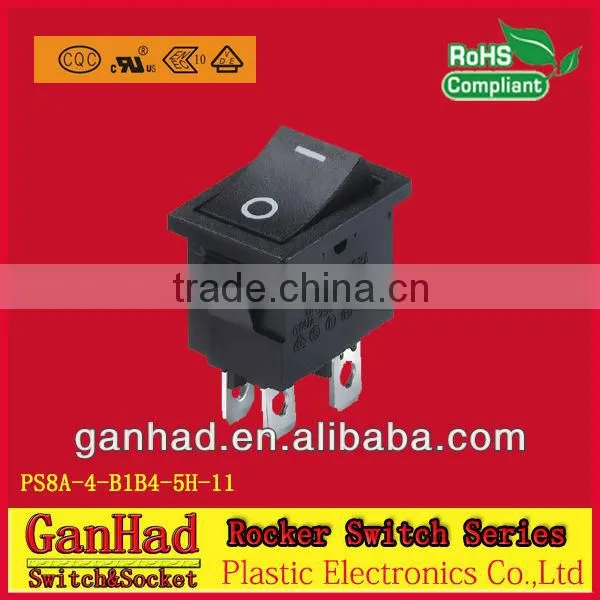

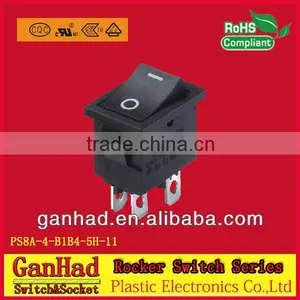

4P Double Rocker Switch&ON OFF DPST Lighted Rocker Swtich
- ShenZhen OR Hongkong
- T/T
You May Like
-
Double Rocker Switch&lighted 120v 16A/250Vrocker Switch
-
Superior Quality Rocker Switch &lighted 120v 16A/250Vrocker Switch
-
Double Rocker Switch&lighted 120v 16A/250Vrocker Switch
-
Double Rocker Switch&lighted 120v 16A/250Vrocker Switch
-
Double Rocker Switch&lighted 120v 16A/250Vrocker Switch
-
Single Pole Rocker Switch&lighted 120v 16A/250Vrocker Switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | PS8A-4-B1B4-5H-11 | Max. Current | 10A 125V | |
| Max. Voltage | 8A 250V | Mechanical Life | 100000 |
Product Description
Specifications
1)Samples are available within 10pcs2)Certificate UL cUL VDE ENEC CQC
Rated Load: 8A 250V AC 10A 125V AC 1/2HP 250V AC
1/4 125V AC 1/4HP 250V AC
6A/12A 250V AC
6(4)A250V AC
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 100000 cycles
Electrical life 10000 cycles
Switch for the environmental protection:
Terminals type: Quick contact and soldering
Working temperature: ≤105°C
Working force: 550±250gf
Main material: Body : PA66
Actuator: PA66 OR PC
Terminals and movable contact : Brass
Certificate : UL cUL VDE ENEC CQC ROHS
