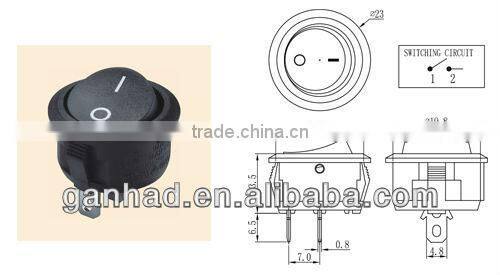

Round Appliance Rocker Switch ON OFF&8A 250V UL ENEC Rocker Swtich

FOB Price

Negotiable / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1)Samples are available within 10pcs
2)Certificate UL cUL VDE ENEC CQC

Specifications:

Rated Load: 8A 250V AC 10A 125V AC 1/2HP 250V AC

1/4 125V AC 1/4HP 250V AC

6A/12A 250V AC

6(4)A250V AC

Initial contact resistance: 50mΩ max.

Insulation resistance: 100MΩ

Withstand voltage 1500VAC for terminal to terminal 1 minute

3000VAC for terminal to body 1 minute

Mechanical life: 100000 cycles

Electrical life 10000 cycles

Switch for the environmental protection:

Terminals type: quick contact and soldering

Working temperature: ≤105°C

Working force: 550±250gf

Main material: Body and actuator PA66

Terminals and movable contact :Brass

Certificate : UL cUL VDE ENEC CQC ROHS
