12v Push Button Switch

Name: 12v Push Button Switch
Brand: Ganhad
SKU: 112934843
Availability: InStock

Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Ganhad

Model Number:

ps8c-5

Shenzhen Ganhad Plastic Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Ganhad

Model Number ps8c-5

Protection Level PA66

Max. Current 8A

Max. Voltage 250

Specifications

18 years manufacturing experience;
UL .cUL.VDE. ENEC approved;
Comply with ROHS/HF directive;
Design as requirement.

SPECIFICATION:

Rating	8A 250VAC
Initial Contact Resistance	50mΩ max.
Insulation resistance	100MΩ
Withstand voltage	1500VAC for terminal to terminal 1 minute 3000VAC for terminal to body 1 minute
Mechanical life	100000 cycles
Electrical life	10000 cycles
Terminals type	Quick contact and soldering
Working temperature	≤85°C
Working force	550±250gf
Main material	Body : PF
	Actuator : PBT
	Terminals and movable contact : Brass
Certificates	UL. VDE,ENEC, CQC

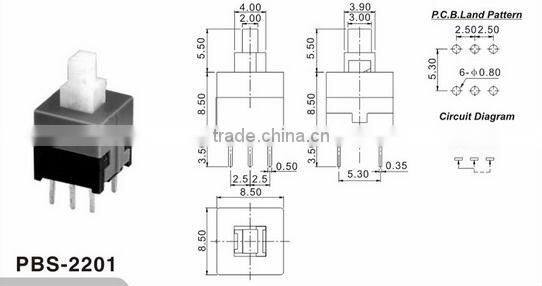

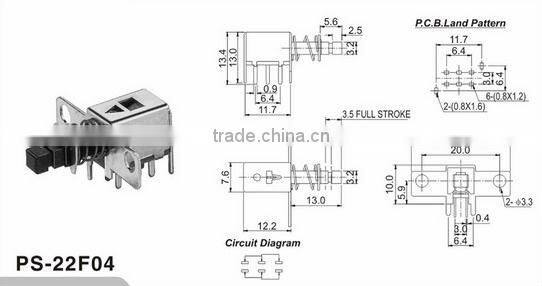

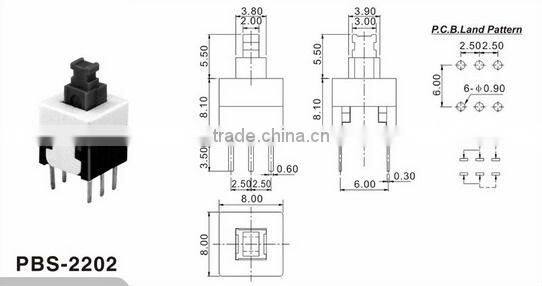

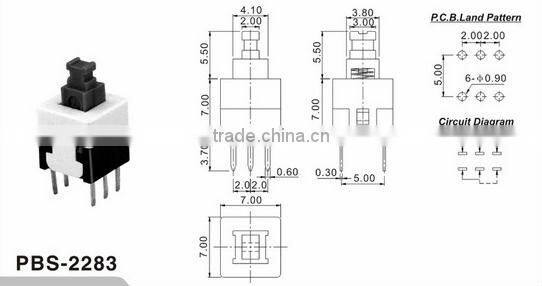

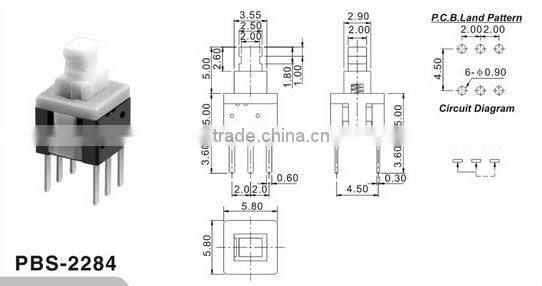

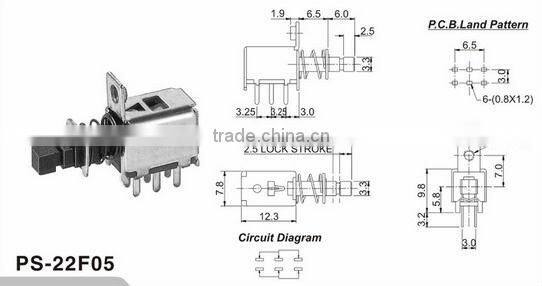

Drawing:

More About Ganhad Switch.

1.25 Years' experience of Manufacture.
2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
3.Original manufacturer with direct factory price, Competitive & Fashionable.
4.High Standard management for quality control.
5.Small order acceptable: 1000pcs are welcome.
6.Safe payment terms: T/T, Western Union, Paypal are available.
7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
8.OEM available, Customers' designs are warmly welcome.
9.Excellent Service.
