Anti-vandal Push Button Switch

Name: Anti-vandal Push Button Switch
Brand: Ganhad
SKU: 112934851
Availability: InStock

Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Ganhad

Model Number:

push button switch

Shenzhen Ganhad Plastic Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Ganhad

Model Number push button switch

Protection Level PA66

Max. Current 8A

Max. Voltage 250V

Specifications

18 years manufacturing experience;
UL .cUL.VDE. ENEC approved;
Comply with ROHS/HF directive;
Design as requirement.

SPECIFICATION:

Rating	8A 250VAC
Initial Contact Resistance	50mΩ max.
Insulation resistance	100MΩ
Withstand voltage	1500VAC for terminal to terminal 1 minute 3000VAC for terminal to body 1 minute
Mechanical life	100000 cycles
Electrical life	10000 cycles
Terminals type	Quick contact and soldering
Working temperature	≤85°C
Working force	550±250gf
Main material	Body : PF
	Actuator : PBT
	Terminals and movable contact : Brass
Certificates	UL. VDE,ENEC, CQC

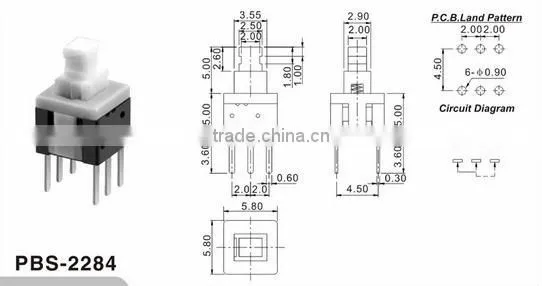

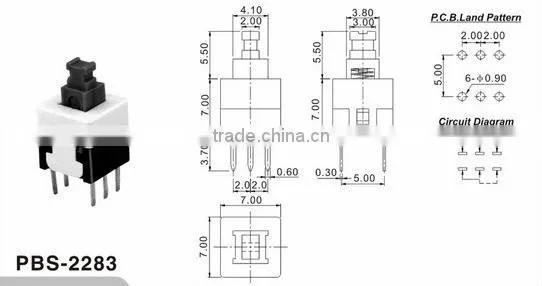

Drawing:

More About Ganhad Switch.

1.25 Years' experience of Manufacture.
2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
3.Original manufacturer with direct factory price, Competitive & Fashionable.
4.High Standard management for quality control.
5.Small order acceptable: 1000pcs are welcome.
6.Safe payment terms: T/T, Western Union, Paypal are available.
7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
8.OEM available, Customers' designs are warmly welcome.
9.Excellent Service.
