Home > Products > NETWORK CABLE > NETWORK CABLE UTP CAT5E FOR COMPUTER

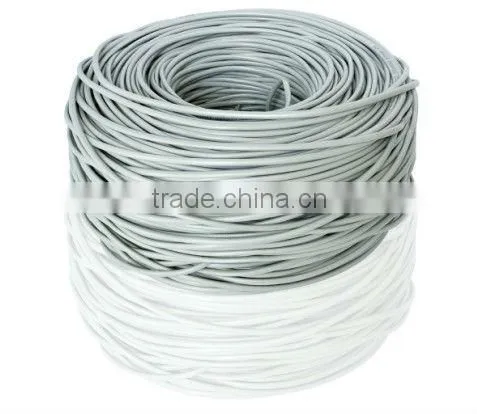

NETWORK CABLE UTP CAT5E FOR COMPUTER
Negotiable
/ Roll
100 Rolls(Min.Order)
- 10000 Roll / Rolls per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card
You May Like
-
Ev charging cable 25mm2 --- 70mm2 Orange 1000/1500V Double insulated HV cable electric vehicle shielded cable
-
HDMI CABLE
-
PTC temperature sensing wire, pvc double insulation.
-
UL1285 PVC or silicone rubber spiral heating wire
-
PE outer layer black 2.5mm aluminum core or Galvanized steel wire electric fence underground cable
-
High quality Copper Conductor Flexible PVC RVVP Control Cable
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | YITAILI | Conductor Material: | Copper |
| Insulation Material: | PE | Jacket: | PVC | Application: | computer |
Product Description
Specifications
Center Conductor: 24 AWG BC/CCADielectric: 0.90mm PE
Jacket: 5.2mm PVC
Nom. Thick: 0.55mm
Detailed Info
UTP CAT5e 1) Construction | |||||||||||
Center Conductor: | 24 AWG BC/CCA | ||||||||||
Dielectric: | 0.90mm PE | ||||||||||
Jacket: | 5.20mm PVC | ||||||||||
Nom. Thick | 0.55mm | ||||||||||
2) Characteristics | |||||||||||
| |||||||||||
3) Other Electric Performance | |||||||||||
Frequency (MHz) | Attenuation (dB/100m) | Return loss (dB/100m) | Pair to Pair | |
NEXT (dB/100m) | ELFEXT (dB/100m) | |||
0.77 1 4 8 10 16 20 25 31.25 62.5 100 155 200 300 350 | 1.80 2.00 4.00 5.80 6.50 8.20 9.20 10.40 11.70 17.00 22.00 28.10 32.40 41.00 44.90 | NA 20.00 23.00 24.50 25.00 25.00 25.00 24.30 23.60 21.50 20.10 18.80 18.00 16.80 16.30 | 70.00 68.30 59.30 54.80 53.30 50.30 48.80 47.30 45.90 41.40 38.30 35.50 33.80 32.30 30.20 | 69.00 66.80 54.70 48.70 46.80 42.90 40.70 38.80 36.90 30.80 26.80 22.90 20.70 17.20 15.90 |
Certifications:
Assembly line:
