Diesel engine driven truck refrigeration units
Introduction to truck refrigeration units:
Thermo Kingtec TKT-1000S series units are designed for fresh,frozen&deep frozen applications on the 35-55m3 large sized refrigerated trucks,which are designed for use with totally chlorine-free R404A refrigerant,powered by special clean&silent diesel engine,which provides maximum cab clearance and reduced truck body height on conventional chassis,it has distinct advantages of cooling fastly,excellent heat dissipation,high efficiency&stable performance&easy installation.
Technological data of truck refrigeration units:
| TECHNICAL DATA | |||||
| NO. | Items | Data | |||
| 1 | Product Name | Independent Truck Refrigeration Units -- TKT-1000S | |||
| 2 | Type | Vehicle Engine Driven Compressor | |||
| 3 | Structure | Truck Body, Front Mounted Installation | |||
| 4 | Controller | Digital, In Cab | |||
| 5 | Refrigerant | R404a | |||
| 6 | Air Volume | 2580m3/h | |||
| 7 | Weight | 495KG | |||
| 8 | Application Scope | 35-55m3 | |||
| 9 | Drive Model | Sub Engine | |||
| Standby | |||||
| 10 | Engine | Brand | Perkins | ||
| Model | 403D-07 | ||||
| Displacement | 0.76L | ||||
| Number of cylinder | Water cooling/3 cylinder | ||||
| 11 | Compressor | Model | FK40/390TK | ||
| Displacement | 385 | ||||
| Number of cylinder | 4 | ||||
| 12 | Dimension | Overall | 1825*860*630mm | ||
| Evaporator hole size | 1245*350mm | ||||
| 13 | Cooling Ability | Temp Range | 0℃/+30℃ | -20℃/+30℃ | |
| Engine | 7925w | 5165w | |||
| Standby | 6515w | 4490w | |||
STANDARD COMPONENTS
Clean and silent diesel engine
High efficiency compressor
Automatic cooling by temperature control system
In-cab remote display and control
Secure and dependable protection system
Automatic defrost system
Programmable temperature control
Highly efficient and quick defrost system
Automatic hot gas defrost
Electrical standby outlet box
Compartment front mounted screen
Type condenser
DEFROST
Automatic hot gas defrost
LOW MAINTENANCE RATE
12V Alternator
Dry model air cleaner
Rotary air filter element
Highly efficient tube oil filter
SAFETY PROTECTION DEVICE
Emergency switch management protection
Heat protection
System high pressure protection
System low pressure protection
Liquid injection protection
Engine oil pressure protection
Engine water temperature protection
Engine speed protection
Standby electrical over load protection
Load protection
CLEAN AND SILENT DIESEL ENGINE
original diesel engine
HIGH EFFICIENCY COMPRESSOR
BOCK FK235
ELETRIC MOTOR
Standby options:
230v/3phase 50Hz
400v/3phase 50Hz
415v/3phase 50Hz
230v/3phase 60Hz
240v/3Phase 60Hz
450v/3phase 60Hz
OPERATION CONTROL COMPONENTS
Microcomputer control system
Digital/manual defrost
Digital display
Fahrenheit or Celcius displays of set point temperature,air return temperature,data setting parameters&alert.

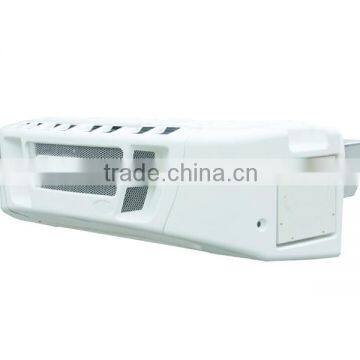

Product Photos of truck refrigeration units:
Engine&Bock Compressor:
Factory Production Lines Photos:

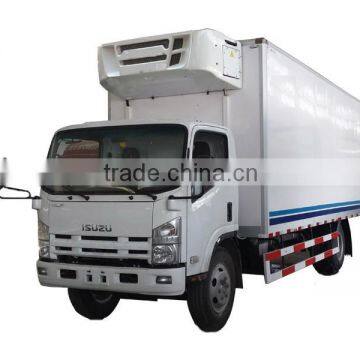

Installing photos:
In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC
company since 1998. We are the most influential manufacturer of bus and refrigerated truck in
China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia,
North America, South America and Africa, earning high reputation and sustainable growth in all
markets.
Pre-sale:
(1) Professional suggestions (model selection ,technical solution , installation training…)
(2) Device model choice (recommend the best product according to vehicle model, temperature
rating, the container volume…)
(3) 24 hours service.
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time.
(2) Quality supervision.
(3) Product acceptance.
(4) Shipping on time.
After-sale:
(1) Installation guide for free.
(2) within the warranty period: spare parts are provide freely.
(3) Technical support the whole using life.
Q:Why choose our product?
A:TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in
China, has devoted to producing reliable, efficient and economical bus air conditioner and
truck refrigeration for the world.
Q:What are your products certified ?
A:All products have CE and ISO9001:2008 identification.
Q:How about installation training?
A:Professional engineers training can be offered.
Q:How long is your products warranty?
A:36 months warranty is available.
Q:How many countries have your products been exported to?
A:Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North
America, South America and Africa, earning high reputation and sustainable growth in all
markets.
