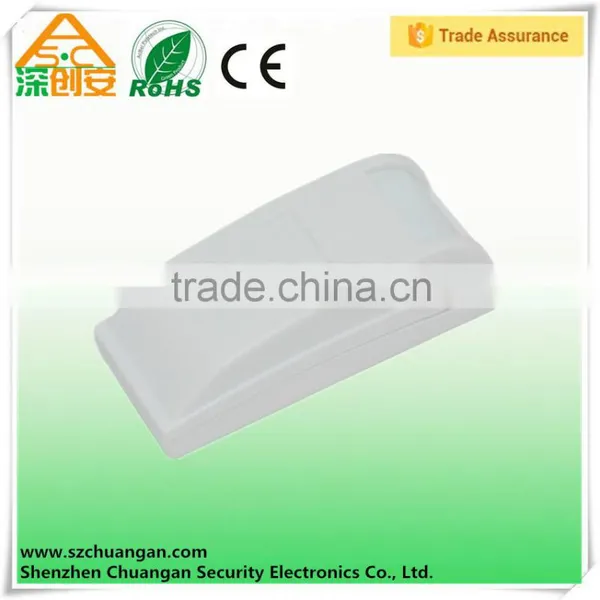

Hot Sale Intelligent Dual Digital Alarm Infrared Detector

   Specification

Model:  PA-461

Detecting method: PIR

Detector angle:  20°

Detection distance:  6m at 25℃

Detecting speed : 0.2~7 m/s

Infrared region: 55 or 24

Emission frequency: 315/433MHz

Sensitivity: Grade 2, adjustable

Working voltage:  9-16VDC

Working current:  8-25mA  (20mA@12VDC)

Working environment:  temperature:-10°C~60°C, humidity:5%~95%RH

Alarm output:  NC (MAX:0.1A/30V)

Temper-proof interface: NC (500mA 100VDC)

Anti-light interference:  >8000LUX

Anti EMI:  >30V/M, (30MHz — 1000MHz)

Sensor:  low noise ,high sensitivity dual beams infrared

Material:  ABS

Installation: Height:1.0~2.8m(wall mounted or ceiling)
