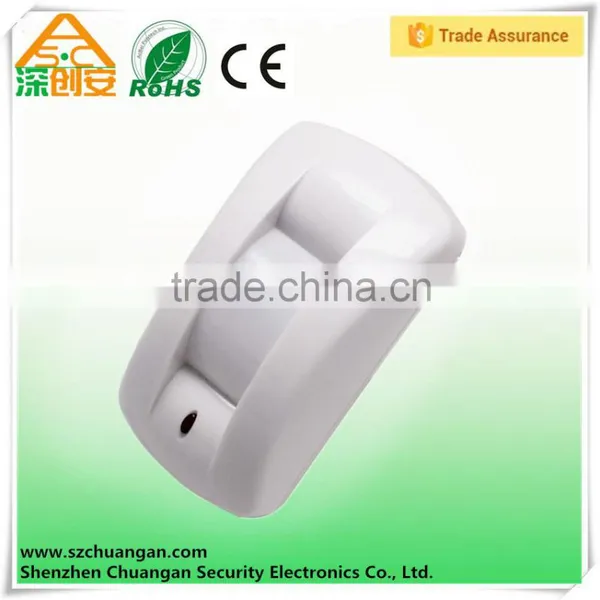

Model: PA-462
Detecting method: PIR
Detector angle: 20°
Detection distance: 6m at 25℃
Detecting speed : 0.2~7 m/s
Infrared region: 55 or 24
Emission frequency: 315/433MHz
Sensitivity: Grade 2, adjustable
Working voltage: 9-16VDC
Working current: 8-25mA (20mA@12VDC)
Working environment: temperature:-10°C~50°C, humidity:5%~95%RH
Alarm output: NC (MAX:0.1A/30V)
Temper-proof interface: NC (500mA 100VDC)
Anti-light interference: >8000LUX
Anti EMI: >30V/M, (30MHz — 1000MHz)
Sensor: low noise ,high sensitivity dual beams infrared
Material: ABS
Installation: Height:1.0~2.8m(wall mounted or ceiling)
Product description and advantage
The use of sophisticated technology to improve signal acquisition performance of the Fresnel lens Lens
Unique design allows dead under windows formed when wall-mounted
Internal control chip operation to suppress false shield small animal activity
Prevent pet 15Kg
Function Characteristics
Wholly artificial intelligence developed DSP chip
Dual automatic temperature compensation and strong anti-jamming capability
Energy analysis of the Doppler effect
Energy accumulation and the perfect combination of dynamic time segmentation
Technical parameters
Supply voltage: DC12V
Quiescent Current: 10mA
Dynamic Current: 20mA
Output: NC
Ambient temperature: -10 °C - +50 °C
Prevention area: 12m
Installation position: height 1.8-2.5m
Frame size: 111 * 60mm
Precautions
Detector installation height must be careful not too high or too low
After installing the probe confirmation before electricity
Fixed after installation to step back to see whether the desired level measured
Use appropriate occasion humidity
Specifications
The use of sophisticated technology to improve signal acquisition performance of the Fresnel lens Lens
Unique design allows dea
Product description and advantage
The use of sophisticated technology to improve signal acquisition performance of the Fresnel lens Lens
Unique design allows dead under windows formed when wall-mounted
Internal control chip operation to suppress false shield small animal activity
Prevent pet 15Kg
|
