Specifications
self healing type capacitor is professional for power system with 50Hz or 60Hz to improve power factor1. Intruduction
.This capacitor is installed at low voltage electrical system in parallel for improving power factor and performance of electrical power
quality.
2. Features
· Polypropylene; metallized selfhealing
· OIL, RESIN, DRY
· Low Loss
· High Reliability
· Internal Safety Device
3. Applications
.Low Voltage Electrical System

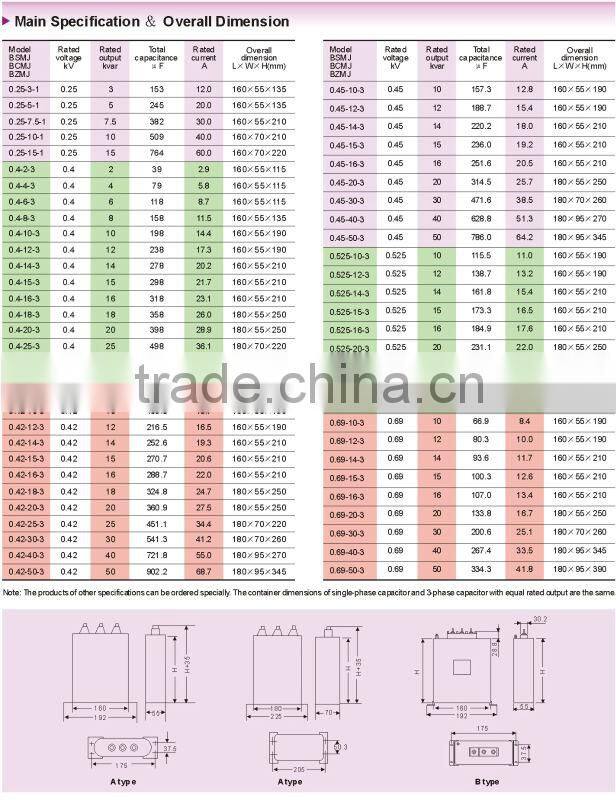

4. Main Spec.
.Atemperature-25+50,humidity ≤85%RH,and altitude lower than 2000m.
.Rated voltage/Rated frequency: 220VAC~660VAC, 60/50Hz.
.Rated output: 1.0~100kvar.
.Capacitance tolerance:-5+5% of rated #118alue.
.Tangent of the loss angle: With the rated frequency and rated voltage, tgδ≤0.1% at 20.
.Withstand voltage: Between terminals 1.75 times rated voltage for 2 seconds, between terminals and container
3kVAC for 10 seconds.
.Max permissible over-voltage:110% rated voltage.
.Max permissible over-current:130% rated current.
.Accord with standard: IEC60831-19
