Home > Products > Air-Conditioner Capacitor > Air conditioner capacitor---CBB65
Air conditioner capacitor---CBB65
- 100000 Piece / Pieces per Month
- NINGBO OR SHANGHAI
- T/T D/P D/A Credit Card
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | JKCN | |
Model Number | CBB65-3A | Type | Other, Polypropylene Film Capacitor, Round | |
Application | Air Conditioner | Package Type | Surface Mount | |
Capacitance | 5-100uf | Rated Voltage | 250-450vac | |
Operating Temperature | -40C~+75C |
Product Description
Specifications
Cbb65 Capacitor1.Very small dissipation factor
2.safety and high reliablity
3.excellent self-healing stability
3.UL ,CE,
Aluminium Capacitor is explode-proof structure,applicable to 50/60Hz start and operation in air conditioner,refrigerator etc. With CE, UL,CQC and RoHS certificates for our capacitor.
Features:
- Capacitance: 5uf ~ 100uf
- Capacitance tolerance: +/-5% to +/-10%
- Working voltage: 250 to 500VAC
- Temperature range: -40 to +70 degrees Celsius
- Lead material: AMP 250 tin-plated brass QCs
- Aluminum can design with safety mechanism device, offering long life and reliable service
- Small size, small loss and self-healing proper
Technical indicators of Air conditioner capacitor---CBB65
1.Rated voltage: 200V,250V,400V,450V,500V
2.Rated frequency:50/60Hz
3.Operation mode:Continuous
4.Tangent of loss angle: ≤ 0.2%
5.Capacitor deviation:±5%,±10%
6.Top allowable overvoltage:1.1Un
7.Top allowable overcurrent:1.3In
8.Insulation:Between terminal:2Un.2seconds;None permanent arcover.Between pole and shell:3KV.2seconds;None arc over.
Application Air conditioner capacitor---CBB65
Purpose: Applicable in starting and operating of monophase asynchronous motor with the frequency between 50 to 60 Hz. Of antiflaming characteristics.
Use for motor running in househeld electric appliances as washing machine, aircon-Ditioner Refrigerater 50-60Hz AC powersupply. Safe protection constrution.
We could design and manufacture as customer's specified specs and dimensions. We can products with any voltage,capacity,outlet line structure and installing requirements.

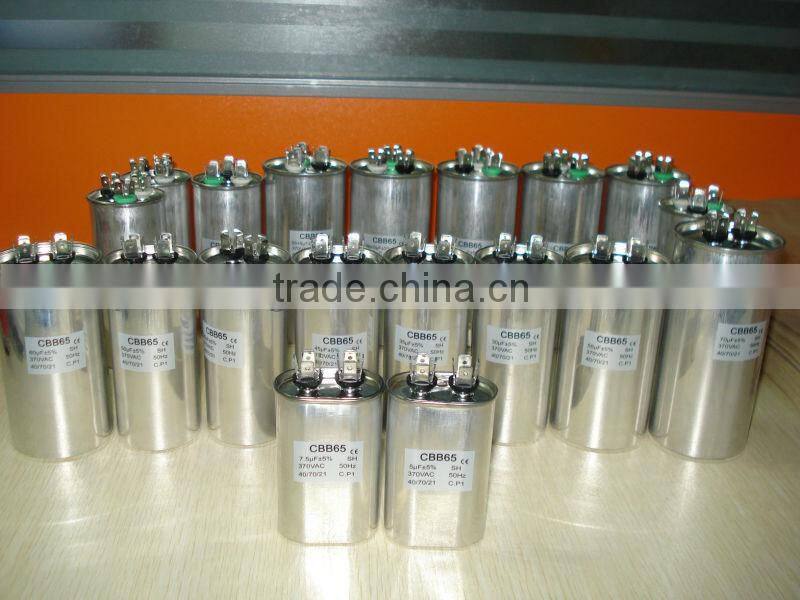

Air conditioner capacitor---CBB65
Air conditioner capacitor---CBB65
Air conditioner capacitor---CBB65
Air conditioner capacitor---CBB65
Air conditioner capacitor---CBB65
We are the special manufacture over 20 years! Ensure you the quality of products!
Established in 1993,Sino-U.S Joint Venture Zhejiang Jiukang Electric Co. Ltd. is a joint venture enterprise, with factory building of more than 16800 sq.m, employing 20 senior engineers. The enterprise was certified ISO9001 International quality system, ISO14001 international environmental system, and the products have attained the National compulsory CCC and, CQC certificates, and Euro CE certificate, Environmental protected RoHS certification, American UL certified"Jiukang" was appraised as China Famous Trademark in 2008.
How do you provide a pre-sale service?
1.We will introduce our company , all kinds of products ,quality and all the inquires to customers.
2.Customers have any problems about the productewe will ask the best engineering and technical staff
3.Offer small motor capacitor sample by free, others sample have to be paid by customers , and all the freight charge bear by customers.
How do you provide a sale service?
1. Our sales department stuff will contact with customers and ask about whether have received the goods ,and the products quality ,transportation ,package or others whether can meet customer's requirements, to make sure doing better on next orders.2.We have our own forwarder which has been cooperated for over 10 years and familiar with our company and products ,if customer need ,we can help you ship the goods with most competitive freight charge and shortest delivery time .
How do you provide after- sale service ?
Our products warranty is one year ,If our products have any quality problems , we are responsible for return ,replacement ,repair until customers are satisfied .we will continue to provide best service after the warranty period.
Maintain customer interest
Have professional qualifications and experienced staff
Reduce the risk of delay of commissioning
Reduce the risk of premature aging failure
Can provide expert advice
Ensure smooth system start-up, operation easy
Our commitment
If you buy products in the warranty period, JKCN electric commitment in JKCN electric within the scope of the fault product professional technical support.
