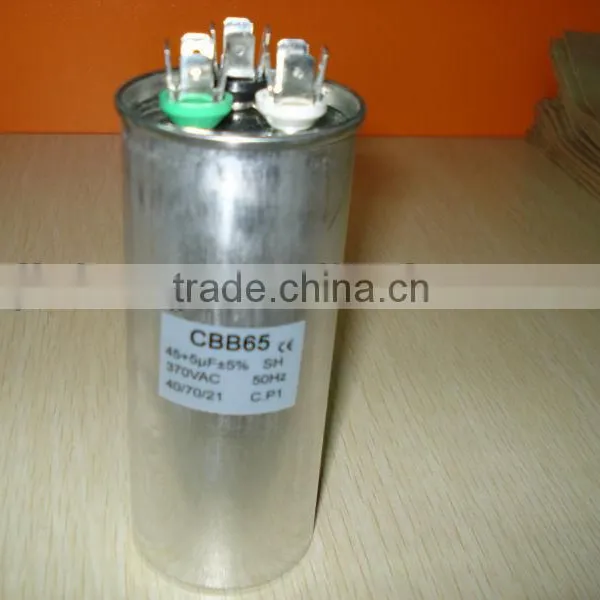

Help Center45+5uf Aluminum Case Motor Run Capacitor Especially for Air Conditioner
Related Products
-
30+1.5uf Aluminum Case Motor Run Capacitor Especially for Air ConditionerNegotiableMOQ: 1000 Pieces -
370V 7.5uf Oval Type Aluminum Case Motor Run CapacitorUS$ 0.1 - 2MOQ: 1000 Pieces
-
Anti-explosion Aluminum Case Motor CapacitorNegotiableMOQ: 1000 Pieces
-
MKP Metallized Polypropylene Film AC Power CapacitorNegotiableMOQ: 1000 Pieces
-
CBB65 Air Conditiioner CapacitorNegotiableMOQ: 1000 Pieces
Specifications
Aluminium capacitor is explode-proof structure,applicable to 50/60Hz start and operation in air conditioner,refrigerator etc.
Specifications
1.Capacitance stability, long life
2.Explode-proof structure
3.High insulation resistance
4.High quality,good price
Product Character:
This product uses thickened metalized polypropylene film as a dielectric, coiled by high speed winding machine, encapsulated with Aluminum body. It is treated by using refined castor oil as impregnant in the high temperature and vacuum environment to make the capacitor more stable with long working life. Mean while based on the principle of safety and proof-explosion,this kind of capacitor has been used the second generation mechanical explosion proof design to strengthen the reliability.
Technical Data
Climate type |
40/70/21 |
Capacitance tolerance |
+/-5% |
Test voltage |
T-T: 2Un T: 2s T-C: 2Un+1000V≥2000V T: 10s |
Insulation resistance |
≥3000MΩ |
Loss tangent |
tgδ ≤0.002(50/100Hz ) |
Dimensions(mm)
|
Capacitance (µF) |
250V- 450V |
D×H(mm) | |
2 |
40×70 |
3 | |
4 | |
5 | |
6 | |
7 | |
8 | |
10 | |
12 | |
15 |
45*90 |
20 |
45*90 |
25 |
45*90 |
30 |
45×90 |
35 |
50×110 |
40 |
50×110 |
45 |
50×110 |
50 |
50×110 |
55 |
60×110 |
60 |
60*110 |
70 |
60*110 |
80 |
60×150 |
100 |
We could design and manufacture as customer's specified specs and dimensions. We can products with any
voltage,capacity,outlet line structure and installing requirements.
Application:
This capacitor widely used for air-conditioners ,refrigerators,generators,illuminating lamps etc.
We accept OEM.
