Copying Attachment
- 25 Set / Sets per Month
- NHAVA SHEVA
- T/T
Product Details
Condition: | New | Type: | Other | CNC or Not: | Normal |
Automatic Grade: | Semi-Automatic | Place of Origin: | Maharashtra, India | Brand Name: | GAMUT |
Model Number: | 5 Model |
Product Description

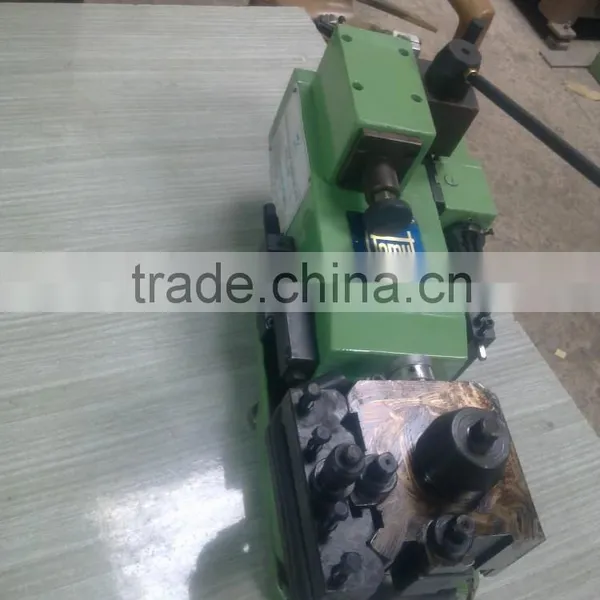

GAMUT Hydraulic Lathe Tracer for Copy Turning Face copying and Copy Boring. GAMUT LATHE TRACER are made by Graded Casting and have been Robustly constructed to take maximum cut with Hardend Tool Post and very sensitive and precise Copy-Valve to render trouble free longer service. GAMUT TRACER can be mounted on Rear or Front of the Lathe Machine and can be operated by semi skilled person. Inspection time is drastically reduced and Production increased by many many times with in accuracy of ‡0.025mm when used on good Lathe.
FEATURES
- In-built Lubrication system for Tracing slide.
- Hardened Tool Post with Quick Change Tool Holder.
- Automatic Finish Cut system from 0-1.5mm.
- 6-Station Servo actuated Turret for Multicut operation (Optional item at extra cost).
- Forward and Retraction of slide and finish cut operation done manually by single operating handle. Electrical Push Button Remote control at extra cost.
- Master carrier for Round master having fine tapper adjustment. Flat Template Holder optional at extra cost.
- Power pack having pump, manifold, filters, oil level, pressure gauge etc
MODEL | 5660 | 7090 | 7014 | 1014 | 1020 |
STROKE OF TRACING SLIDE MM | 60 | 90 | 140 | 140 | 200 |
MIN CENTER HEIGHT FROM TOP OF CROSS SLIDE MM | 90 | 100 | 100 | 140 | 140 |
MAX DIA OF ROUND MASTER | 100 | 100 | 100 | 200 | 200 |
MAX LENGTH OF RAIL | 1000 | 1000 | 1000 | 2000 | 2000 |
HYDRAULIC PRESSURE KG/CM² | 18 | 18 | 18 | 14 | 14 |
PUMP OUTPUT LPM | 9 | 9 | 9 | 14 | 14 |
THRUST IN KG | 190 | 300 | 300 | 470 | 470 |
POWER PACK HP | 1 | 1 | 1 | 1.5 | 1.5 |
TOOL SHANK | 20X20 | 25X25 | 25X25 | 32X32 | 32X32 |
