JET100L Self Priming JET High Pressure Water Pump
US$ 25 - 50
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM
Model Number:
JET-100L
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OEM 1HP CPM Centrifugal Water PumpUS$ 25 - 65MOQ: 100 Pieces -
0.5HP~3HP High Flow Rate PX Series Centrifugal PumpUS$ 35 - 100MOQ: 100 Pieces
-
1HP~4HP High Duty DTM CM Series Centrifugal PumpNegotiableMOQ: 100 Pieces
-
500W~750W AUTOJTP With 24L Tank Booster Stainless Water PumpUS$ 38 - 58MOQ: 100 Pieces
-
3HP-5HP DS Aluminum Body Agriculture Centrifugal PumpUS$ 60 - 110MOQ: 100 Pieces
Place of Origin
Fujian, China
Brand Name
OEM
Model Number
JET-100L
Theory
Jet Pump
Structure
Gear Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Clean Water
Pressure
Low Pressure
Application
Other, Clean Water

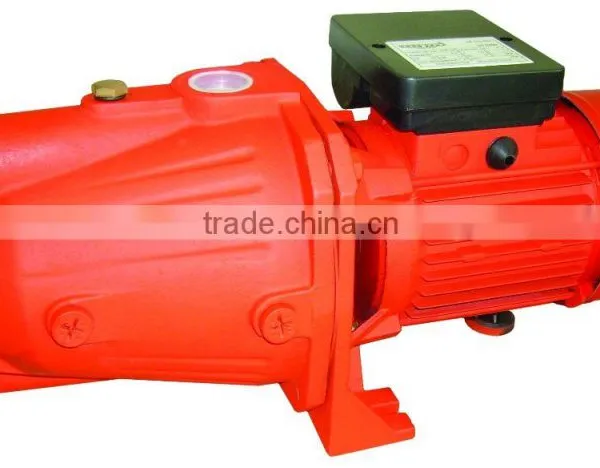

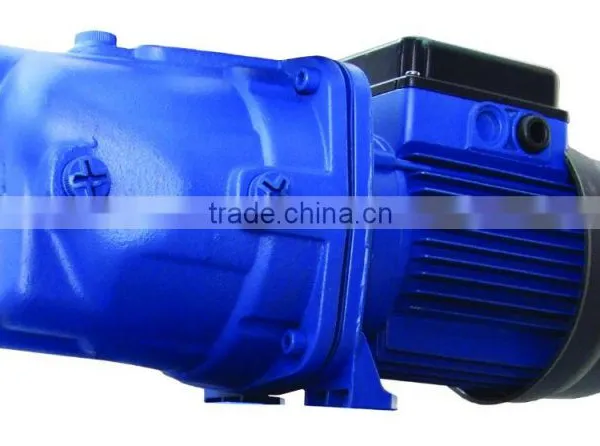

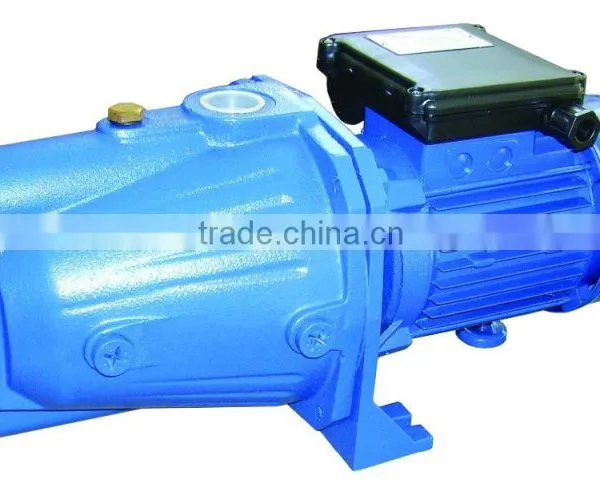

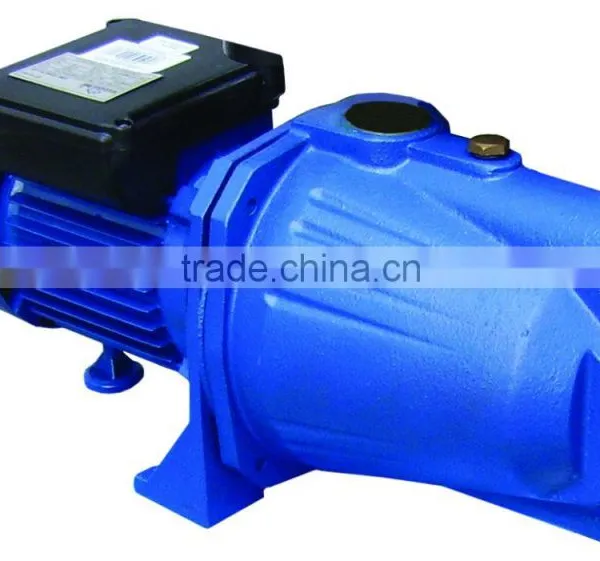

JET100L Self Priming JET High Pressure Water Pump
Pump body: Cast Iron
Impeller: Brass
Motor: Closed,extremely ventilated
E-Jector Unit: Techno Polymer (approved For Drinking Water)
Insulation class: Class B
Protection class: IP44
Mechanical seal: Stainless steel/Carbon-ceramic
Shaft: 45# Steel/Stainless steel
Thermal protector(if required)
INSTALLATION AND APPLICATIONS:
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to pump components.
They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-size tanks, watering gardens,etc.
These pumps should be installed in a covered area. protected against the weather.
They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-size tanks, watering gardens,etc.
These pumps should be installed in a covered area. protected against the weather.
PERFORMANCE:
The wide range of pump in the JET-L series satisfied the most varied requirements with features such as:
- high heads with respect to power required.
-flat operating and power absorption curves, giving moderate curve variations with respect to large variations in delivery demand.
-high tolerance of the presence of entrained air in the fluid to be pumped.
-suction capacity up to 9 meters
- high heads with respect to power required.
-flat operating and power absorption curves, giving moderate curve variations with respect to large variations in delivery demand.
-high tolerance of the presence of entrained air in the fluid to be pumped.
-suction capacity up to 9 meters
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| W | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| JET-60L | 460 | 0.6 | 55 | 35 | 9 | 2850 | 1"*1" | 15.3 | 435*188*200 |
| JET-80L | 600 | 0.8 | 60 | 40 | 1"*1" | 16 | 435*188*200 | ||
| JET-100L | 750 | 1 | 60 | 45 | 1"*1" | 16.7 | 435*188*200 | ||
