3HP-5HP DS Aluminum Body Agriculture Centrifugal Pump
US$ 60 - 110
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM
Model Number:
PX
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Clean Water Pump 1.5KW-3KW With High HeadUS$ 50 - 70MOQ: 100 Pieces -
3HP-5HP DS Aluminum Centrifugal PumpUS$ 60 - 110MOQ: 100 Pieces
-
600W Plastic Pump Body Clean Water Garden PumpUS$ 38 - 58MOQ: 100 Pieces
-
Stainless Steel Dirty Water Garden Submersible PumpUS$ 18 - 35MOQ: 100 Pieces
-
Plastic Dirty Water Garden Submersible PumpUS$ 18 - 35MOQ: 100 Pieces
Place of Origin
Fujian, China
Brand Name
OEM
Model Number
PX
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Clean water
Pressure
Low Pressure
Application
Other, Clean water

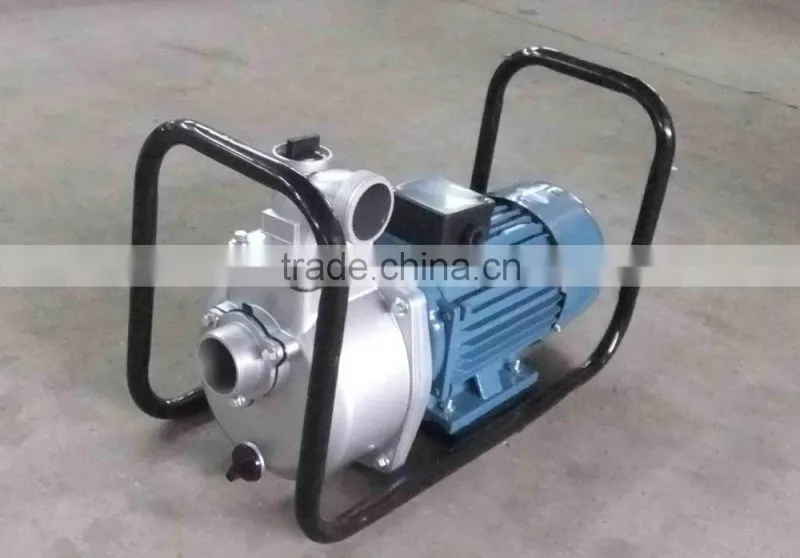

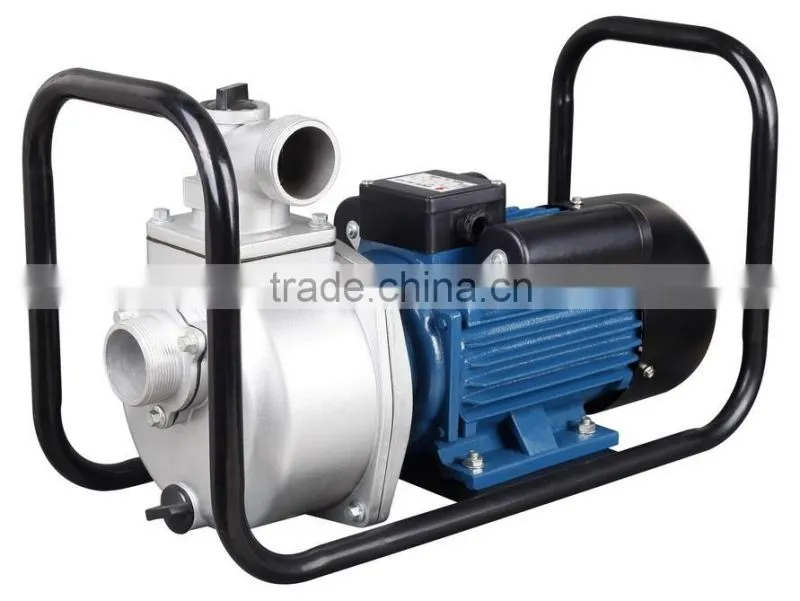

3HP-5HP DS Aluminum body agriculture Centrifugal pump
1. Working conditions:
Max temperature of fluid up to: 80℃
Max ambient temperature up to: 40℃
Max Pressure: 10bar
2. Structural characteristics:
Pump casing: Aluminum body
Impeller: Cast Iron
Motor housing: Cast iron
Mechanical seal: Stainless steel(graphite to ceramic)
Shaft: 45# steel or stainless iron
Bearing: SKF/NTN/NSK/China
Insulation class: B and F
Protection class: IP44 and IP54
3.INSTALLATION AND APPLICATIONS
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components.
They are extremely reliable, simple to use, quiet and virtually maintenance-free, finding many uses in domestic and civil applications, and in particular the automatic distribution of water from small and medium-size surge tanks, transferring water,Watering gardens, etc.
These pumps should be installed in a covered area. protected against the weather.
These pumps should be installed in a covered area. protected against the weather.
| PX Series Centrifugal Pump | |||||||||
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| KW | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| DS50 | 2.2 | 3 | 400 | 15 | 9 | 2850 | 2"*2" | 27 | 560*270*350 |
| DS50T | 2.2 | 3 | 420 | 17 | 2"*2" | 27 | 560*270*350 | ||
| DS80 | 4 | 5 | 750 | 18 | 3"*3" | 40 | 560*285*420 | ||
| DS80T | 4 | 5 | 780 | 20 | 3"*3" | 40 | 560*285*420 | ||
