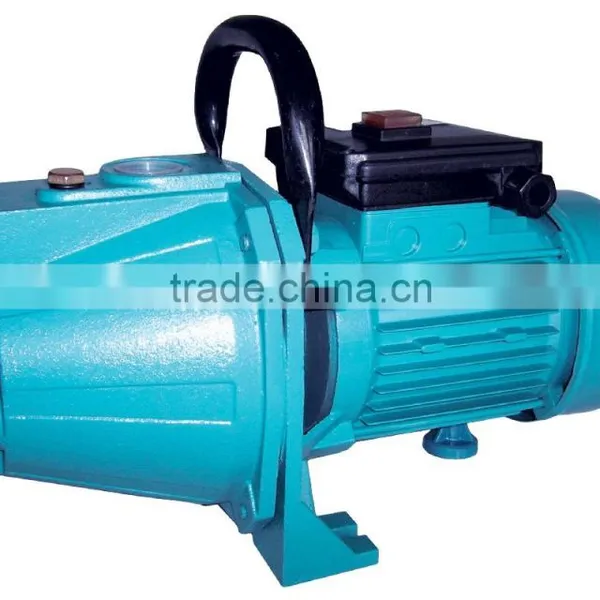

PPO Impeller 370W JET40 Cast Iron Self Priming JET Garden Pump
US$ 25 - 50
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM
Model Number:
JET40
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
370W/500W 100% Copper Wire QB60 Peripheral PumpUS$ 10 - 30MOQ: 500 Pieces -
500W~1500W Stainless Steel AUTOJET With 24L Tank Booster Water PumpUS$ 38 - 58MOQ: 100 Pieces
-
24L Tank Automatic Booster Water PumpUS$ 38 - 58MOQ: 100 Pieces
-
AUTOJET With 24L Tank Booster Water PumpUS$ 38 - 58MOQ: 100 Pieces
-
AUTOJET100L With 19L Tank Booster Water PumpUS$ 38 - 58MOQ: 100 Pieces
Place of Origin
Fujian, China
Brand Name
OEM
Model Number
JET40
Theory
Jet Pump
Structure
Gear Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Clean Water
Pressure
Low Pressure
Application
Other, Clean Water
PPO Impeller 370W JET40 Cast Iron Self Priming JET Garden Pump
1 .Working conditions:
Max temperature of fluid up to: 50℃
Max ambient temperature up to: 40℃
Max Pressure: 8bar
2. Structural characteristics:
Pump casing: Cast Iron
Impeller: ABS/Brass/Noryl
Diffuser: Noryl/PPO/ABS/Cast iron
Motor Housing: Aluminum
Pump-motor adaptor: Aluminum/Cast iron
Mechanical seal: Stainless steel(graphite to ceramic)
Shaft: 45# steel or stainless steel
Bearing: SKF/NTN/NSK/China
Insulation class: B and F
Protection class: IP44 and IP54
INSTALLATION AND APPLICATIONS:
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to pump components.
They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-size tanks, watering gardens,etc.
These pumps should be installed in a covered area. protected against the weather.
They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-size tanks, watering gardens,etc.
These pumps should be installed in a covered area. protected against the weather.
PERPORMANCE:
The wide range of pump in the JET-M series satisfied the most varied requirements with features such as:
- high heads with respect to power required.
-flat operating and power absorption curves, giving moderate curve variations with respect to large variations in delivery demand.
-high tolerance of the presence of entrained air in the fluid to be pumped.
-suction capacity up to 9 meters
- high heads with respect to power required.
-flat operating and power absorption curves, giving moderate curve variations with respect to large variations in delivery demand.
-high tolerance of the presence of entrained air in the fluid to be pumped.
-suction capacity up to 9 meters
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| W | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| JET-40 | 460 | 0.6 | 40 | 30 | 9 | 2850 | 1"*1" | 11.5 | 375*188*200 |
| JET-60S | 460 | 0.6 | 45 | 35 | 1"*1" | 12.8 | 375*188*200 | ||
| JET-80S | 600 | 0.8 | 50 | 40 | 1"*1" | 13.5 | 375*188*200 | ||
| JET-100S | 750 | 1 | 50 | 45 | 1"*1" | 14.2 | 375*188*200 | ||
Detailed Pictures:
