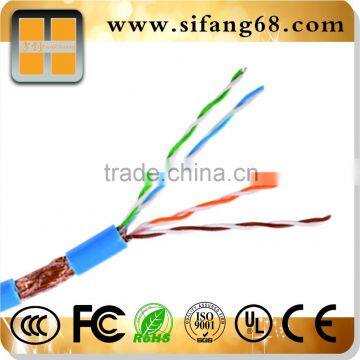

Hot Sale Outdoor SFTP Cat5E Cable Computer Cable
SFTP Cat5e Cable overview
1) Standards:
a) International ISO/IEC 11801
b) USA ANSI/TIA/EIA-568B.2-1
2) Structure:
0.511mm solid bare copper (24AWG copper), PE insulation,
4 pairs, aluminum foil shield+braiding shield(48/64/96/112x0.12mm or 0.15mm or 0.16mm, braid material, AL-MG, CCA, CCS, copper or tinned copper for braid), FR/PVC or LSOH jacket
3) Frequency: 155MHz
4) Conforms to UL requirements
5) Transmission velocity: 200Mbps
6) Applications: 100 base T, giga-Ethenet, ATM155Mbps, and multimedia
networks

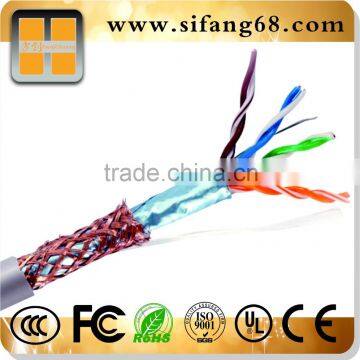

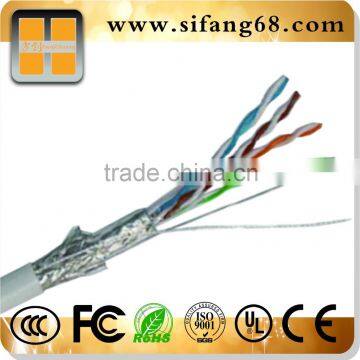

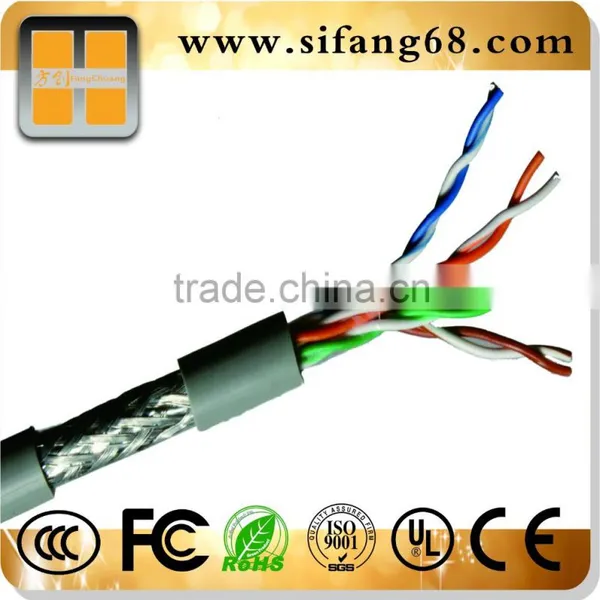

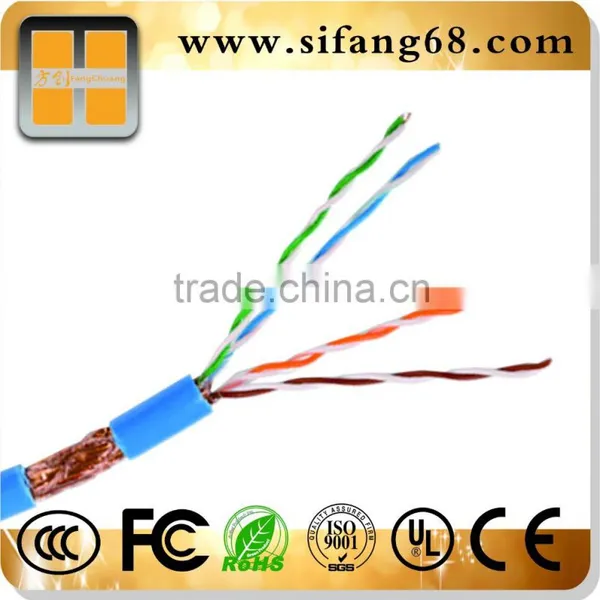

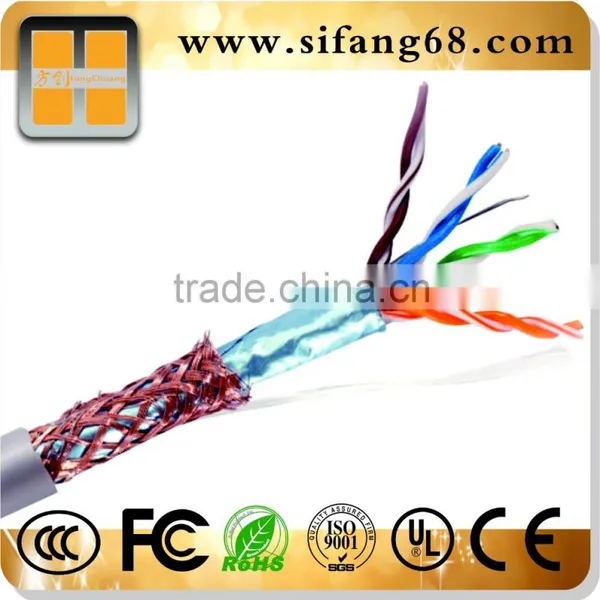

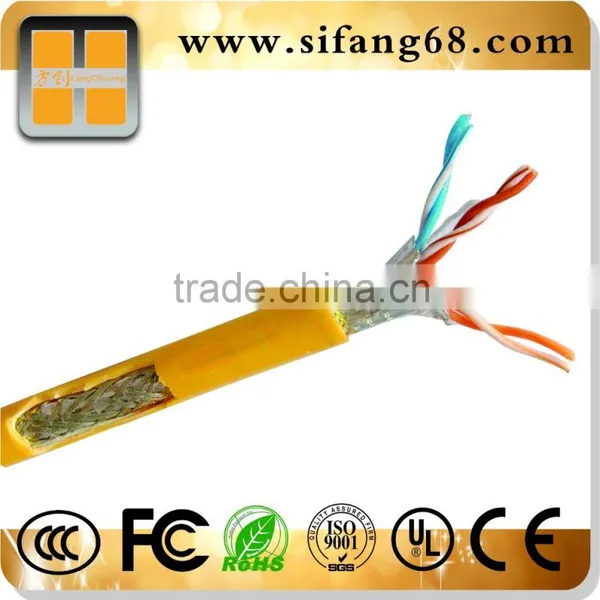

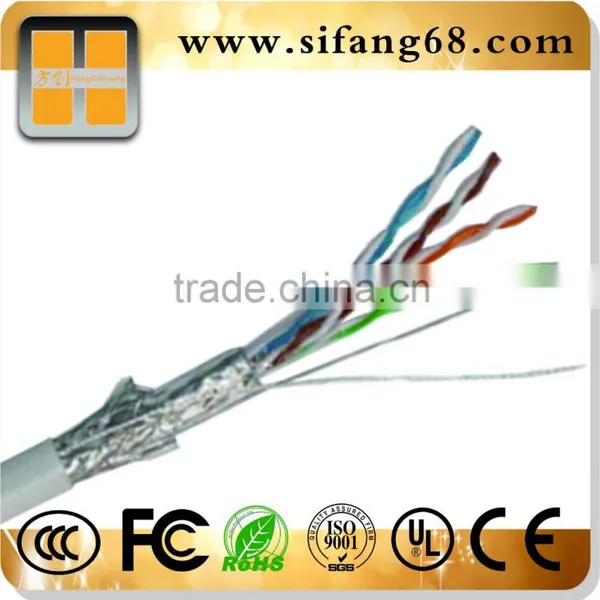

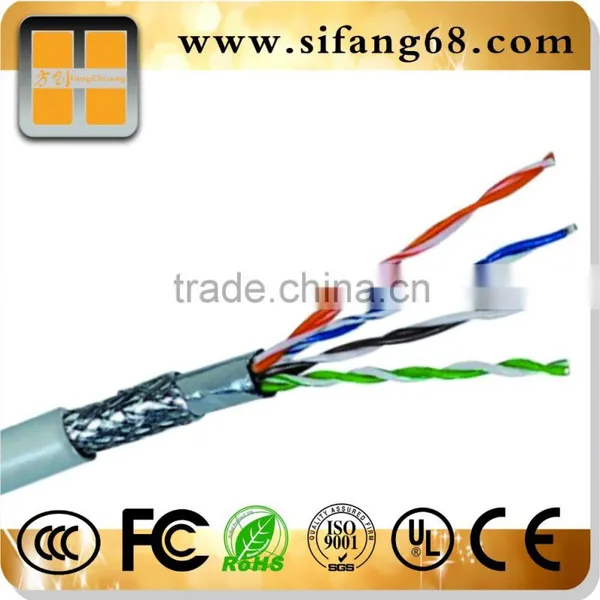

SFTP Cat5e Cable Structure
Cat5e STP Cable Technical Performance(100m):
|
RL ≥dB |
Attenuation ≤dB/100m |
NEXT ≥dB/100m |
PHASE DELAY≤ ns |
ELFEXT ≥dB/100m |
PS NEXT ≥dB/100m |
PS ELFEXT ≥dB/100m |
1 |
20.0 |
2.0 |
65.3 |
570 |
63.8 |
62.3 |
60.8 |
4 |
23.0 |
4.1 |
56.3 |
552 |
51.7 |
53.3 |
48.8 |
8 |
24.5 |
5.8 |
51.8 |
546.73 |
45.7 |
48.8 |
42.7 |
10 |
25.0 |
6.5 |
50.3 |
545.38 |
43.8 |
47.3 |
40.8 |
16 |
25.0 |
8.2 |
47.3 |
543 |
39.7 |
44.2 |
36.7 |
20 |
25.0 |
9.3 |
48.5 |
542.05 |
37.7 |
42.8 |
34.7 |
25 |
24.3 |
10.4 |
44.3 |
541.2 |
35.8 |
41.3 |
32.8 |
31.25 |
23.6 |
11.6 |
42.9 |
540.44 |
33.9 |
39.9 |
30.9 |
62.5 |
21.5 |
17.0 |
38.4 |
538.55 |
27.8 |
35.4 |
24.8 |
100 |
20.1 |
22.0 |
35.3 |
537.6 |
23.8 |
32.3 |
20.8 |

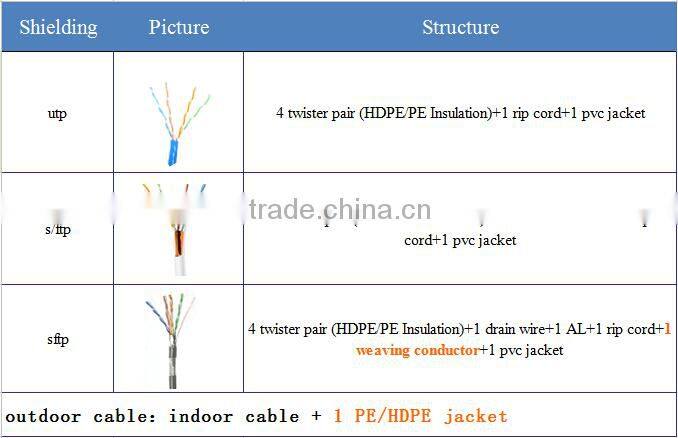

Cat5e cable type:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cat5e FTP |
|
|
Aluminum Foil |
Yes |
6.0mm JacketROHS,UV,LSZH,UL,Reach |

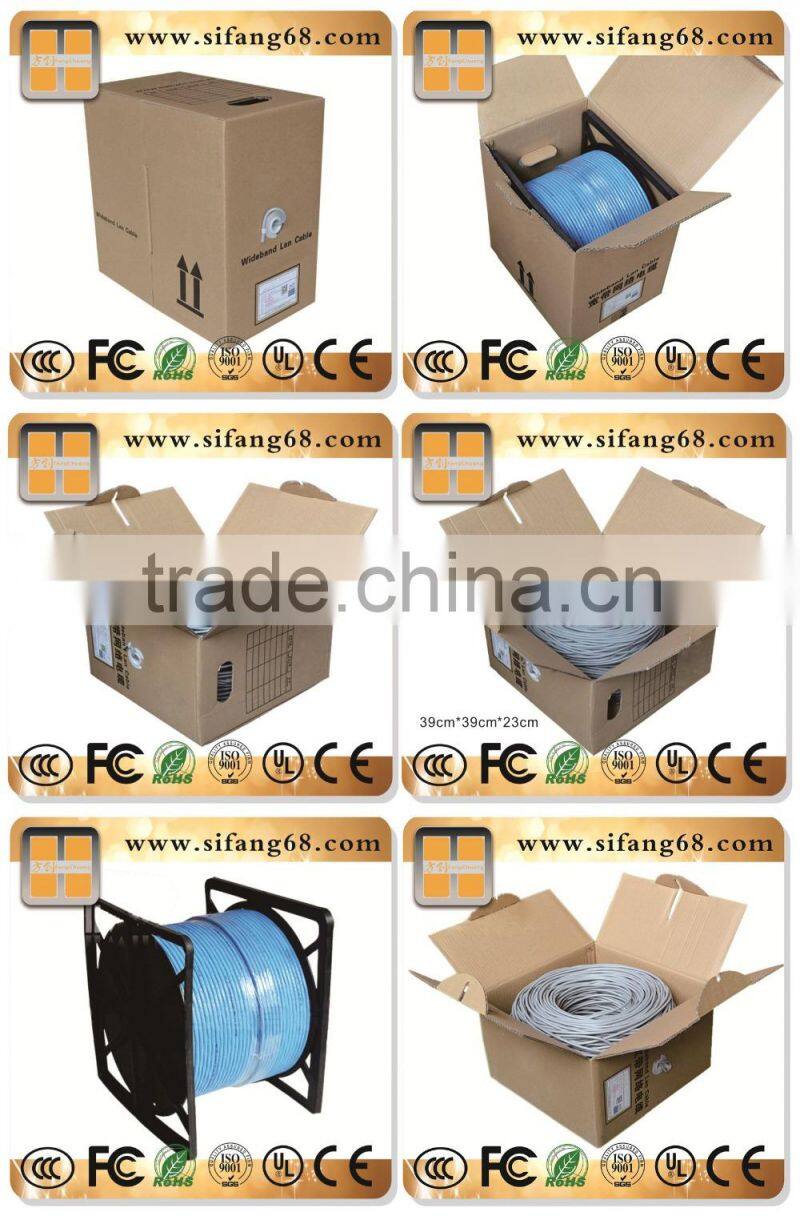

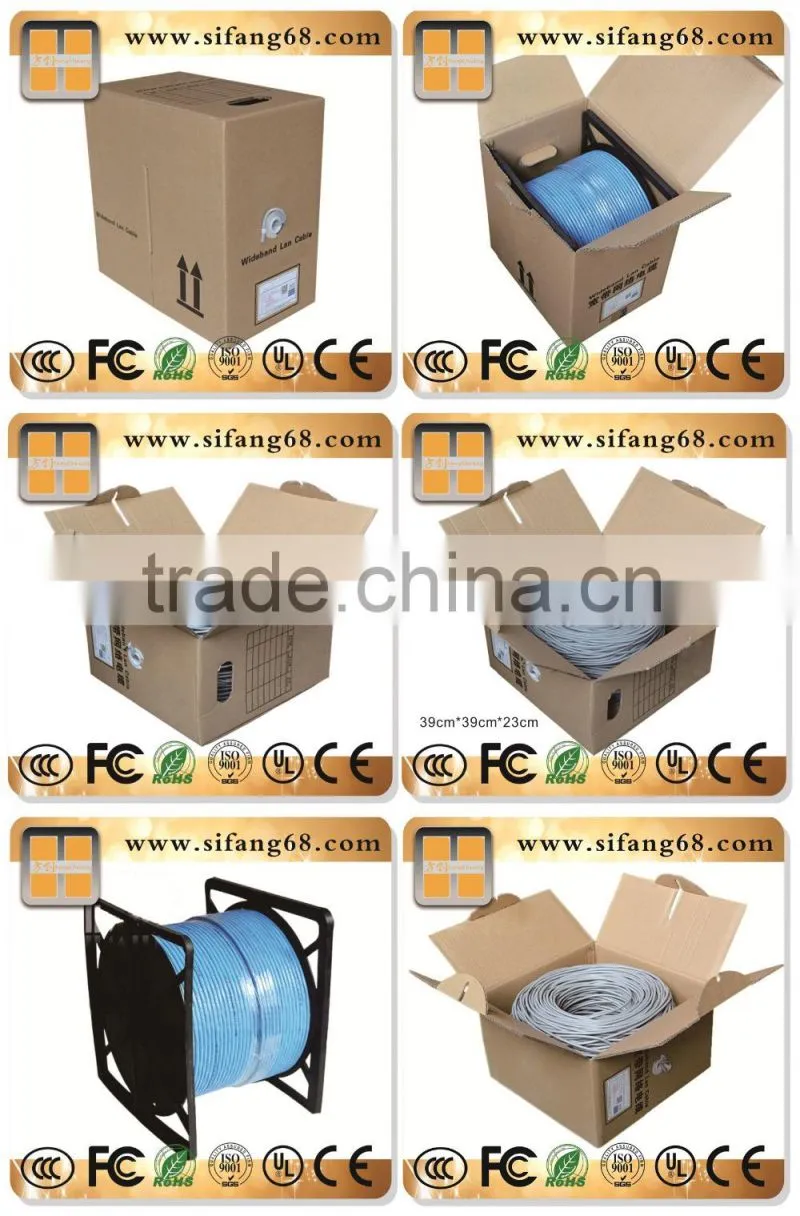

Cat5e cable inner packed in coils or drums, outer packed in Carton box or pull out box or pallet,305m/box or 500m/drum; or can be customized as client's requirements.
| Goods Name | Packing Type | Pack (Cm) | Packing | Dimension(Cm) | Unit.CBM | Qty/Container | |||||
| Gift Box | Carton | Gift Box | Carton | L | W | H | 20GP | 40HQ | |||
| UTP CAT5E | Gift Box | 19*35*35 | 41*37*36 | 305M/Roll | 2Rolls/Ctn | 41 | 36 | 37 | 0.055 | 1000 | 2450 |
| FTP/SFTP CAT5E | 21*35*35 | 45*37*37 | 305M/Roll | 2Rolls/Ctn | 45 | 37 | 37 | 0.062 | 900 | 2200 | |
| CAT5E OUTDOOR | Wooden Reel | 32*32*22.5 | 66*35*24 | 305m/Reel | 2ReelS/Ctn | 66 | 35 | 24 | 0.055 | 1000 | 2400 |

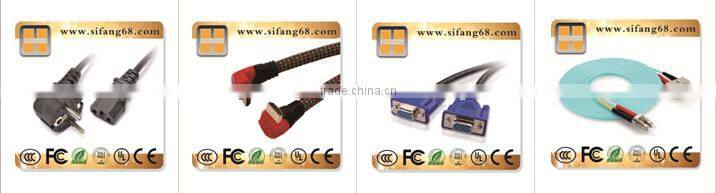

| AC Power Cable | HDMI Cable | VGA Cable | Fible Optic Patch Cord |

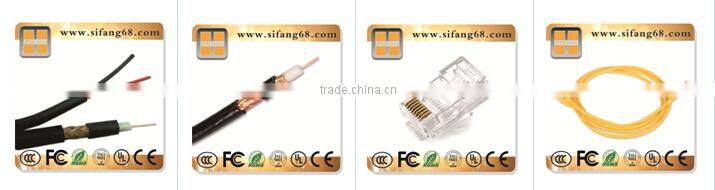

| Coaxial cable + Power | Coaxial Cable | Registered Jack | Network Patch Cord |

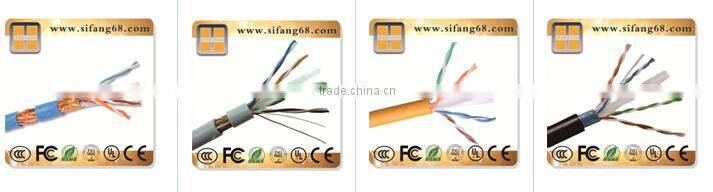

| FTP Cat6 Cable | SFTP Cat6 Cable | UTP Cat6 Cable | Outdoor Cat6 Cable |

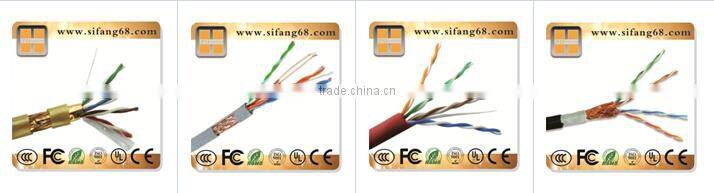

| FTP Cat5e Cable | SFTP Cat5e Cable | UTP Cat5e Cable | Outdoor Cat5e Cable |
Shenzhen sifang lianchuang technology co., LTD. Is located in shenzhen futian district financial business circle with beautiful environment, is a collection research and development, production, sales for the integration of weak current cables manufacturer, specializing in low voltage cables (super five types of cables, six types of cable, HDMI hd line, USB cable, etc.) production and sales as one, with independent brand "party a".

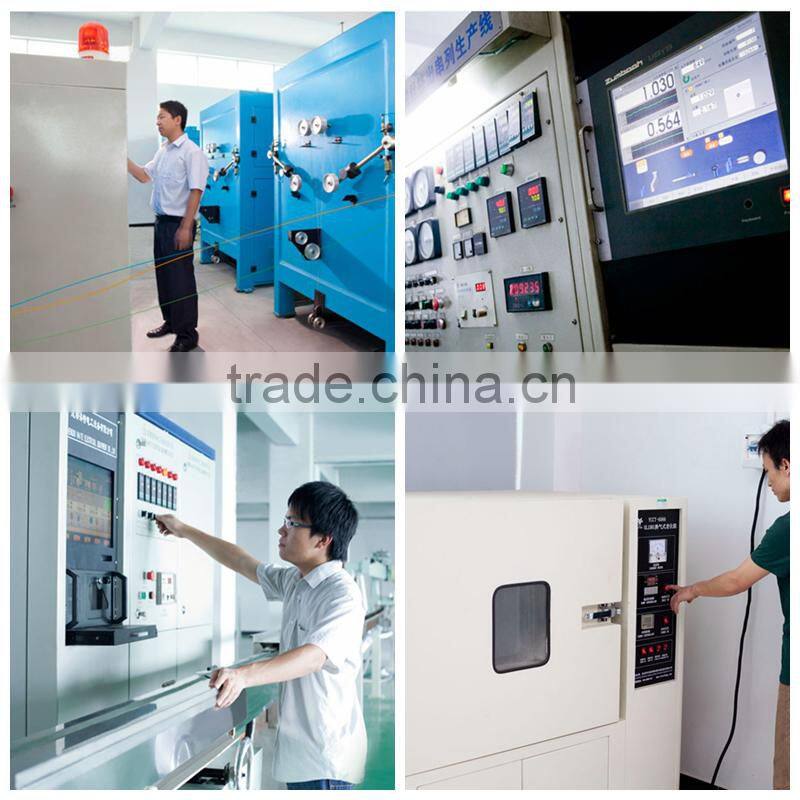

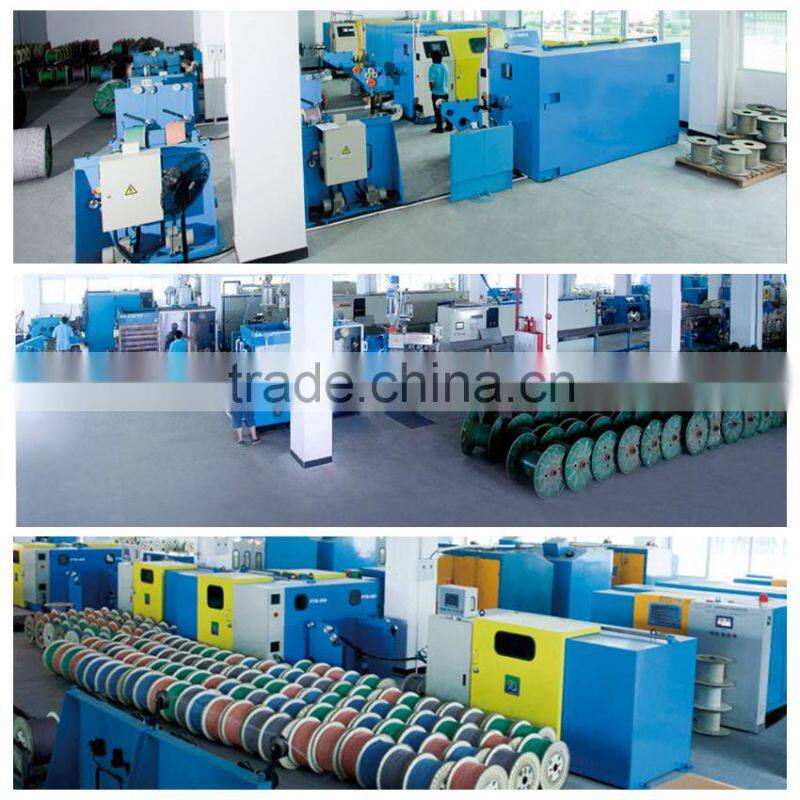

Company has imported many sets of imported equipment, Germany USES the international advanced technology, to provide customers with services and broadband network such as voice, data, video and multimedia communication integrated information service, is now the most advanced technology in guangdong province, production capacity, one of the largest and scalability of the strongest cable manufacturers.
- What kind of cable do you produce?
We specialize in producing coaxial cable, telephone cable, lan cable and so on.
- What is your delivery time?
Usually, our delivery time is 15 days after received deposit.
It is base on the quantity of the order.
- What is your payment term?
Usually, we accept T/T. Other payment, we can negotiate with customers.
- Can you customize cables basing on customer's sample?
Yes, of course
- What is your minimum order quantity?
More than 1 box for EXW as your samples,
but the quantity for OEM packages should be 500 boxes or more.
- Can I get some discount if we place a bulk order?
Yes, of course you can, we used to give some discount to our long time cooperative partner.
